Constructive CAD CE • Modeling in AutoCAD

  BMEEPAG0249 • elective course • 2012-13-2

André FIGUEIRA


Drawing file

Simple Model

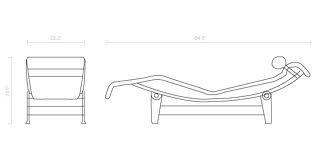

This model accounts for Le Corbursier chair, designed by himself. My 3D assemble was composed by 5 material layers: the structure - both the mate and shining metal surfaces -, the strips, the matress with cow pattern and the leather pillow.

Pictures

[PICTURE]  [PICTURE]  [PICTURE]  [PICTURE]  [PICTURE]  [PICTURE]

Drawing file

Complex Model

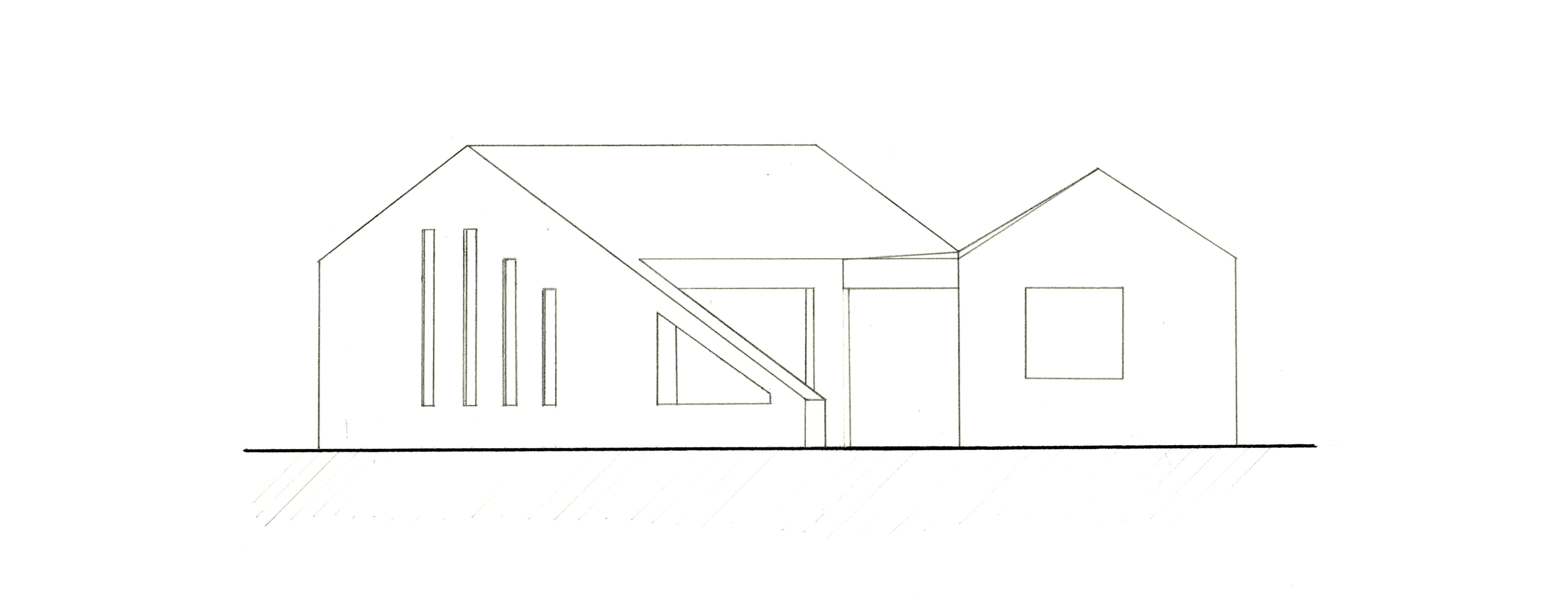

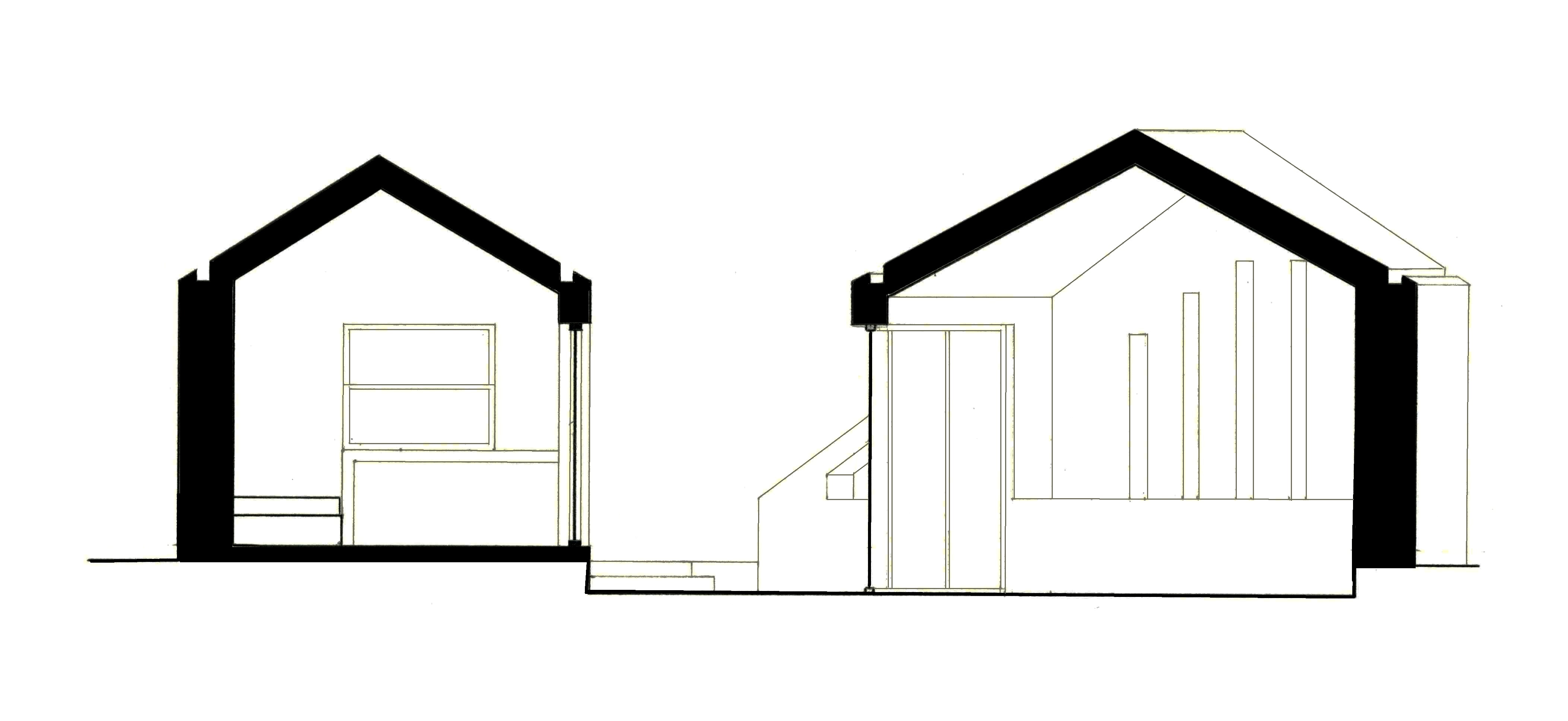

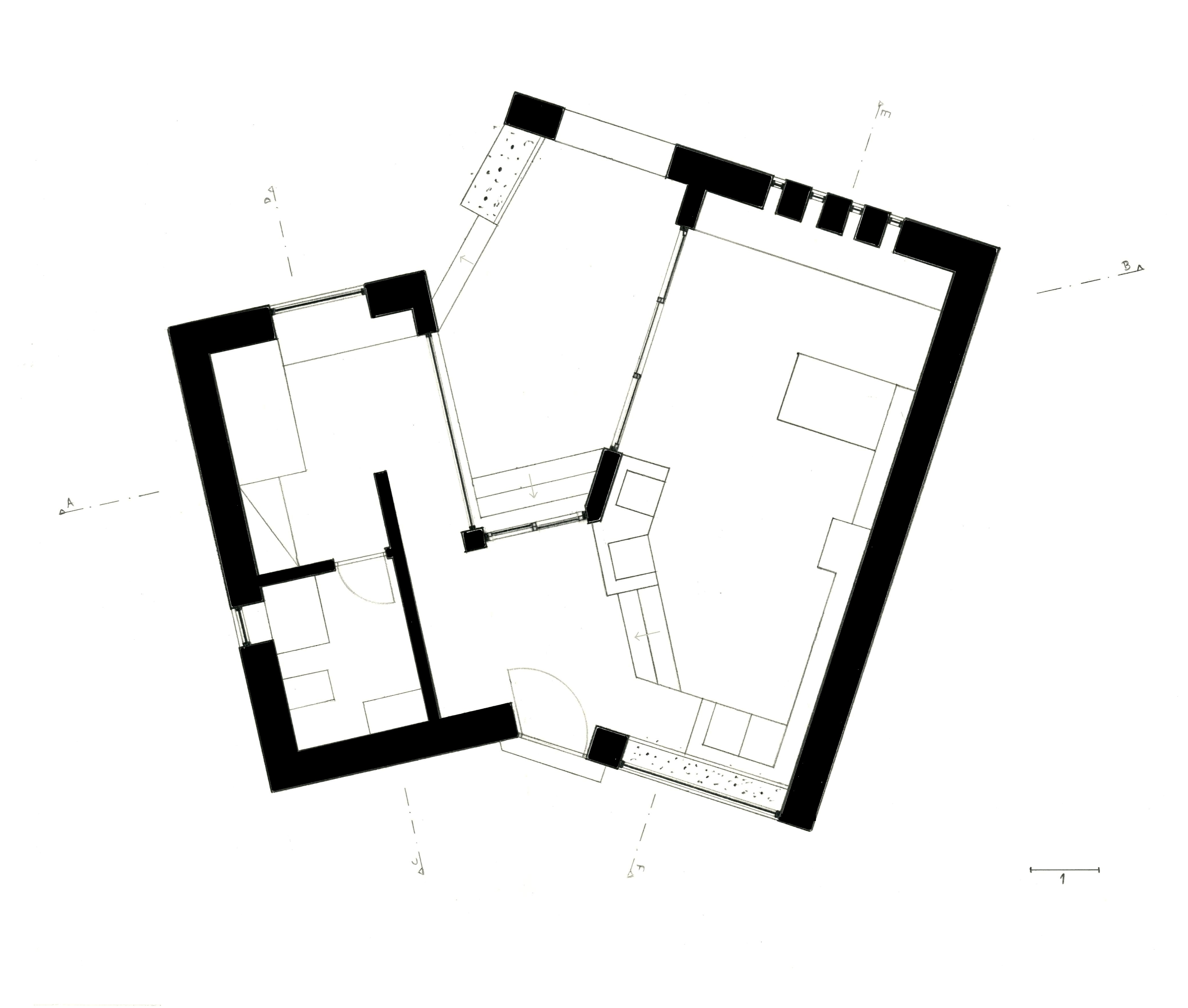

This model is representative of my first year's project - second semester. It is a patio-house in the countryside, thought for a temporary period of time to a reasearcher in the local University.

Pictures

[PICTURE]  [PICTURE]  [PICTURE]  [PICTURE]  [PICTURE]  [PICTURE]  [PICTURE]  [PICTURE]  [PICTURE]
