Constructive CAD CE • Modeling in AutoCAD

  BMEEPAG0249elective course2013-14-1

Nágila Ramos


[PICTURE]

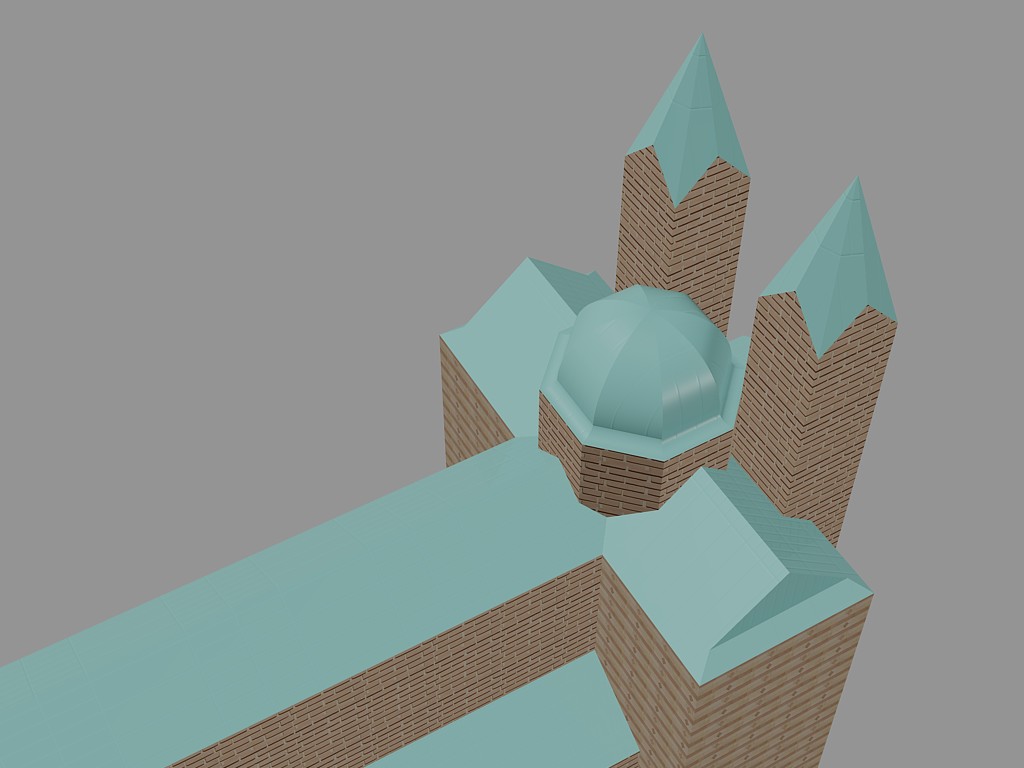

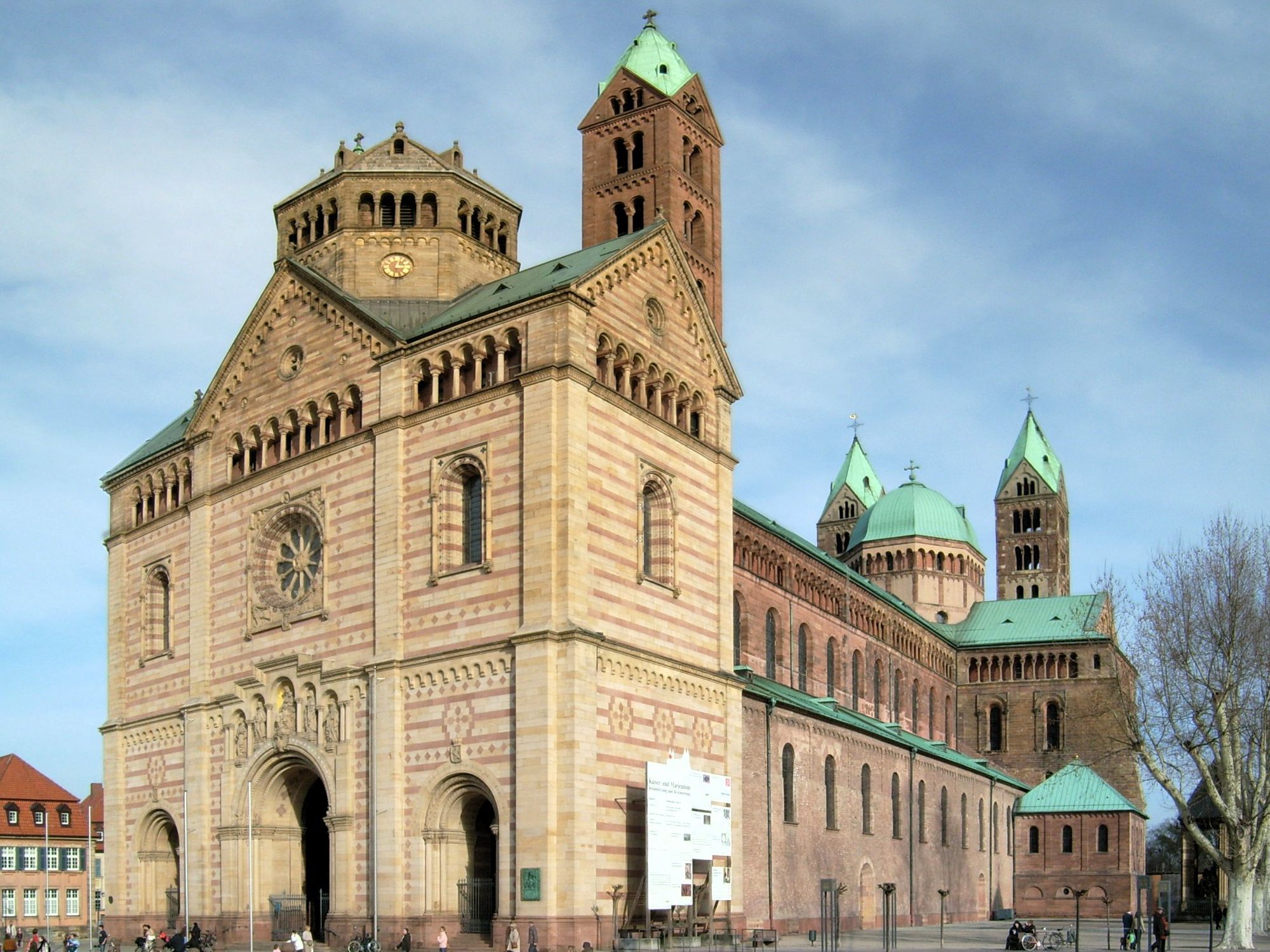

Simple Model: Speyer Cathedral

The Imperial Cathedral Basilica of the Assumption and St Stephen, in located in Speyer, Germany. It is the seat of the Roman Catholic Bishop of Speyer and is dedicated to St. Mary, patron saint of Speyer ("Patrona Spirensis") and St. Stephen. In 1981, the cathedral was added to the UNESCO World Heritage List of culturally important sites as "a major monument of Romanesque art in the German Empire". The construction begun in 1030 under Conrad II, with the east end and high vault of 1090-1103. And than there was a lot of interventions and aditions. It is a imposing triple-aisled vaulted basilica of red sandstone. Its design was extremely influential in the subsequent development of Romanesque architecture during the 11th and 12th centuries.

Pictures

[PICTURE][PICTURE][PICTURE][PICTURE]
[PICTURE][PICTURE][PICTURE]

[PICTURE]

Complex model: Welcome Point - Óbuda

The Welcome Point is a design developed for Óbuda, in Budapest. It will be a pavillion located in the main entrance of the neighborhood, it will be a point of reception for tourists, with information and ticket venue for public transportation and touristic atractions. The main materiais are steel and glass.

Pictures

[PICTURE]  [PICTURE]  [PICTURE]  [PICTURE]
