Constructive CAD CE • Modeling in AutoCAD

  BMEEPAG0249 • elective course • 2013-14-1

Carmen Franch Echániz

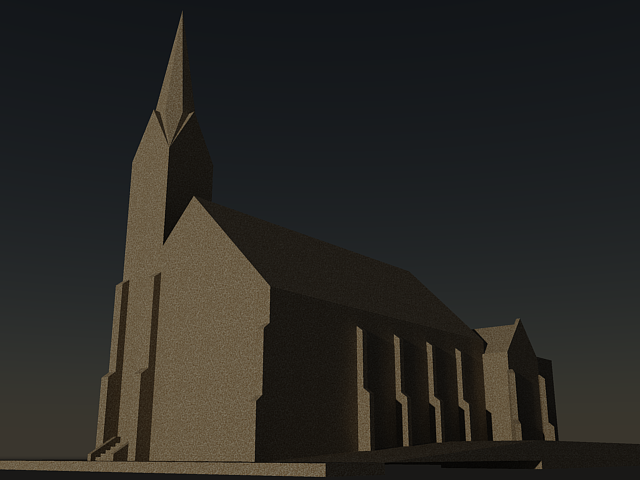

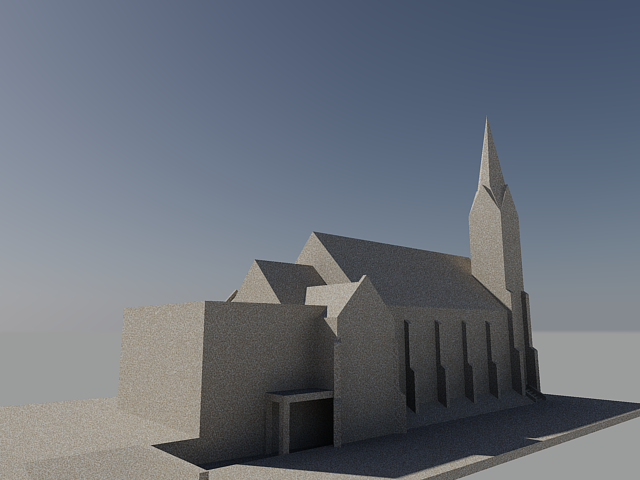

Simple Model

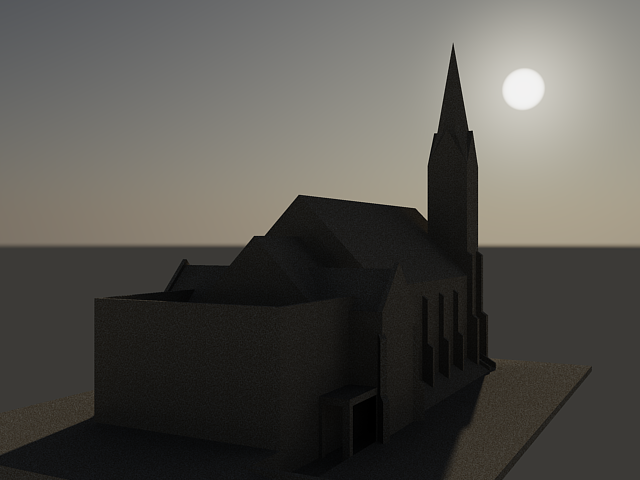

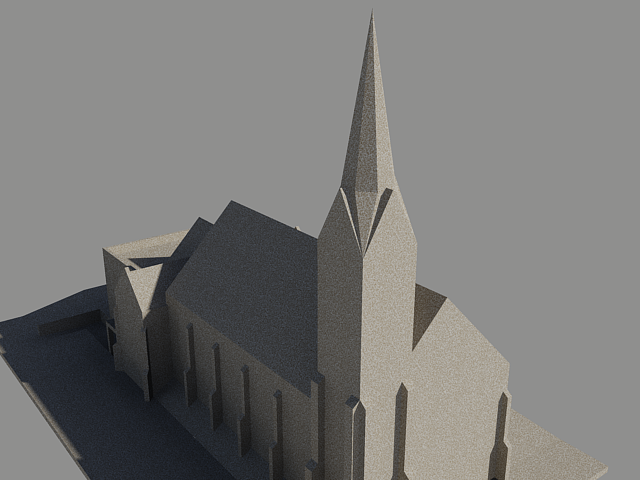

St. Colman of Cloyne church was built by the Irish immigrants in Washington Court House, in Ohio (US) . The church is planned within a rectangle. The nave, has some 29.26m long and 12 m wide. The tower which has a square shape is considerably higher than the nave.The walls are constructed of clay bricks and the roofs are covered with slate tiles.

Pictures

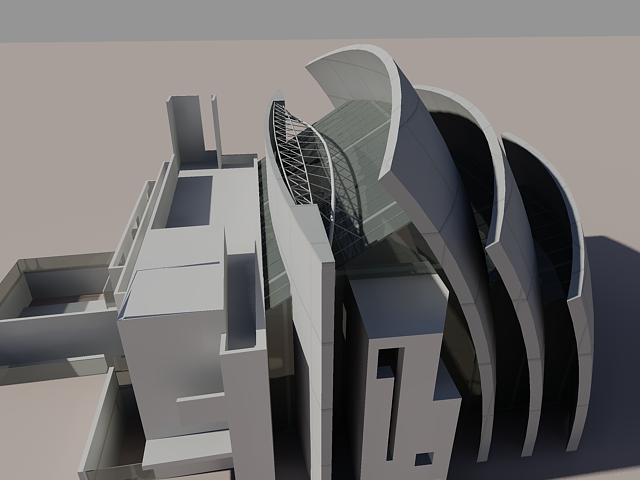

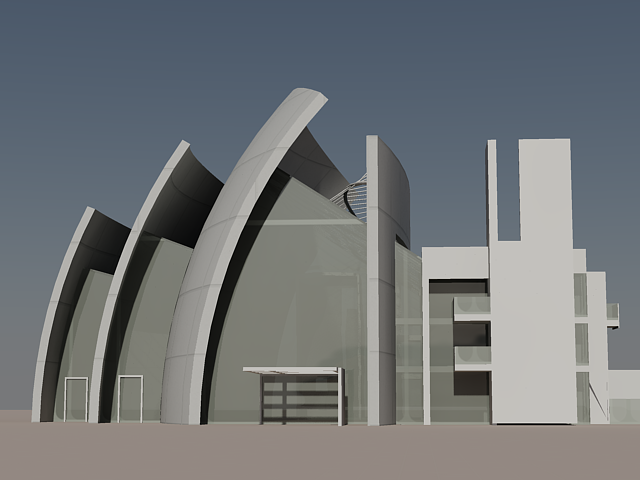

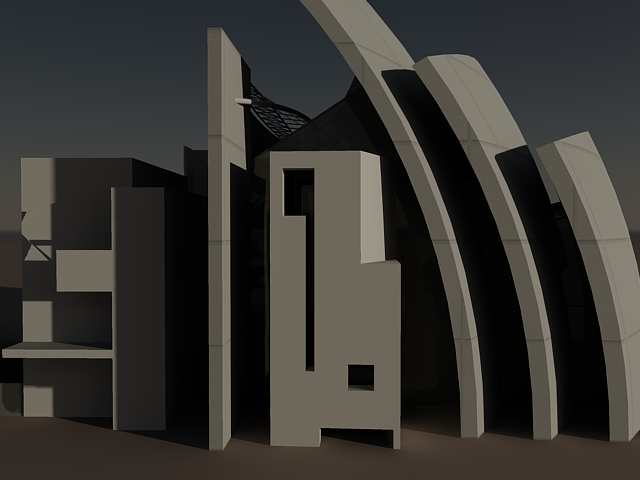

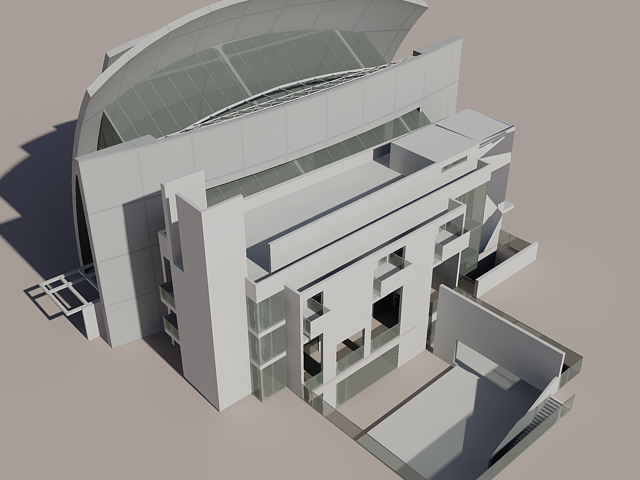

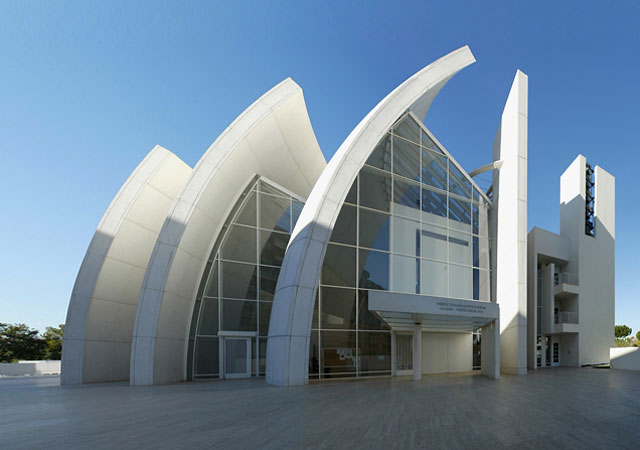

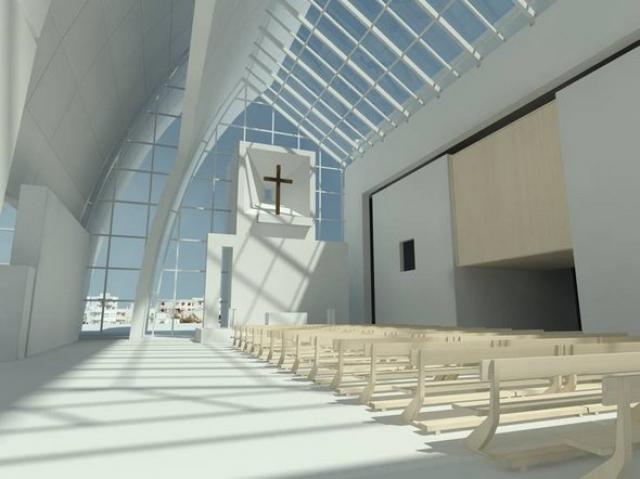

Complex Model

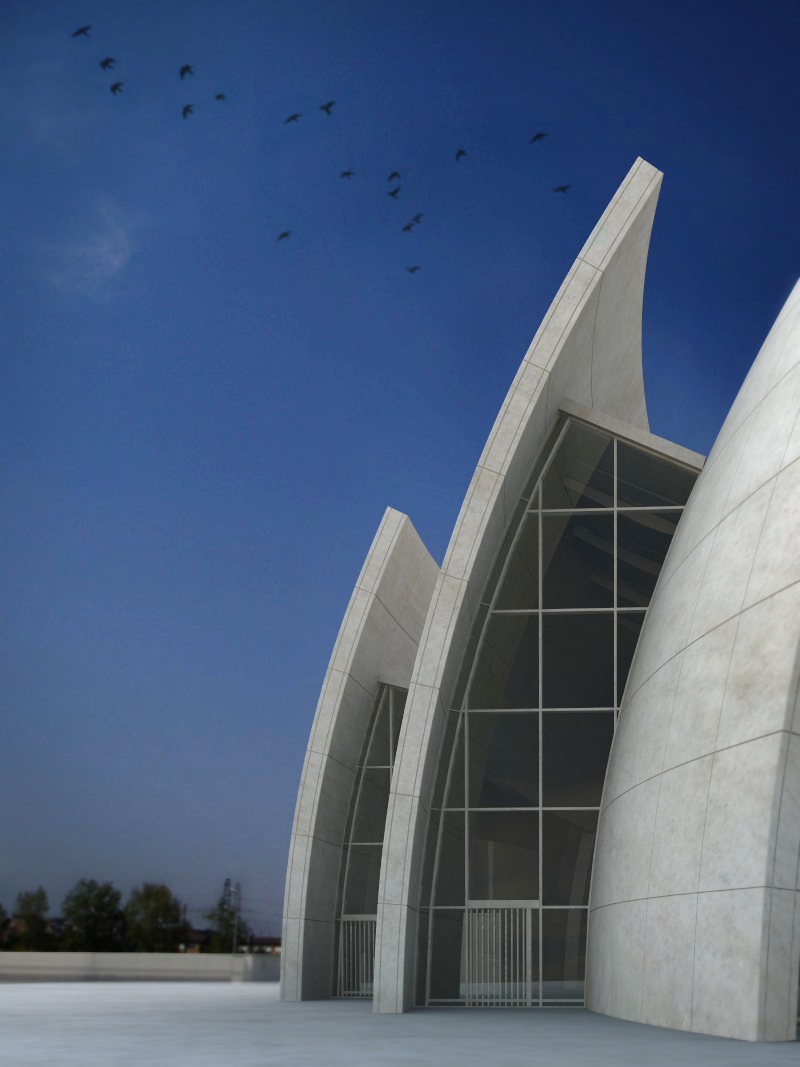

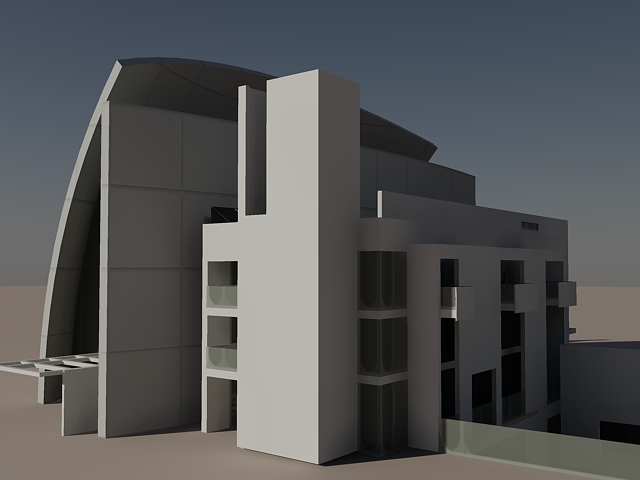

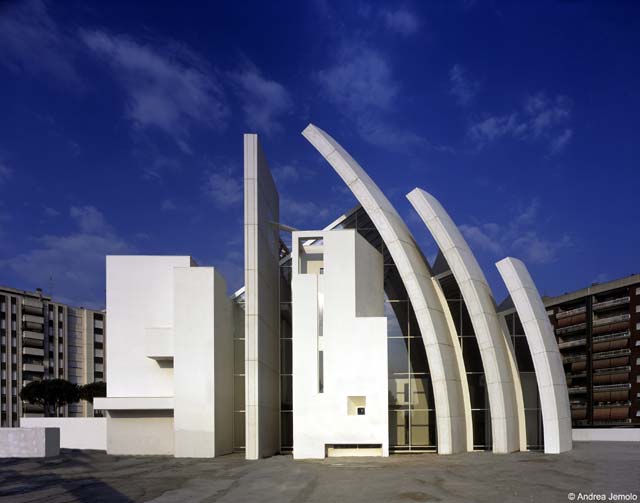

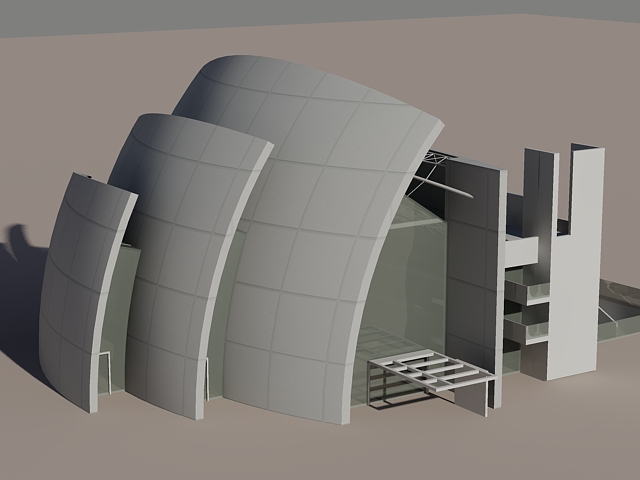

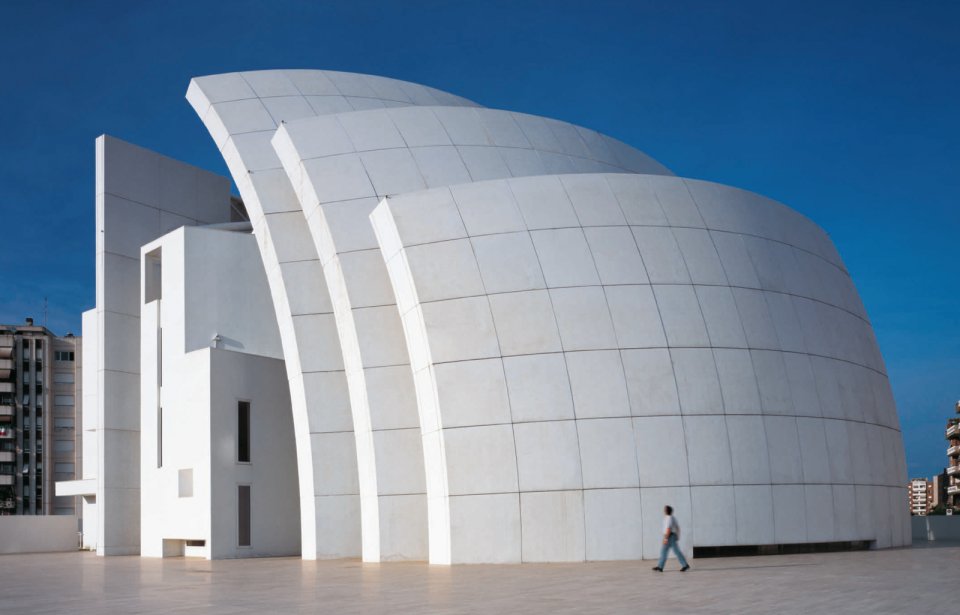

The importance of this project is to give value and attraction to the deepest and most far suburbs in Rome; the occasion came with the beginning of the new Millennium. The Vicariato of Rome (diocese of Rome’s Bishop, the Pope) committed this work to show and highlight the basic role that architecture plays in holy and religious spaces, and to demonstrate that the connection with contemporary architecture is the key to improve quality of life in suburban areas. These were the goals that the project had to face. Richard Meier’s project won the international competition in 1996.

Pictures
