Constructive CAD CE • Modeling in AutoCAD

BMEEPAG0249 • elective course • 2012-13-2

Claudia Ródenas Castillo

Simple Model

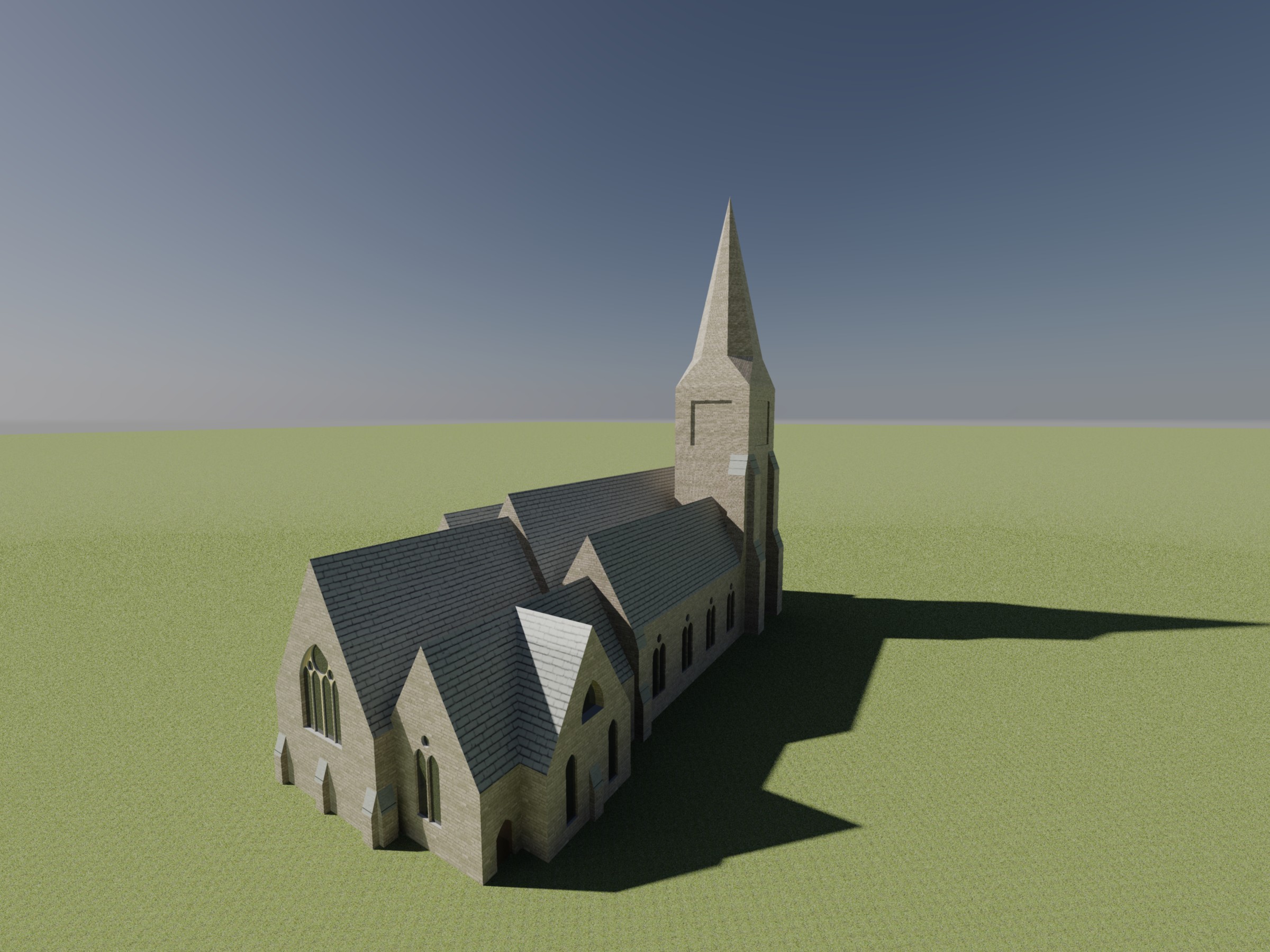

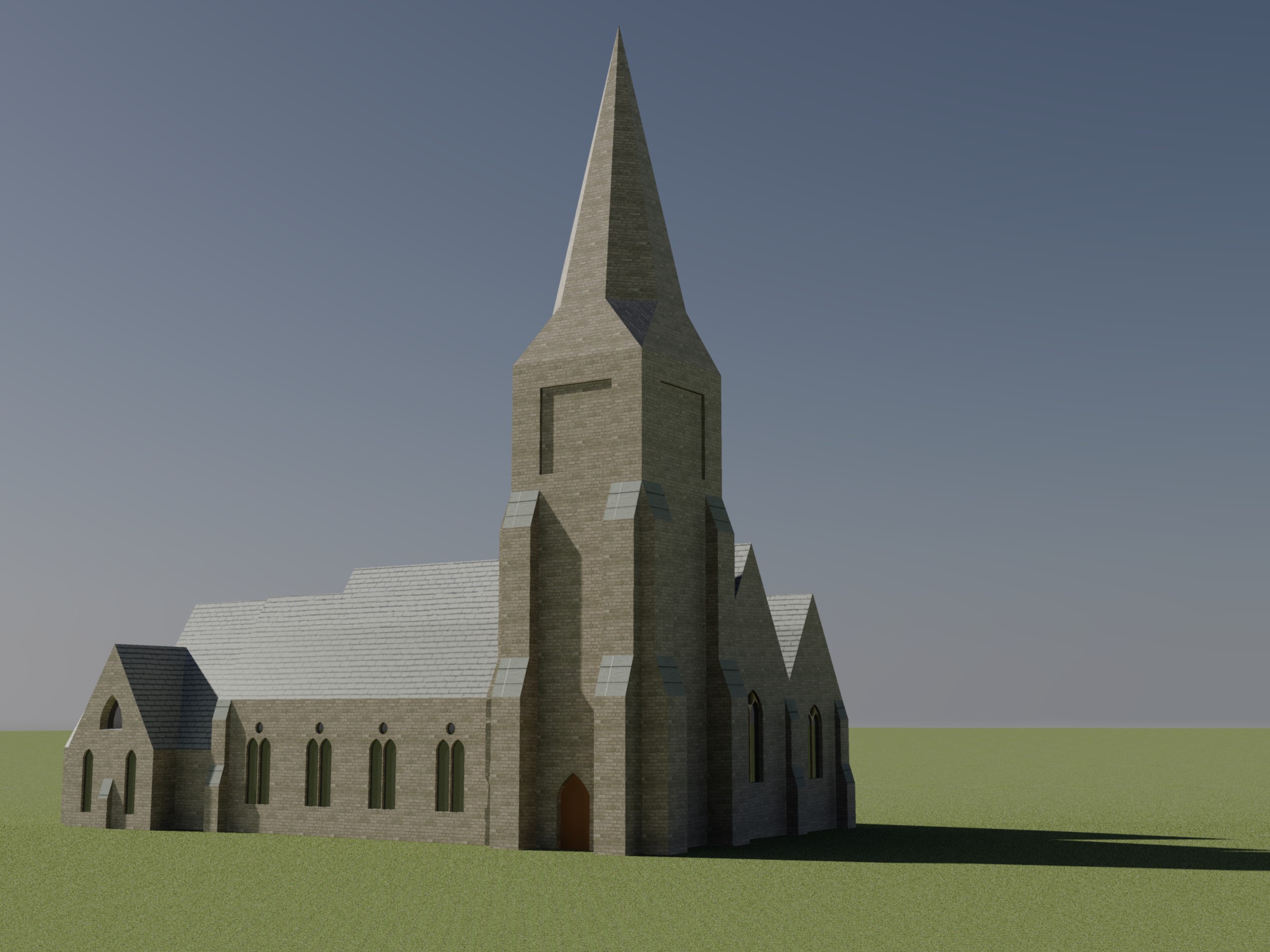

Christ church, Denton, England. Christ church is an ecclesiastical parish formed March 17, 1846. The church, erected in 1853, is a building of stone in the Early Gothic style, and consists of chancel, nave of five bays, aisles, north porch and a western tower with spire containing a clock and one bell.

Pictures

Complex Model

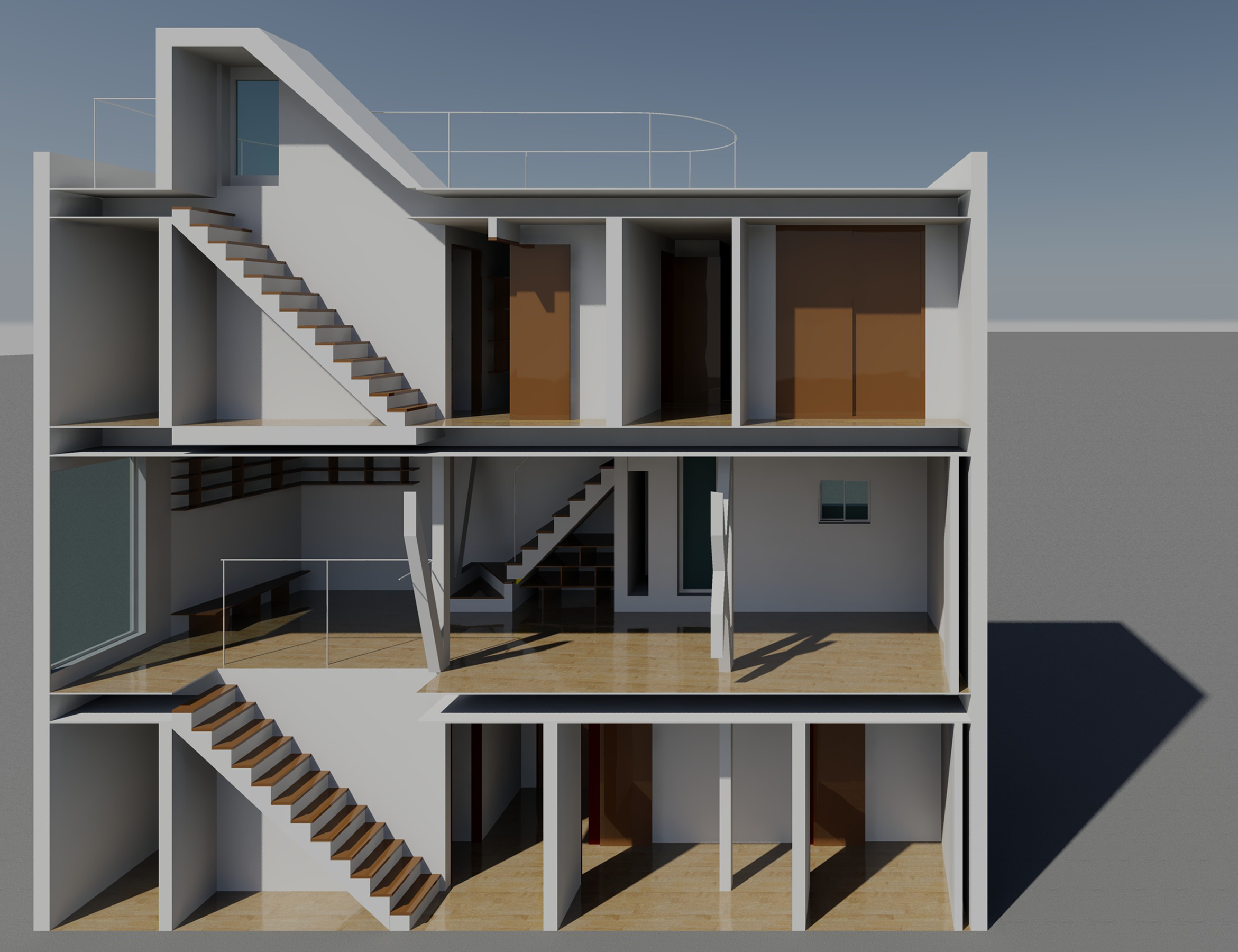

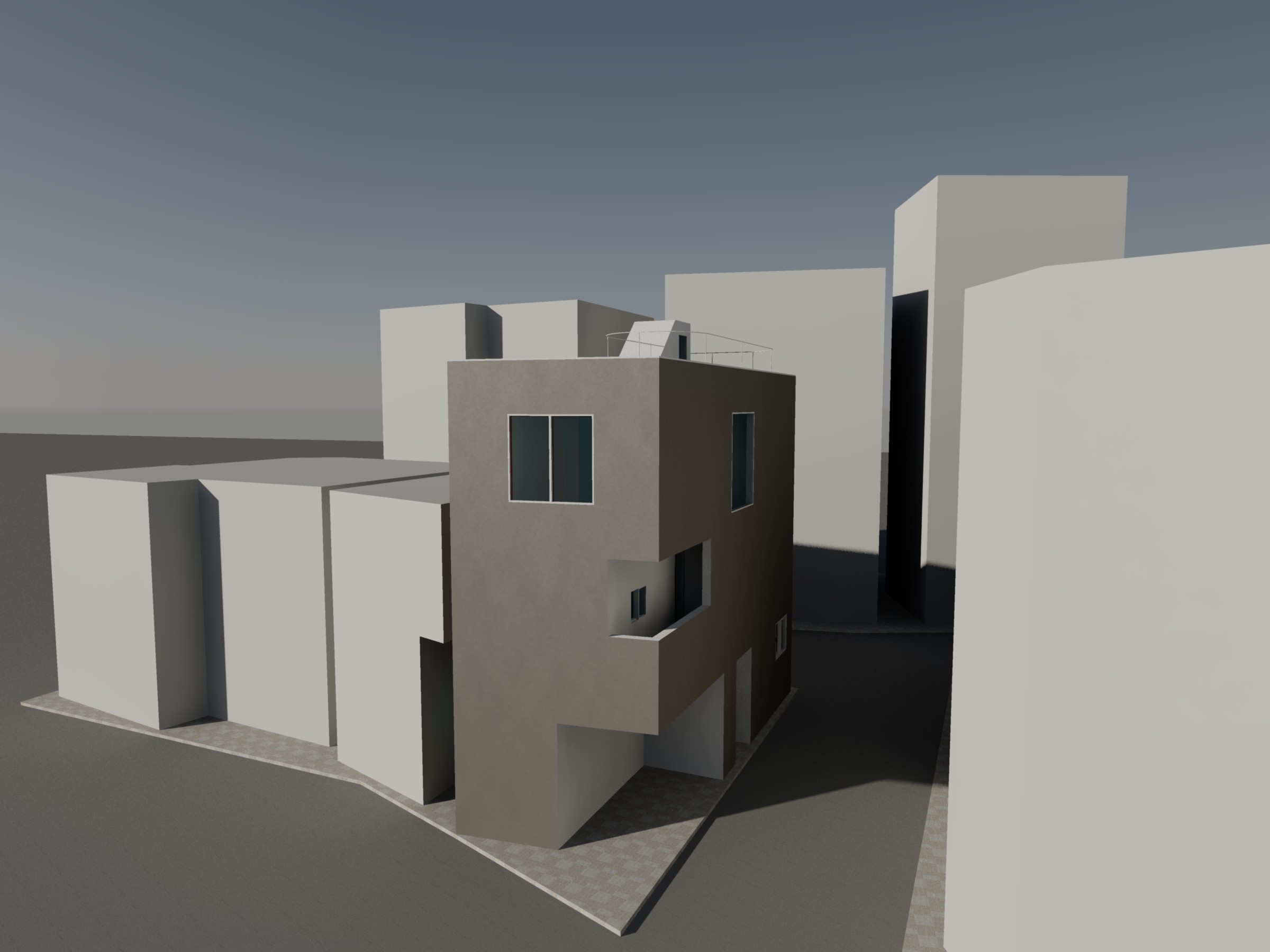

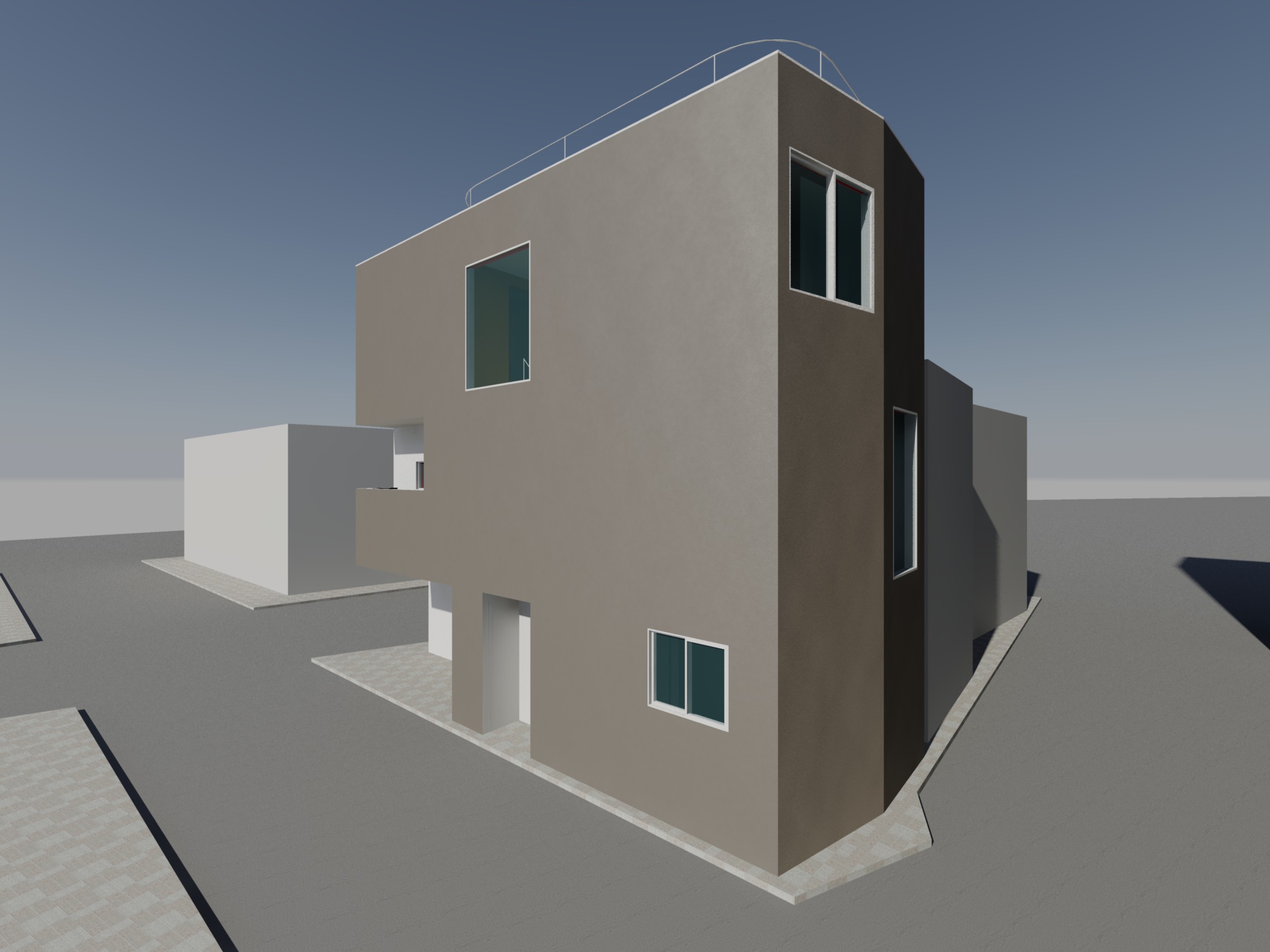

House Shimouma, Setagaya-ku, Tokyo, Japan. Kazuya Saito Architects (2009-2010). The site of the house is a long and narrow lot, located in a dense residential area in Tokyo with its north side facing the residential area. The clients are a working mother and her son who has many things to store.They needed a secure parking and wanted a defined number of rooms so automatically the house became a three-storey building.
