Constructive CAD CE • Modeling in AutoCAD

  BMEEPAG0249 • elective course • 2014-01-3

ISSELE Pierre


[PICTURE]

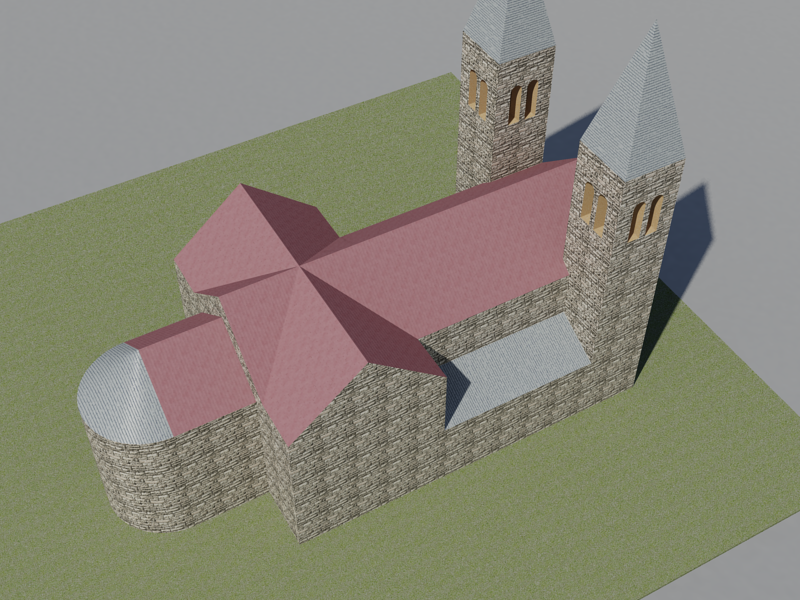

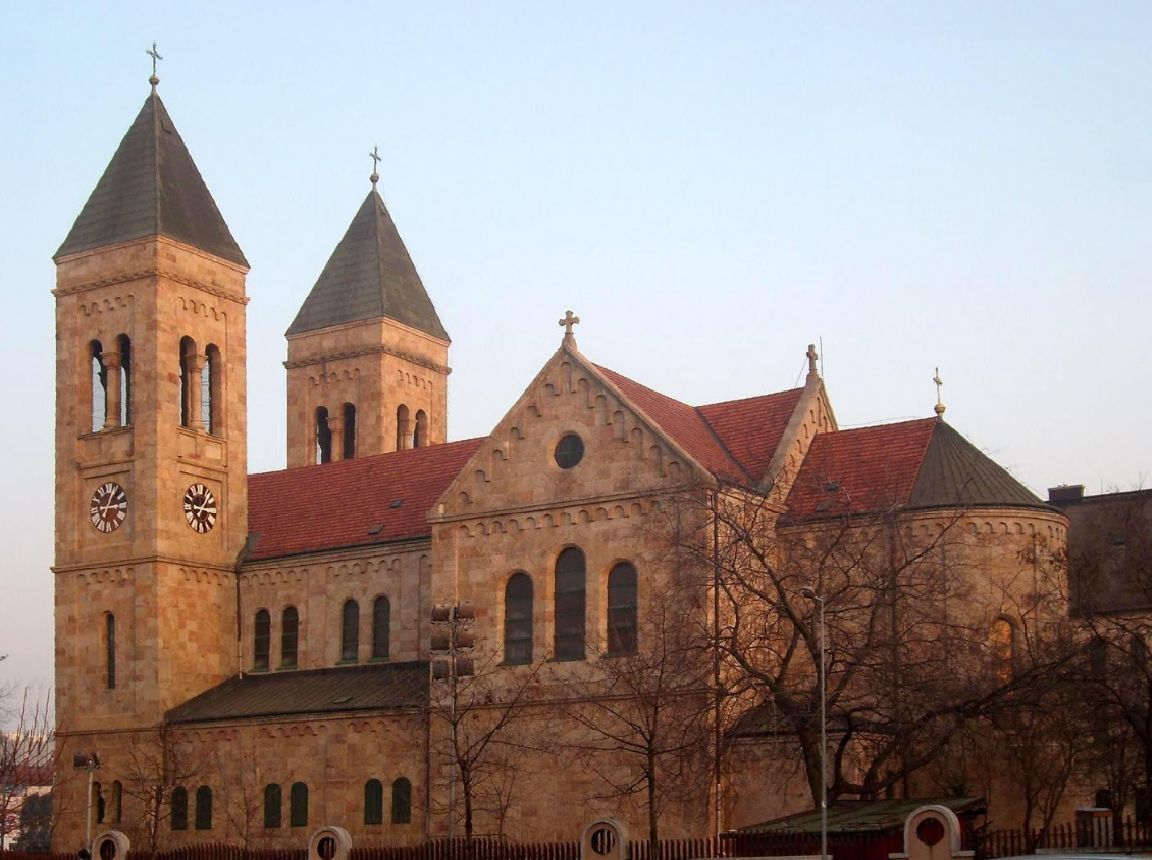

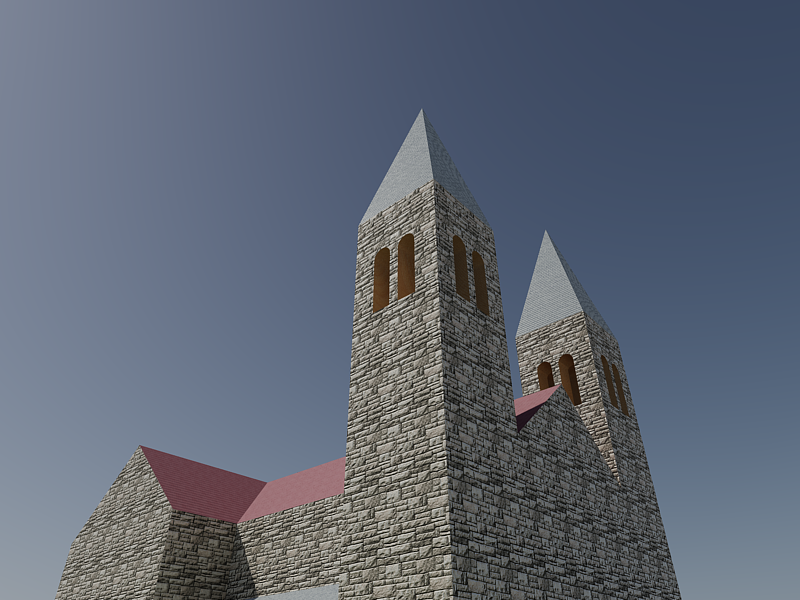

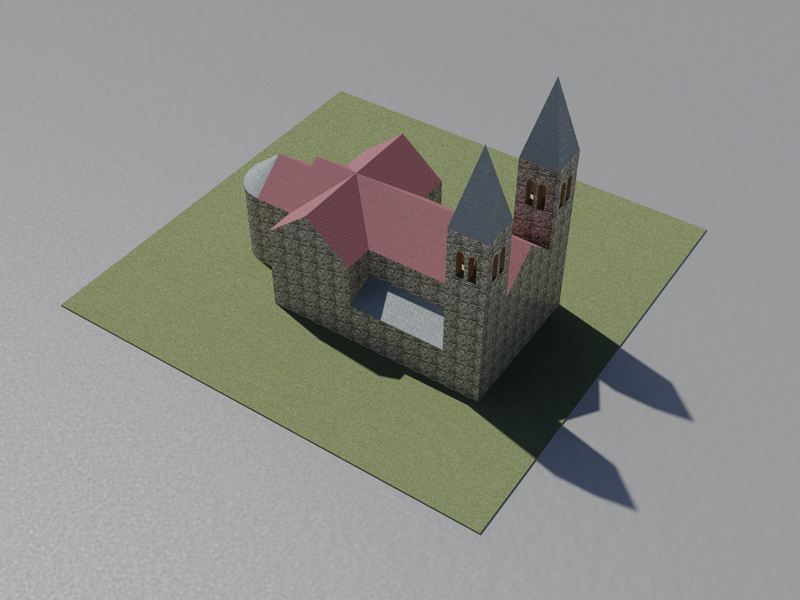

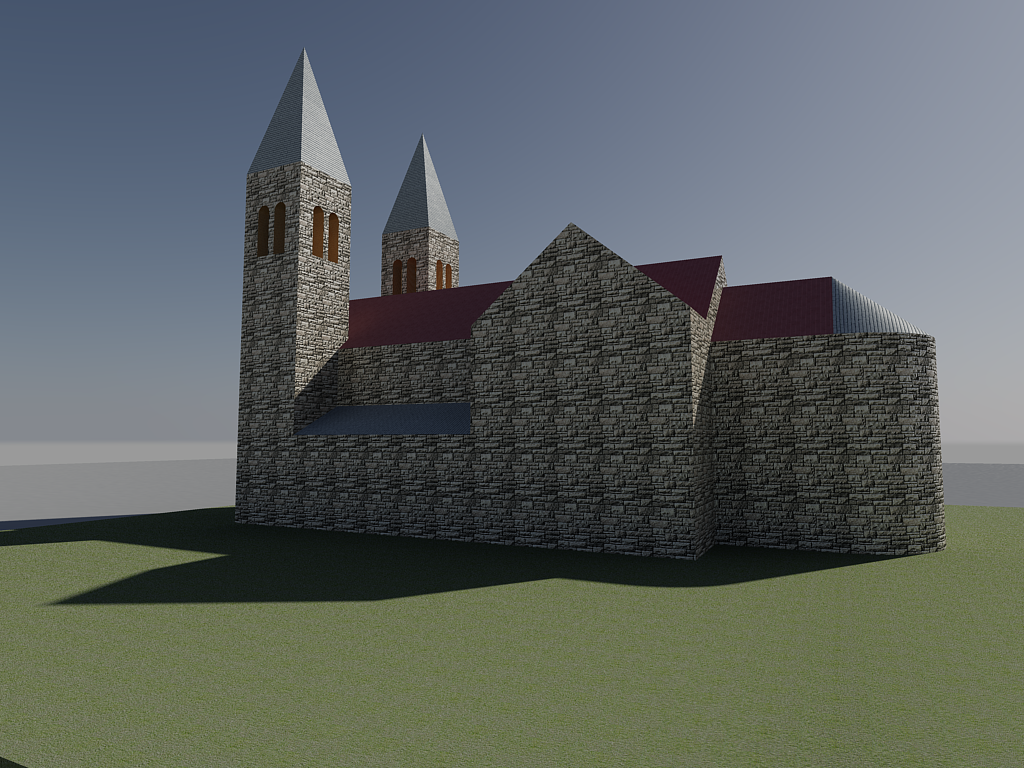

Simple Model : Szent Kereszt templom

Szent Kereszt templom is a three nave church, in latin cross form. Like the Fisherman's Bastion it is a Neo-Romanesque style of building that was made in the begining of the XX. century. The church was designed by Dr. Fábián Gáspár and the cunstruction finished in 1930t.

Pictures

[PICTURE]  [PICTURE]  [PICTURE]  [PICTURE]

[PICTURE]

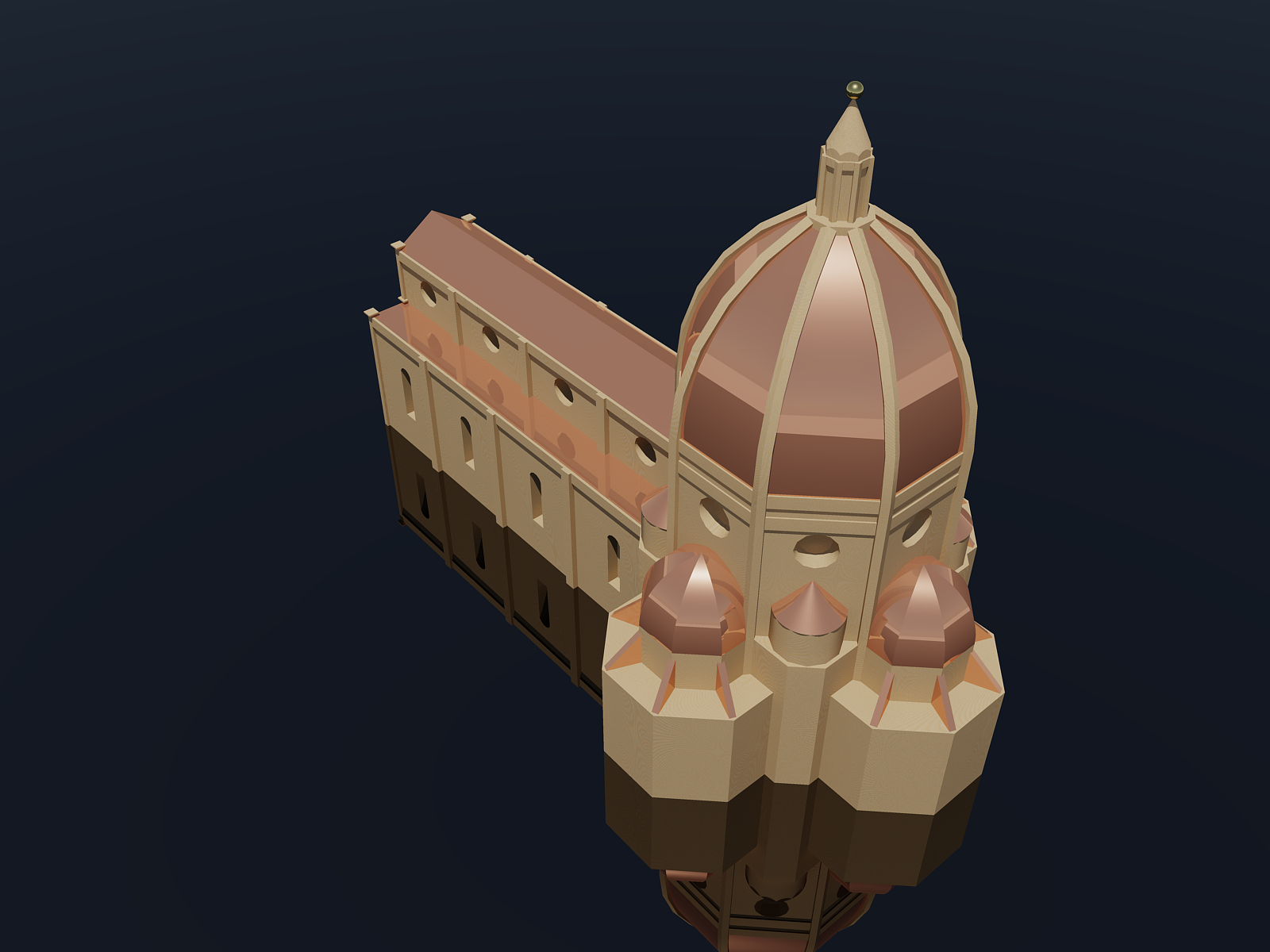

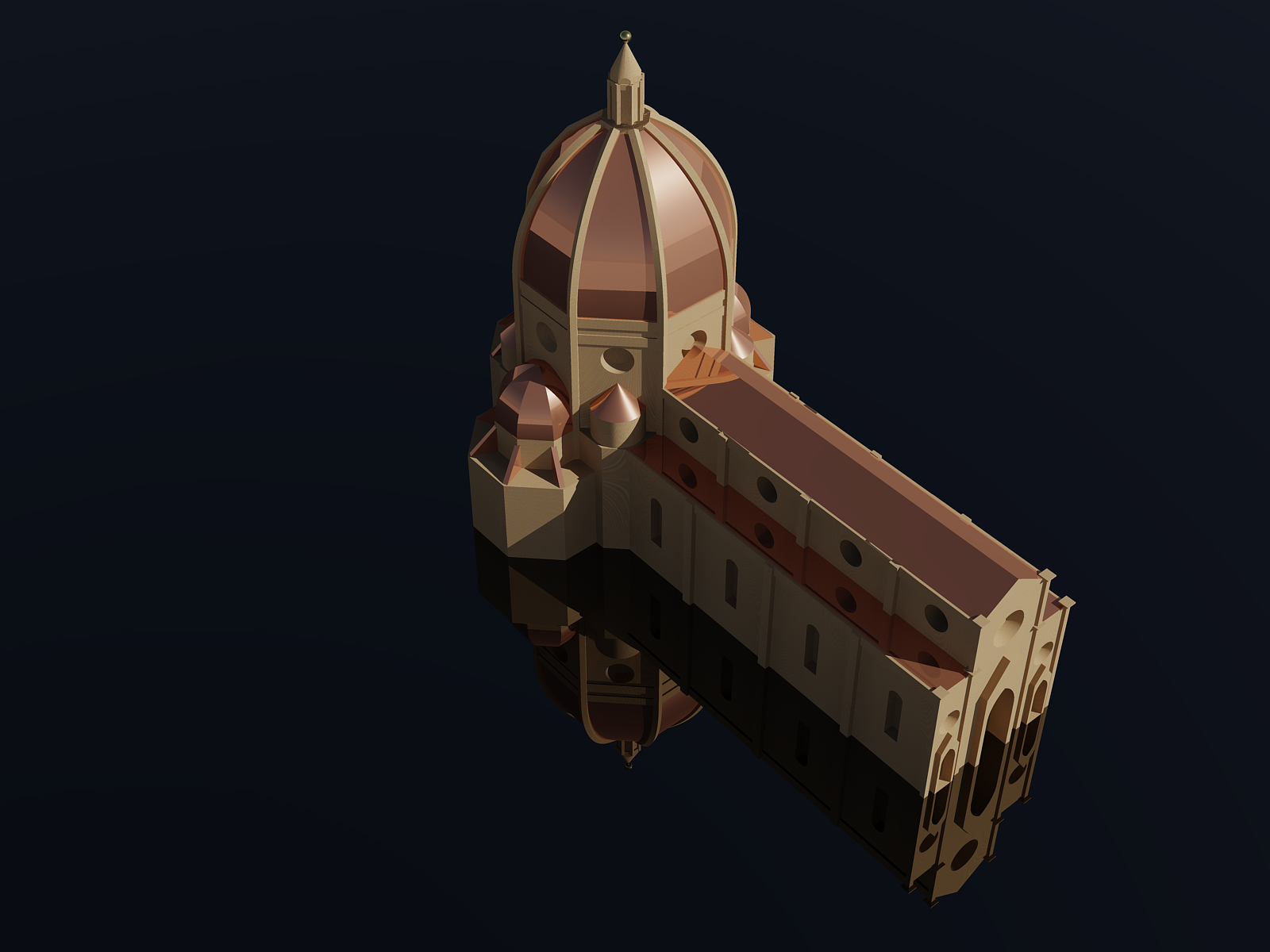

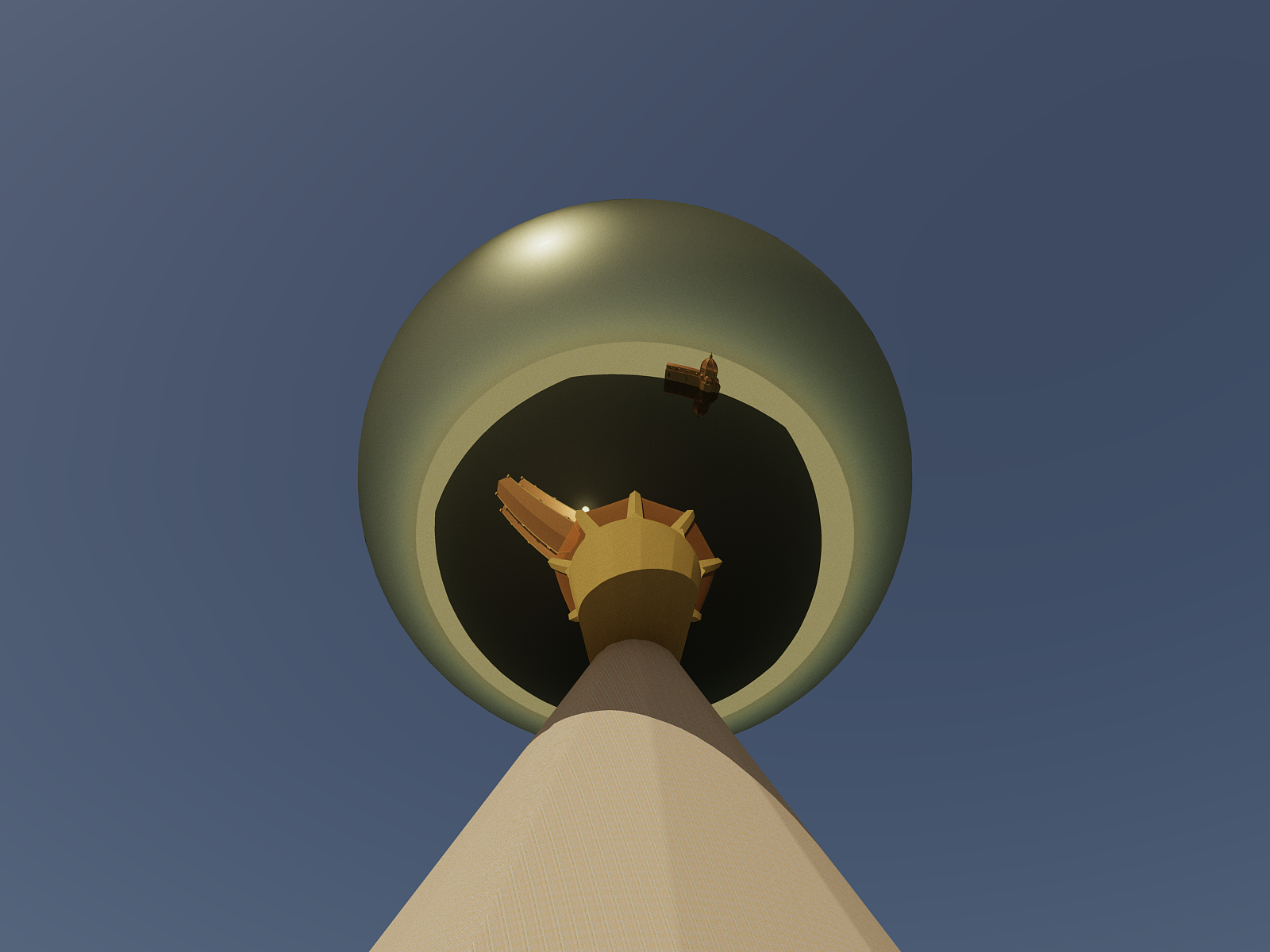

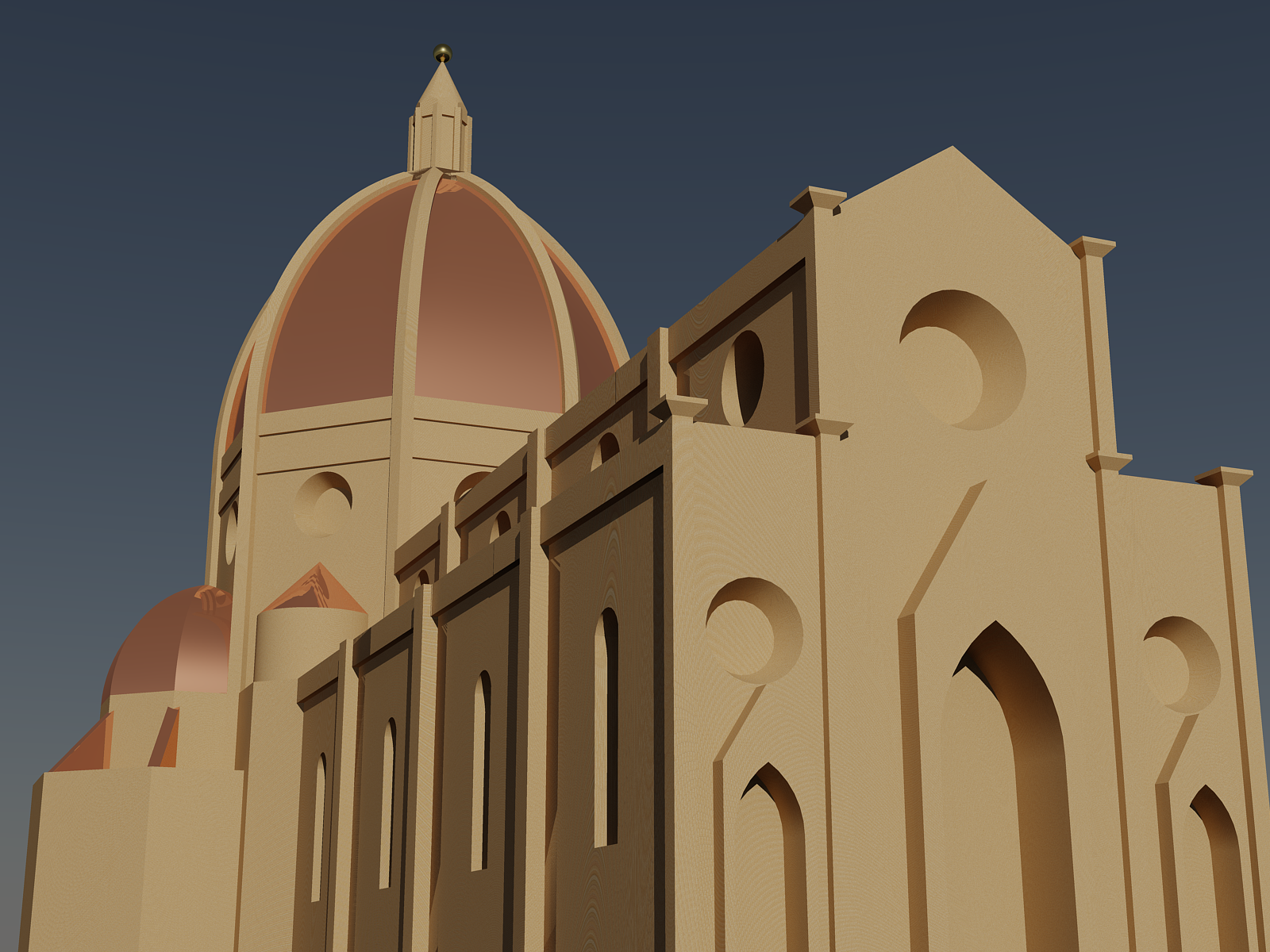

Complex Model : Cathedral of Santa Maria del Fiore

This cathedral of Florence is very well known for its huge dome. The construction was in many steps and during hundreds of years making of it a very interresting project. I wanted to create here a woden and metal model of the original building, showing the main complicated parts.

Pictures

[PICTURE]  [PICTURE] [PICTURE] [PICTURE]
