Constructive CAD CE • Modeling in AutoCAD

  BMEEPAG0249 • elective course • 2015-16-1

Ghaleb Khadra

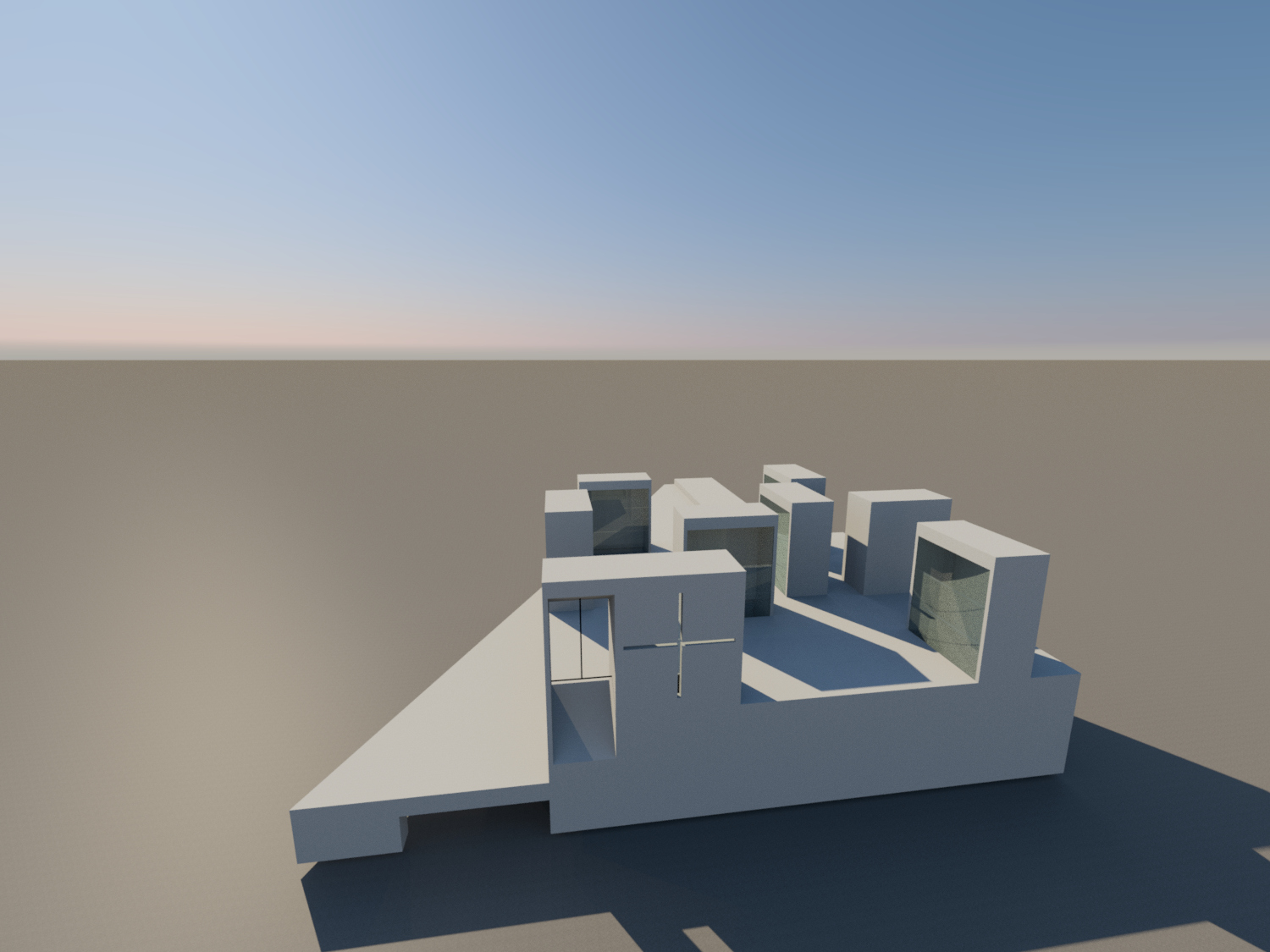

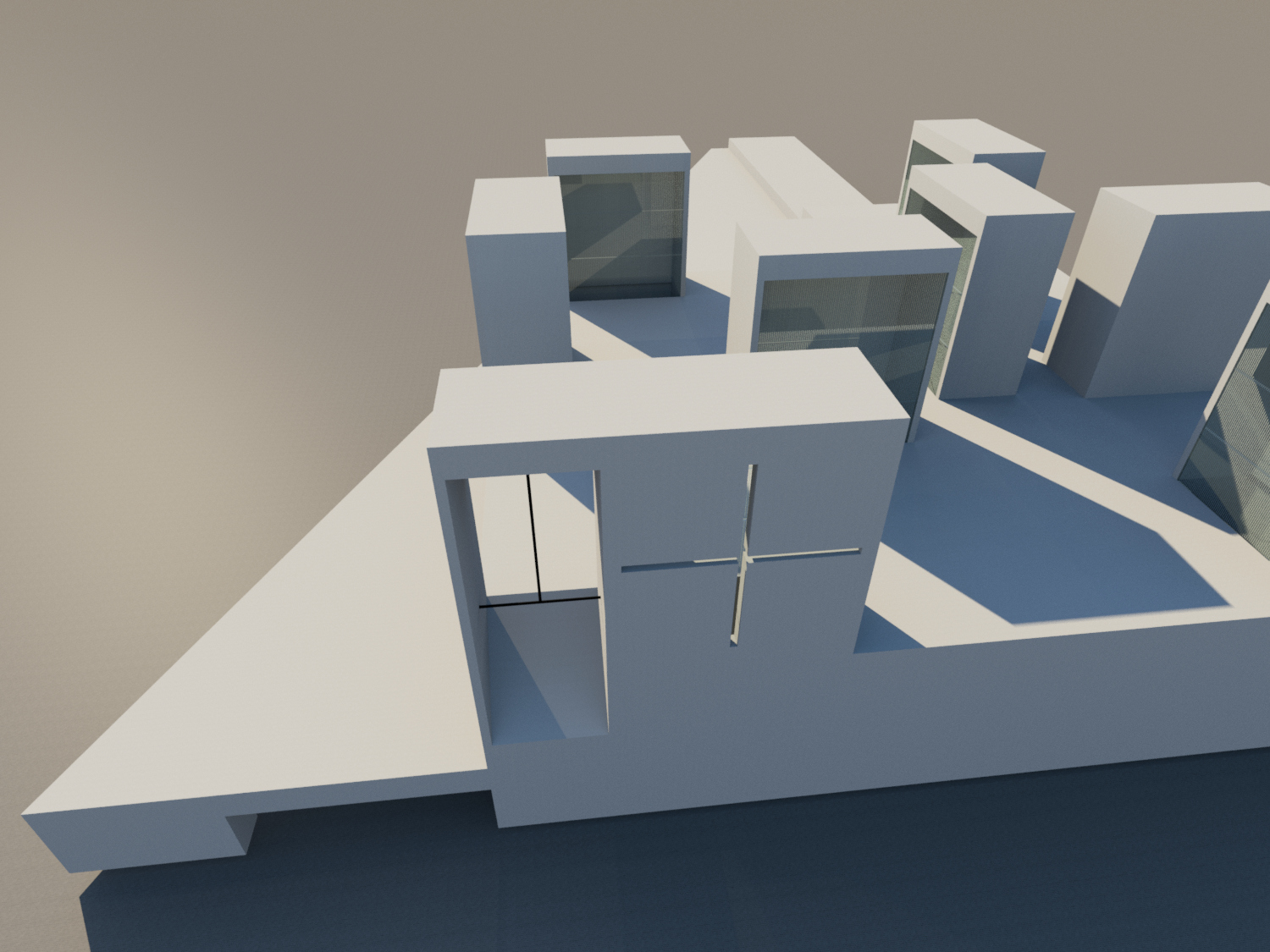

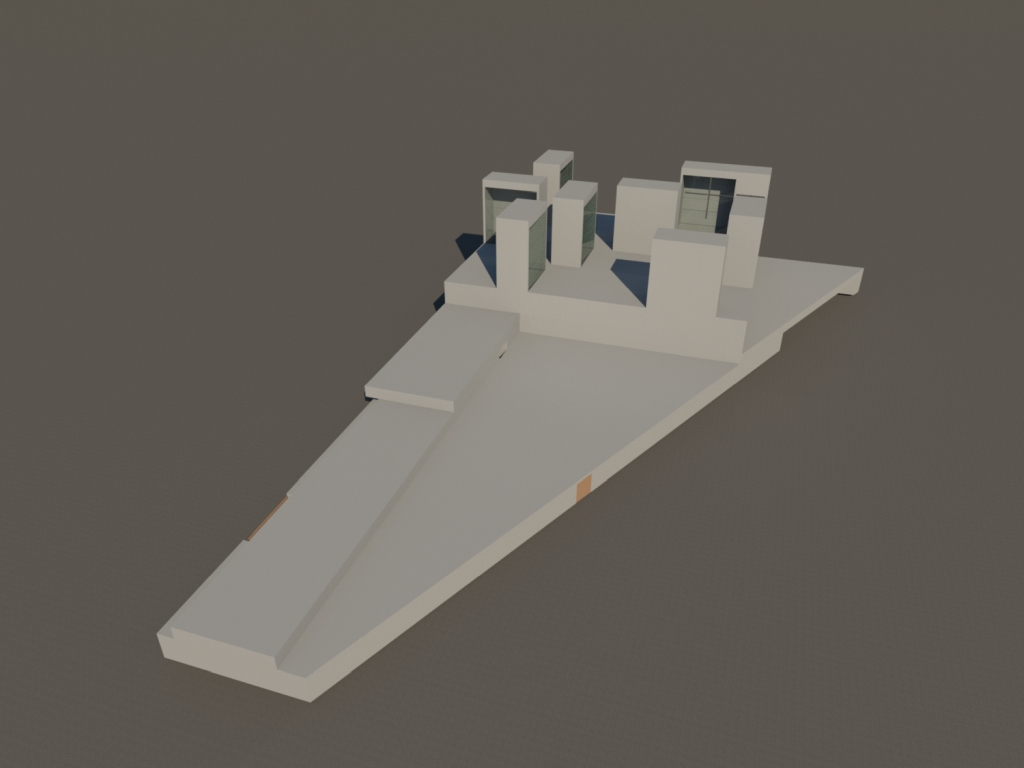

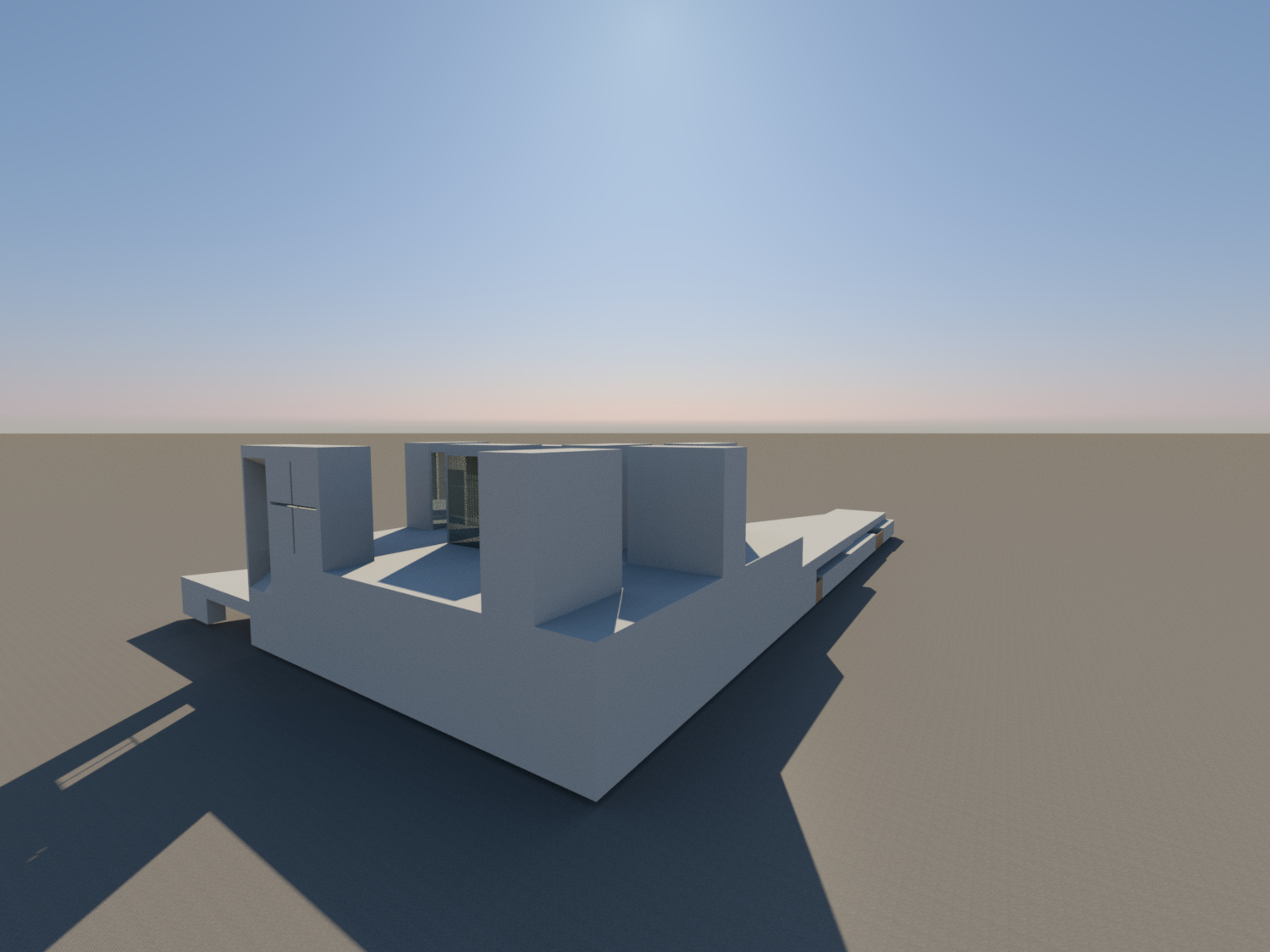

Simple Model

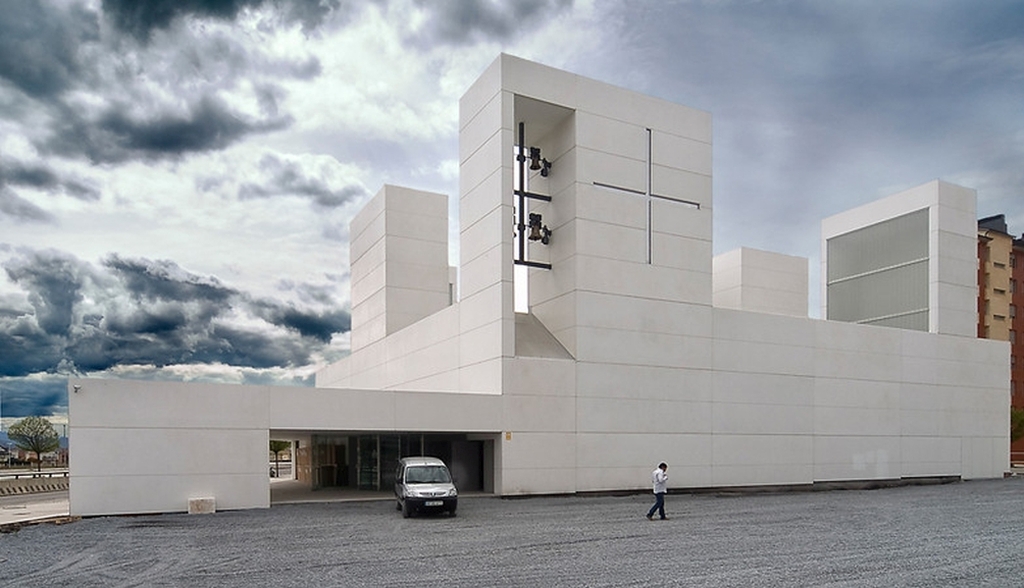

"The fundamental premise of the project has been the faithful implementation of all the functional and symbolic requirements demanded by the new provisions adopted by the liturgical reform. The chapel is presented as the protagonist of the set. It is located at the point of maximum visibility and accessibility, facing the Rose Garden." - Archdaily Architectural Website.
The building with its simple geometry, which aligned well with the project task of reproducing a simple model, yet nonetheless, the modernity all over it reflected its asymmetry both planer and in height, created interest and intrigue. Hence, this building was chosen to be reproduced as a 3D model.

Pictures

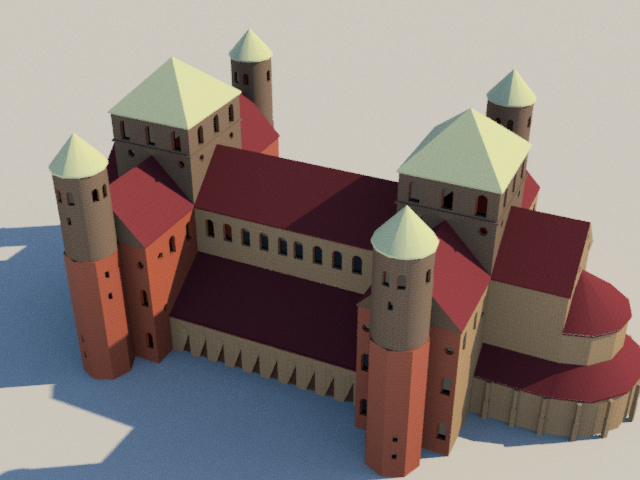

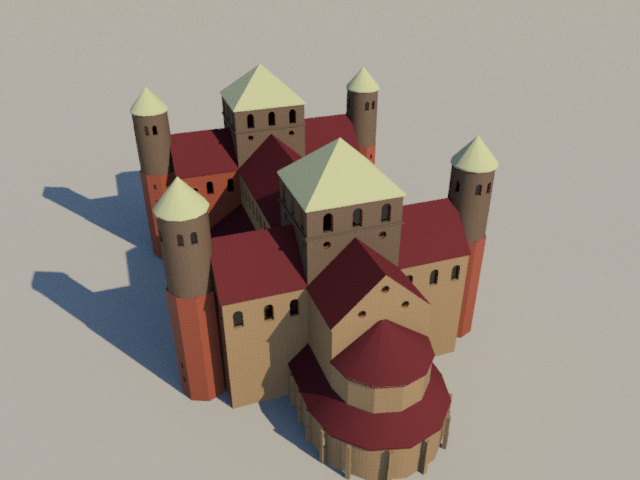

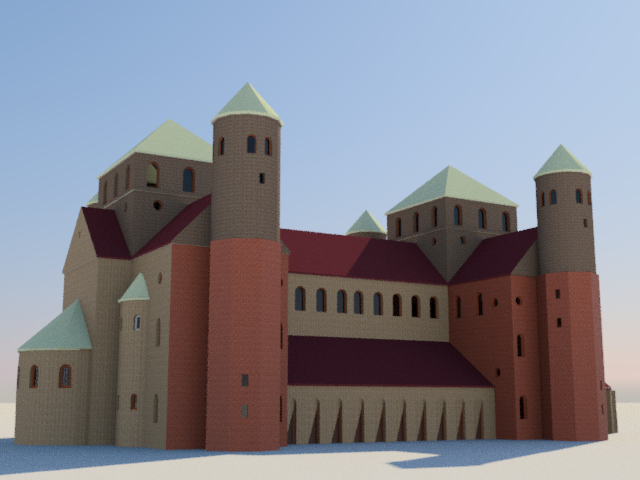

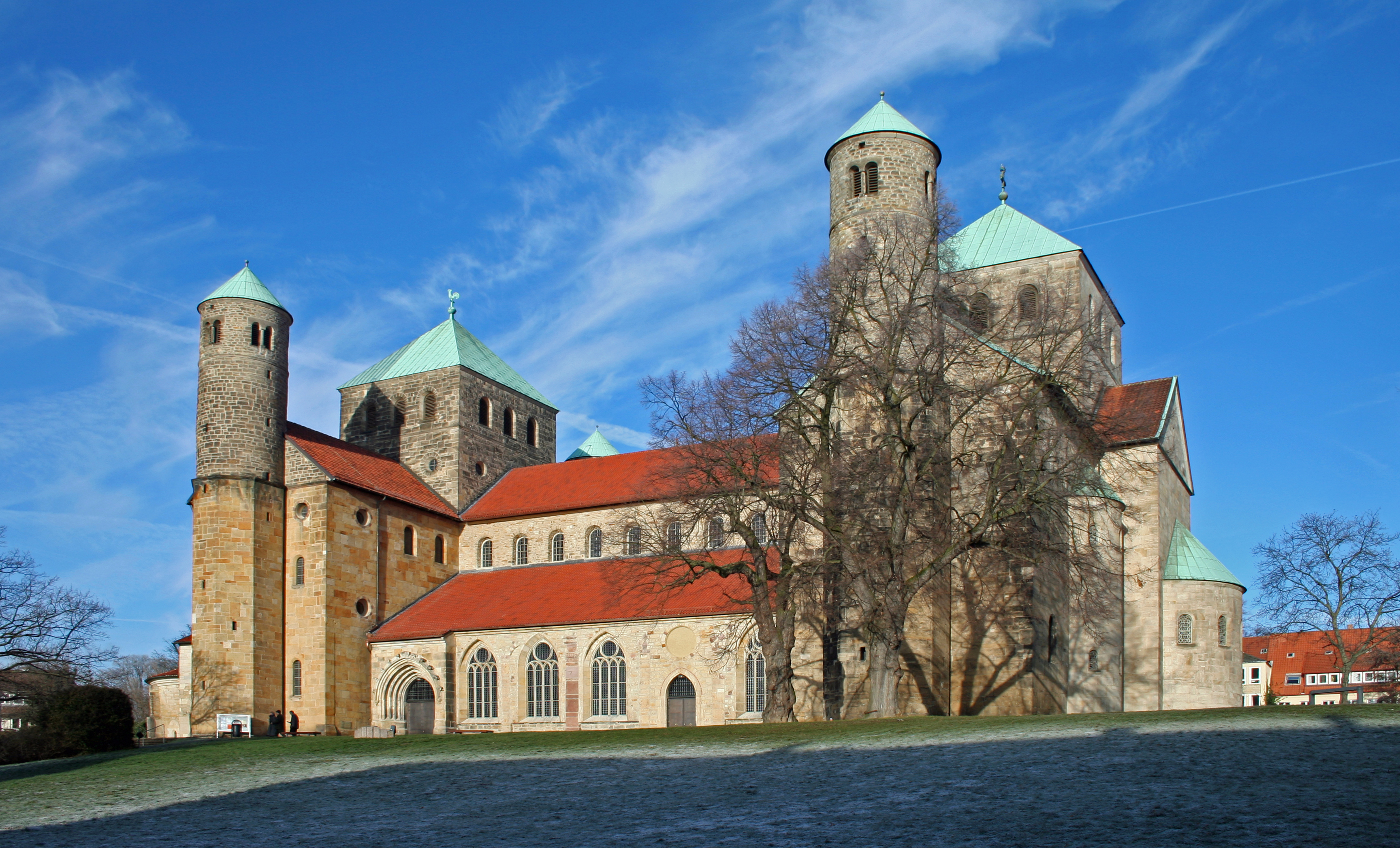

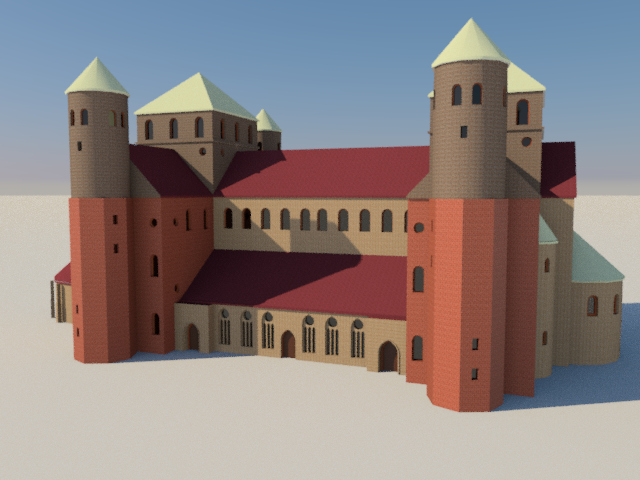

St. Michael's Church In Hildesheim

The church has massive mass with symmetry that portraying such a building is very intriguing as an Architecture student. The geometry of the entire building is very unique in the sense it combines all sorts of simple
geometrical forms into one building that modeling this building enables the learning process of how to perform all sorts of shapes and forsm.

Pictures
