Constructive CAD CE • Modeling in AutoCAD

BMEEPAG0249 • elective course • 2015-16-1

Barberat Alexis

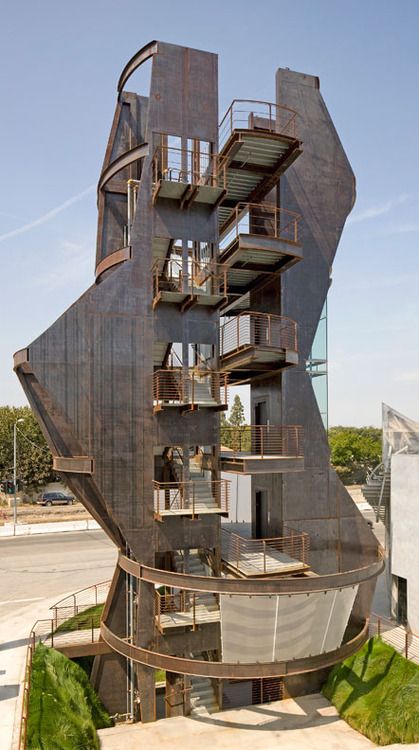

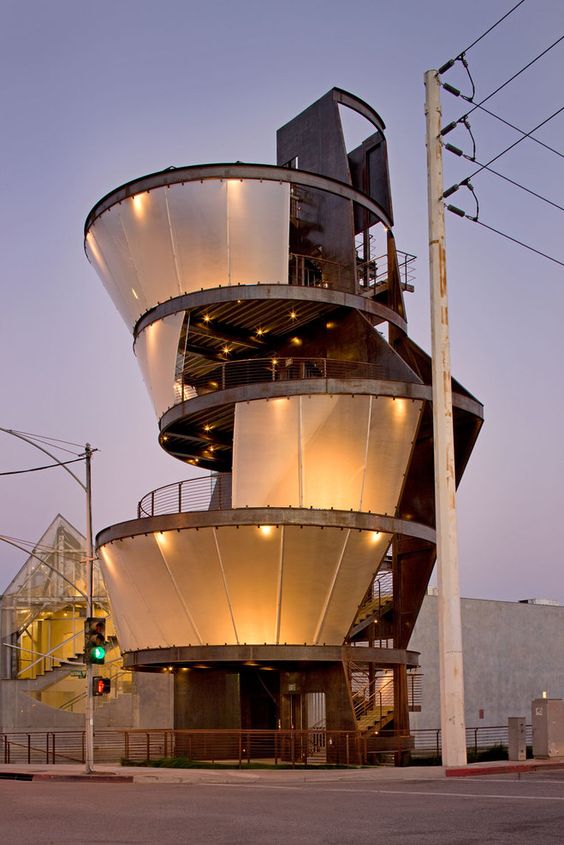

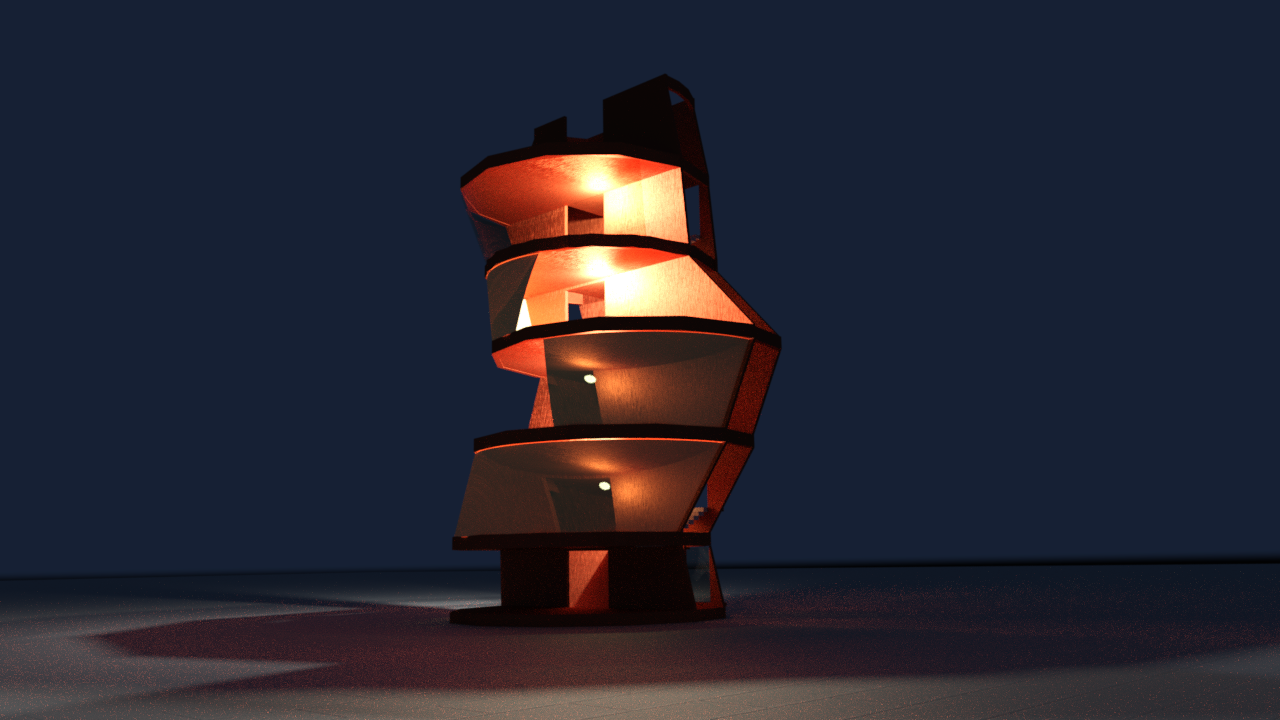

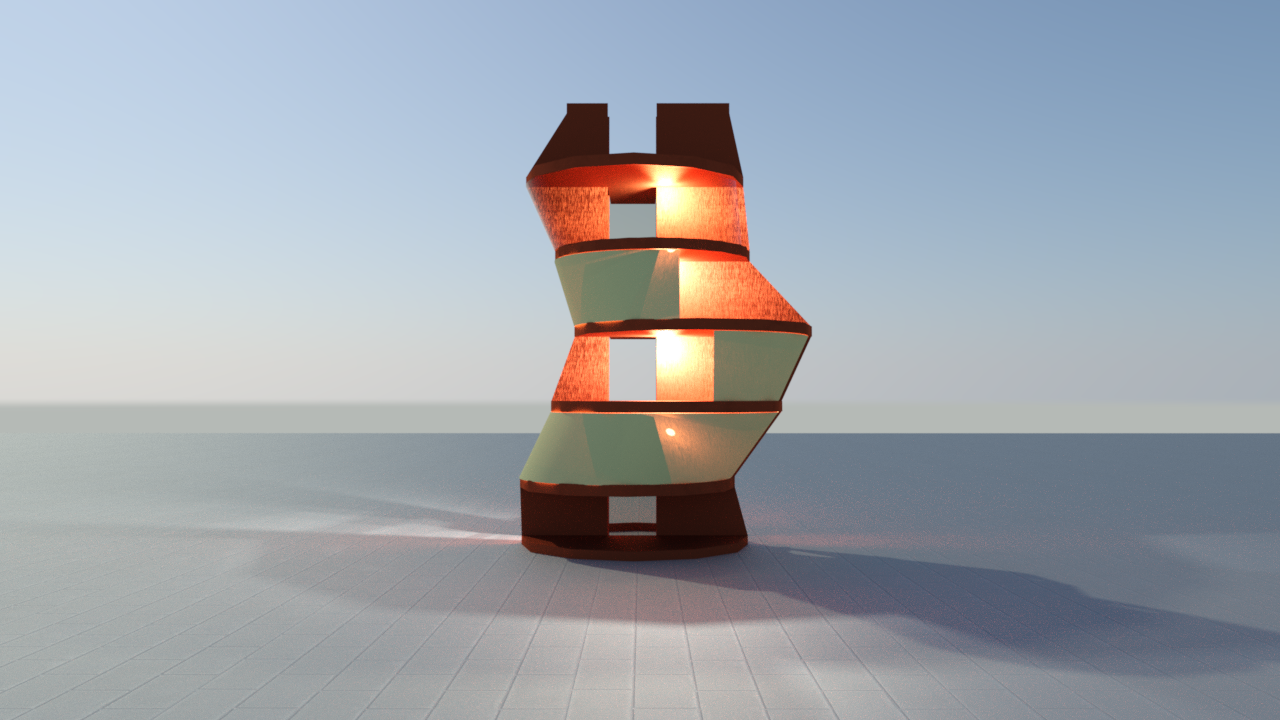

Simple Model - Samitaur Tower - Eric Owen Moss Architects

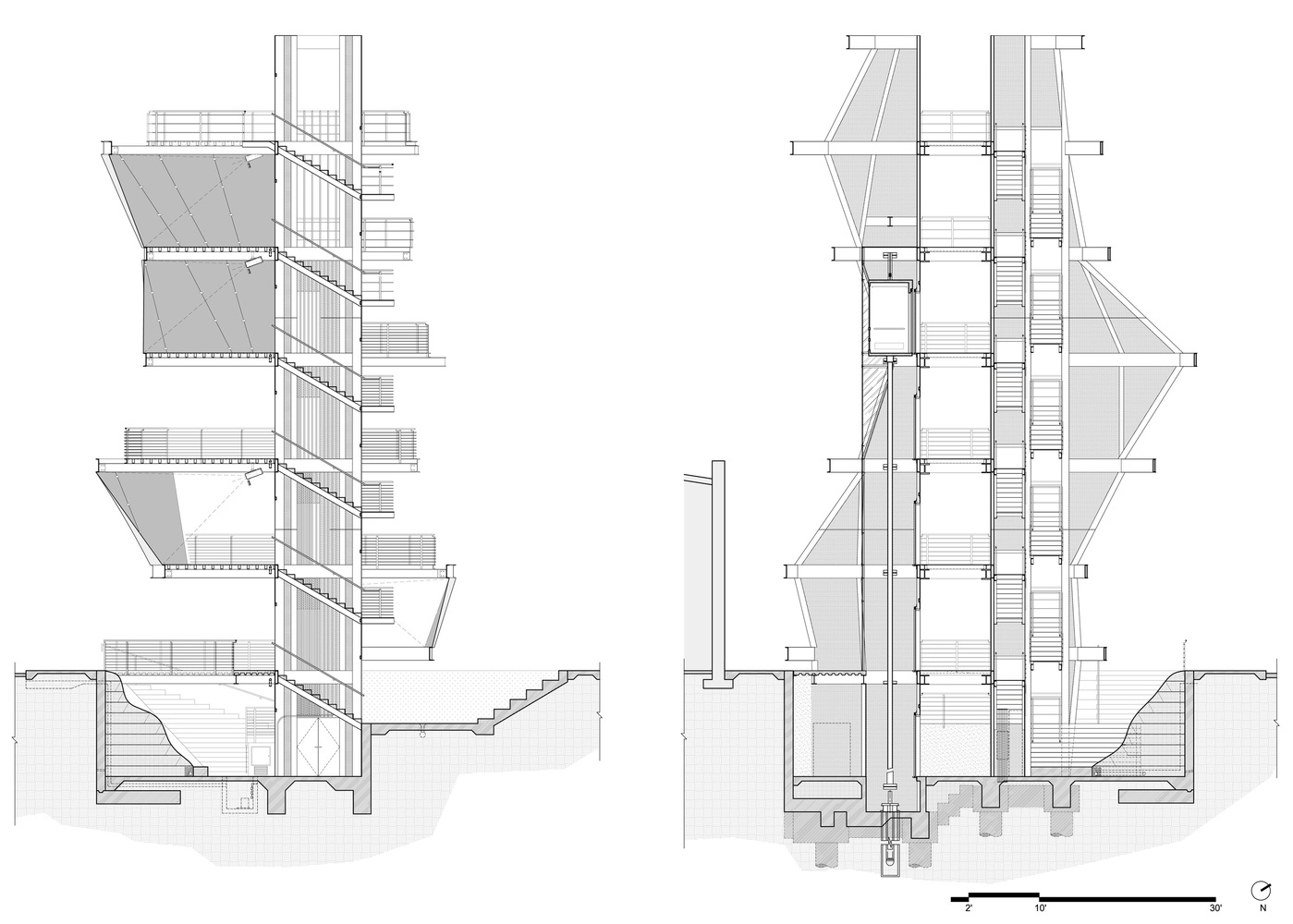

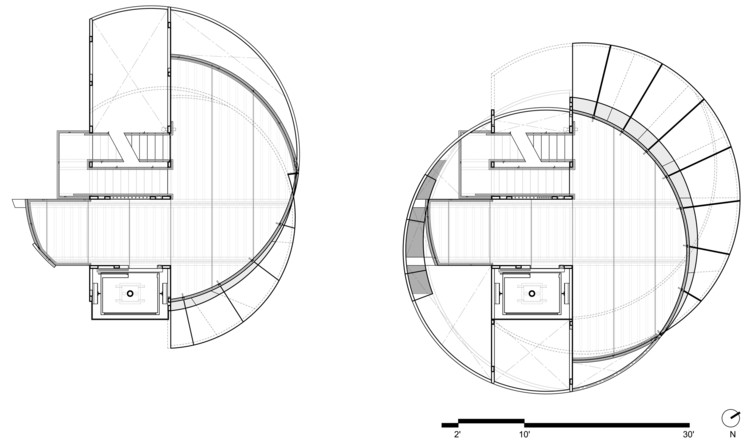

Located in Culver City, California and built in 2010. The tower was made as an observation Tower and Digital Projection Venue. This particular shape is the result of the succession of circular levels with different diameter

Pictures

Complex Model

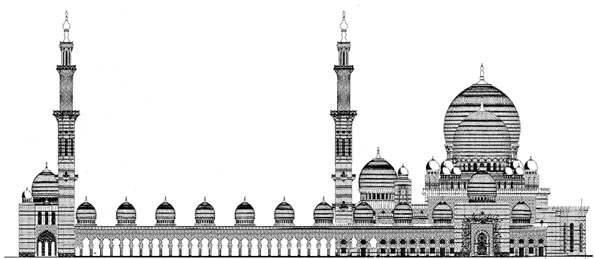

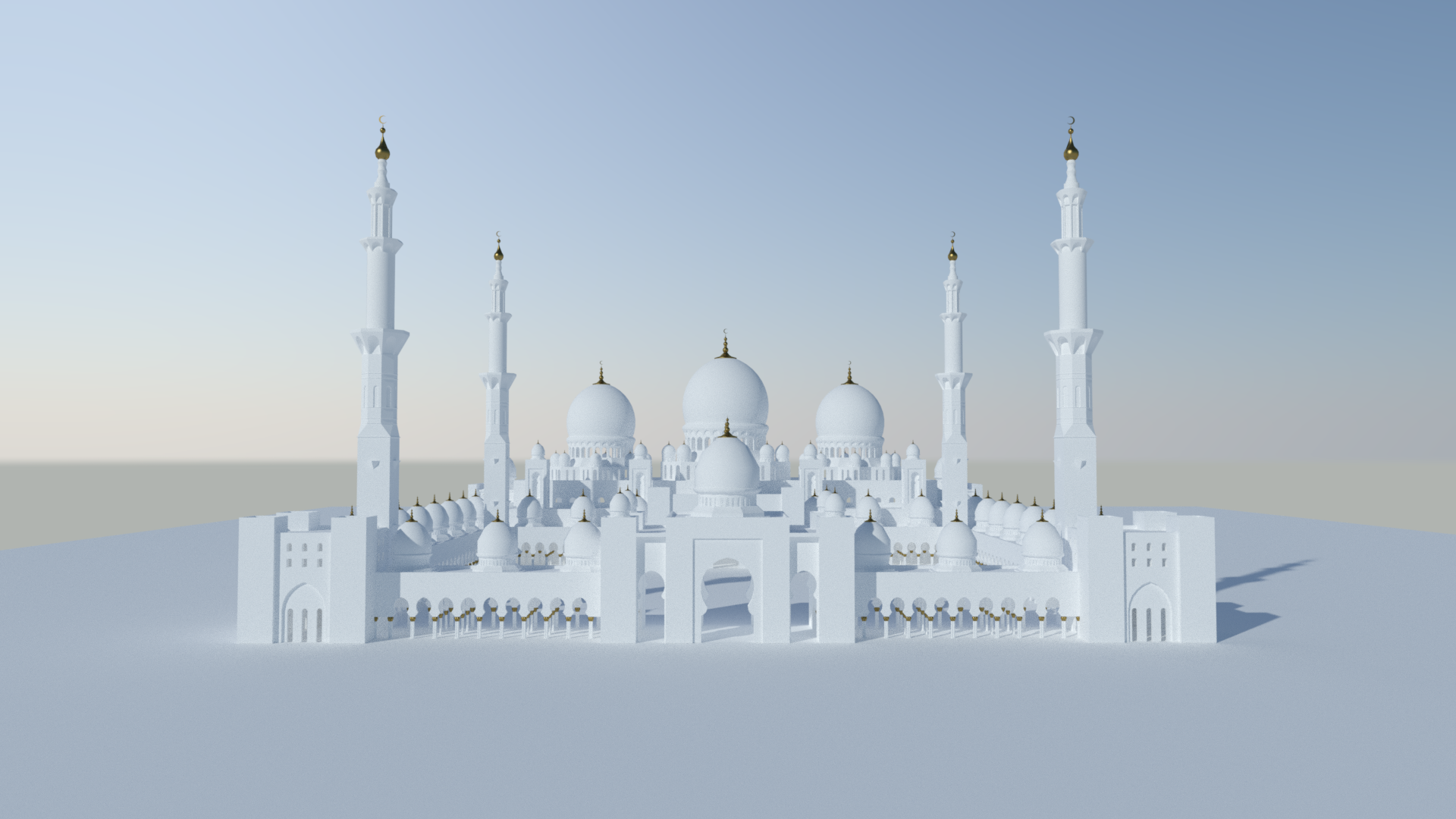

Mosquée Cheikh Zayed is located in Abu Dhabi and it has a 22412 sqm surface which make it as one of the biggest mosque of the world. The construction spend approximatively 12 years. There is not less than 82 domes and 1048 columns. The biggest dome is 32m wide and 85m high from the ground.
