Constructive CAD CE • Modeling in AutoCAD

  BMEEPAG0249 • elective course • 2015-16-1

Berk Atalay

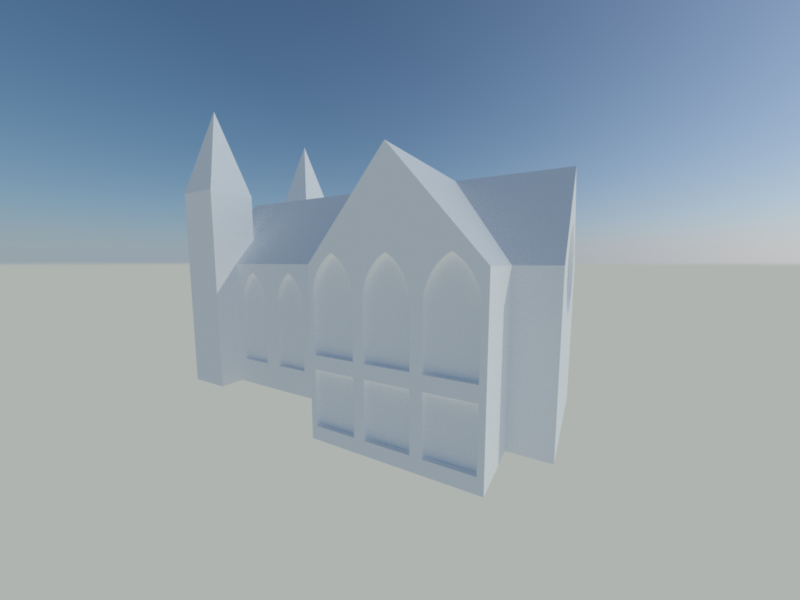

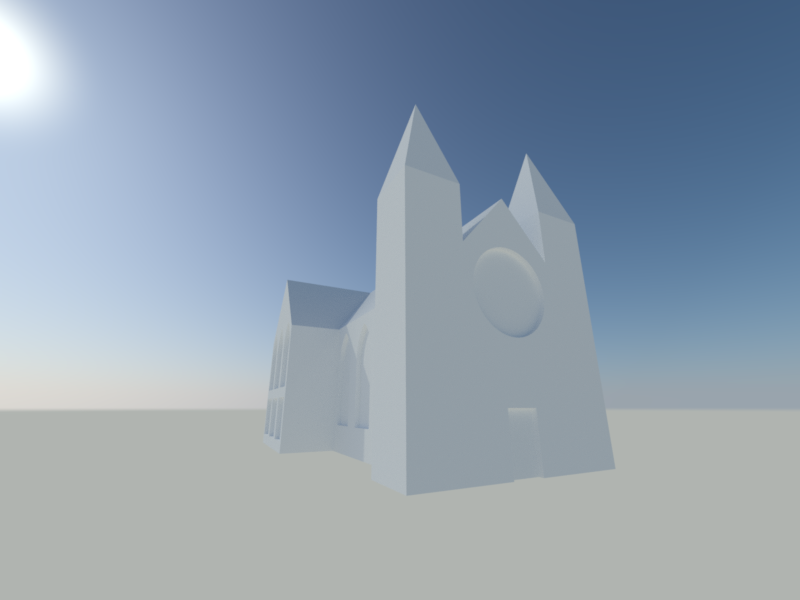

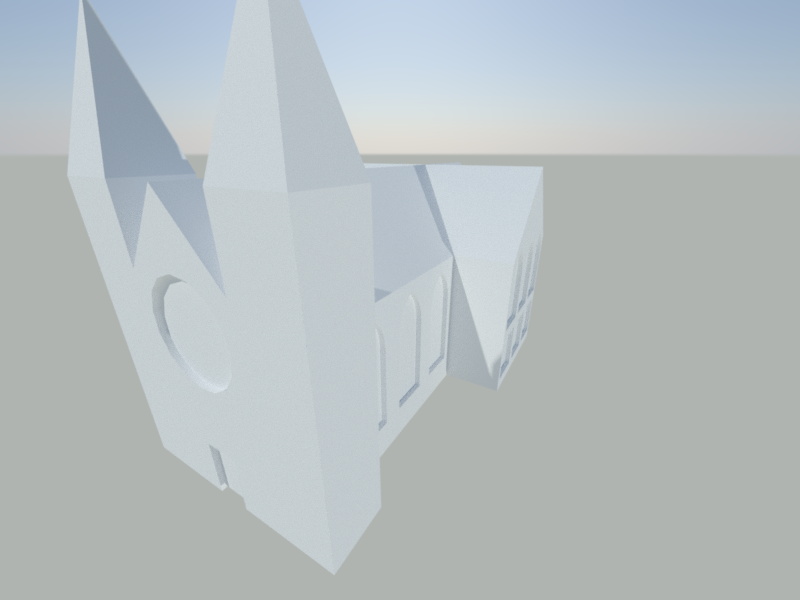

Simple Model

This is a simple AutoCAD model that I made off the top of my head.

Pictures

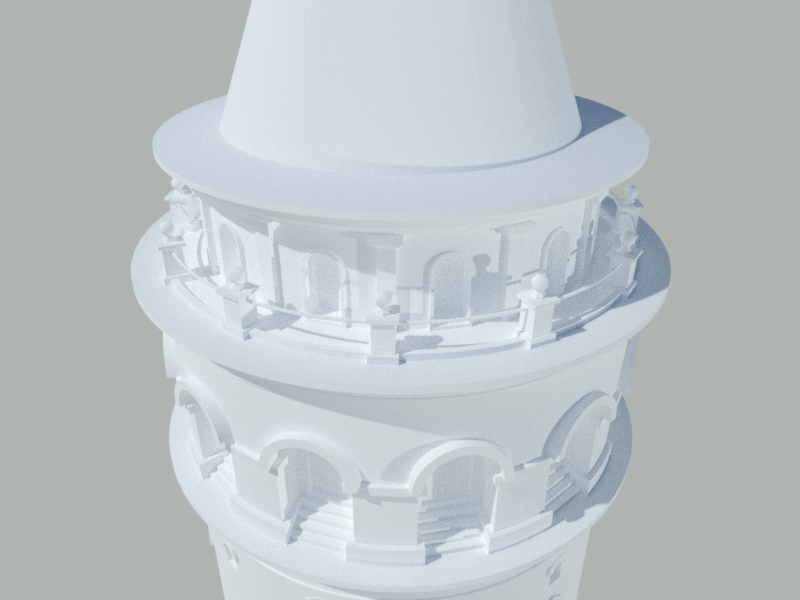

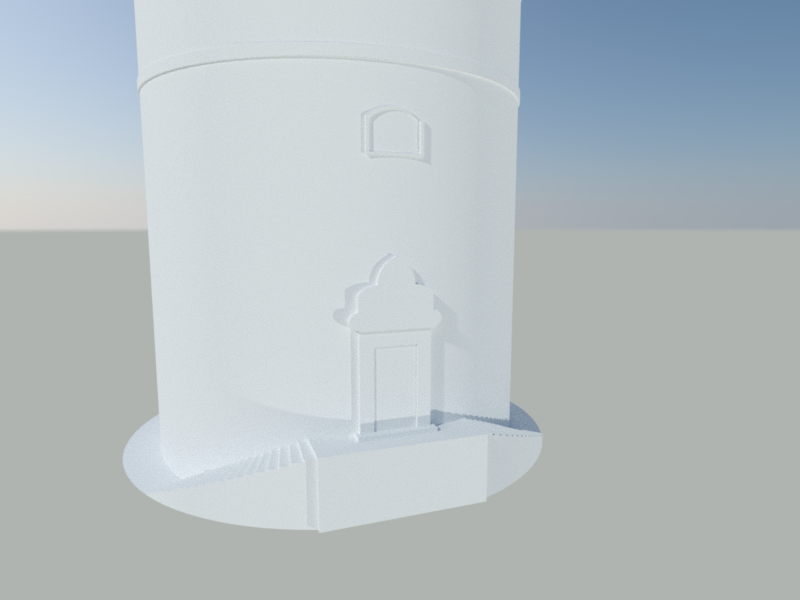

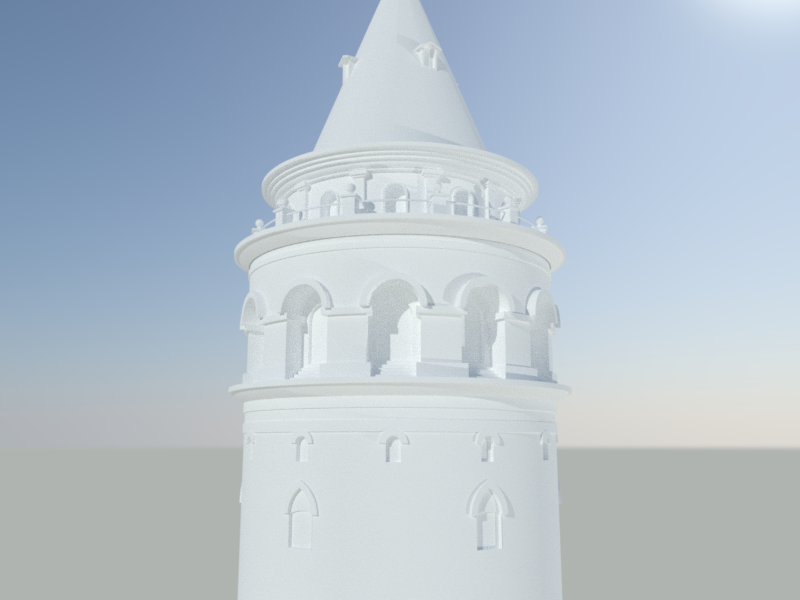

Complex Model

This is the Galata Tower. Formally known as The Tower of Christ. It is some 700 years old and built by the Byzantine Empire. It resides in Istanbul where it was used by the Ottoman Empire to spot fires throughout the city. Nowadays it is a restaurant and after dark, a night-club. It is said to have the best view in Istanbul (which is quite the view I imagine). See the .ZIP file for the actual pictures.

Pictures
