Constructive CAD CE • Modeling in AutoCAD

  BMEEPAG0249 • elective course • 2015-16-1

Elif Ceren YILMAZ

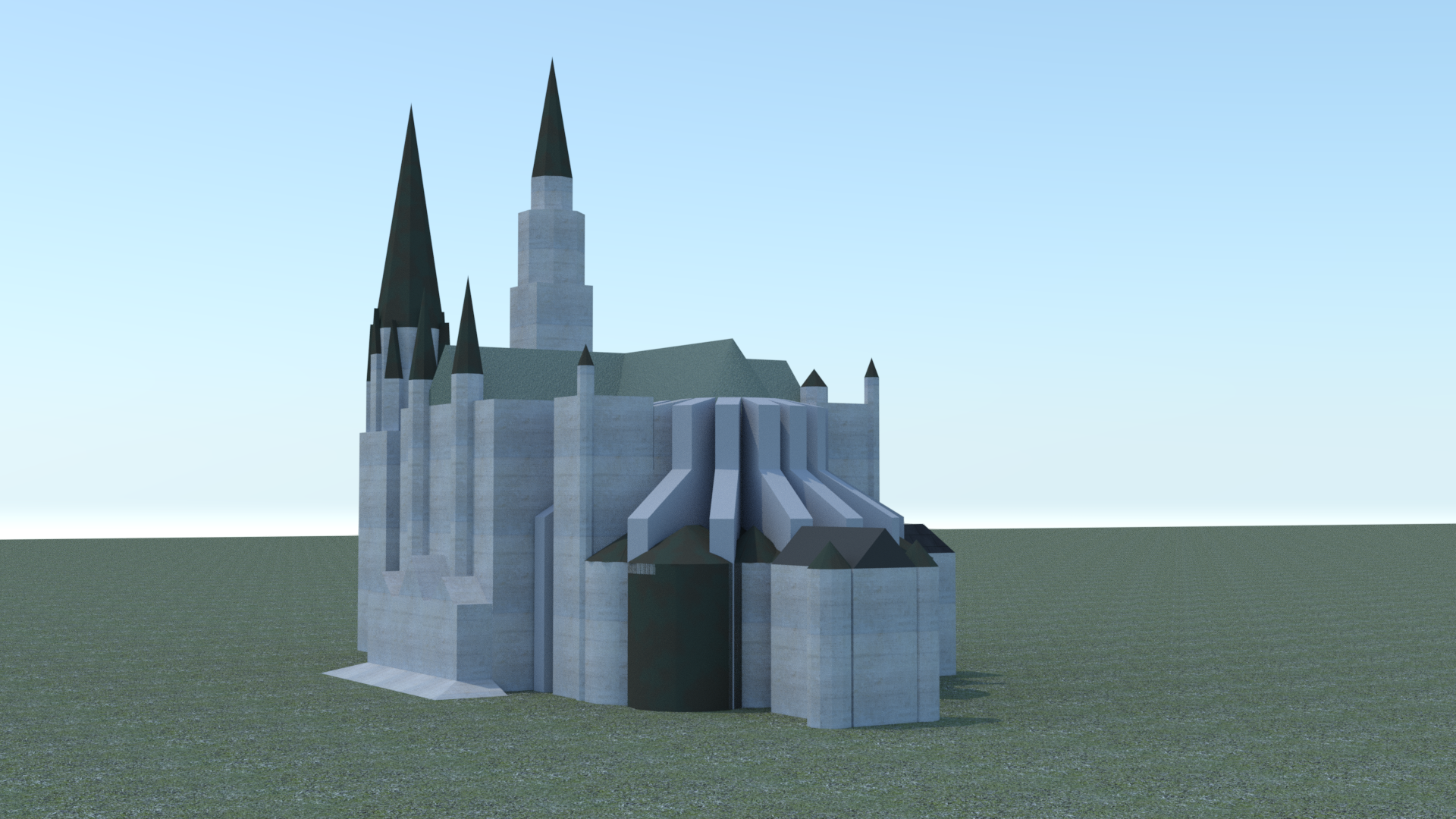

Simple Model

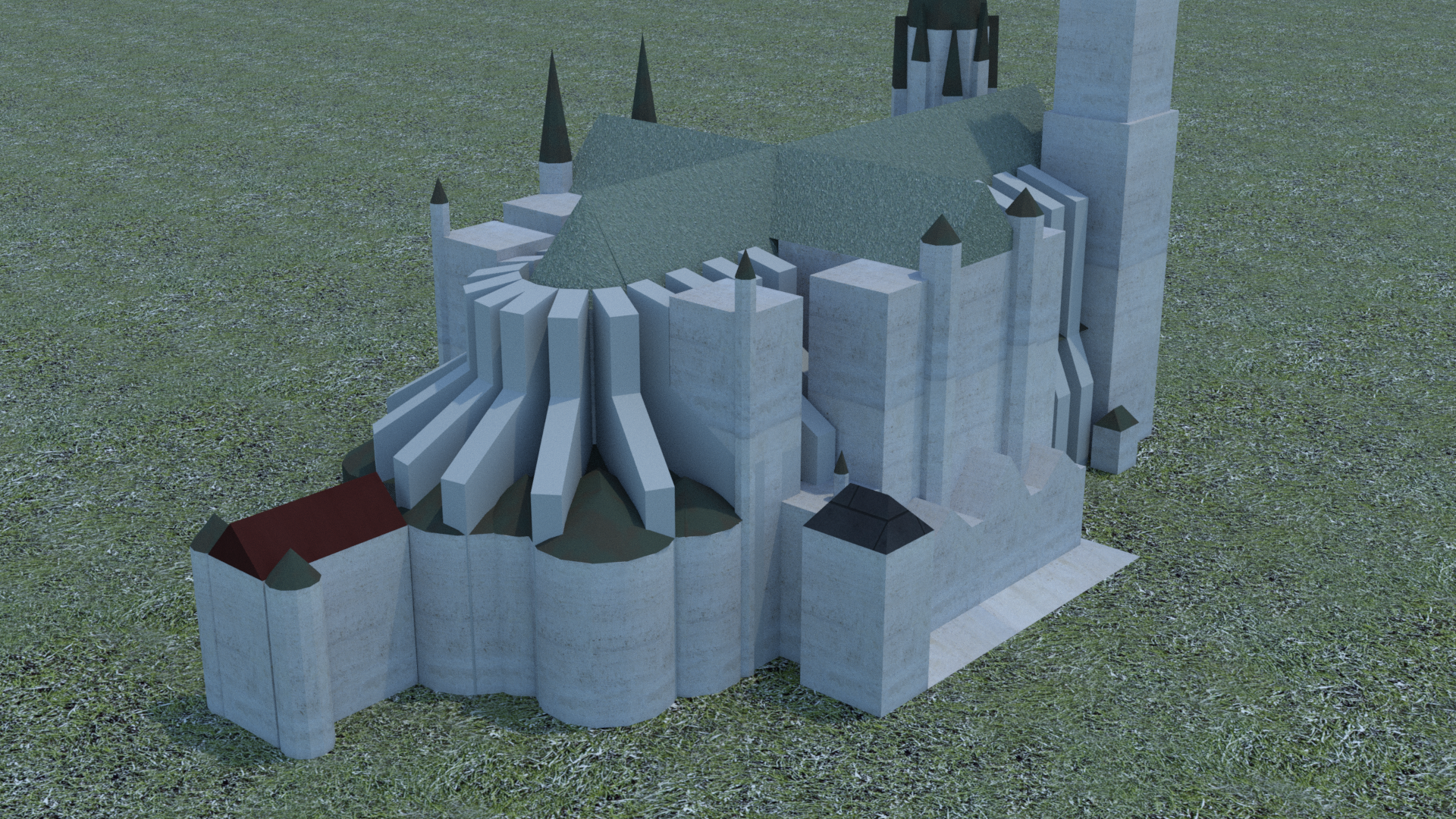

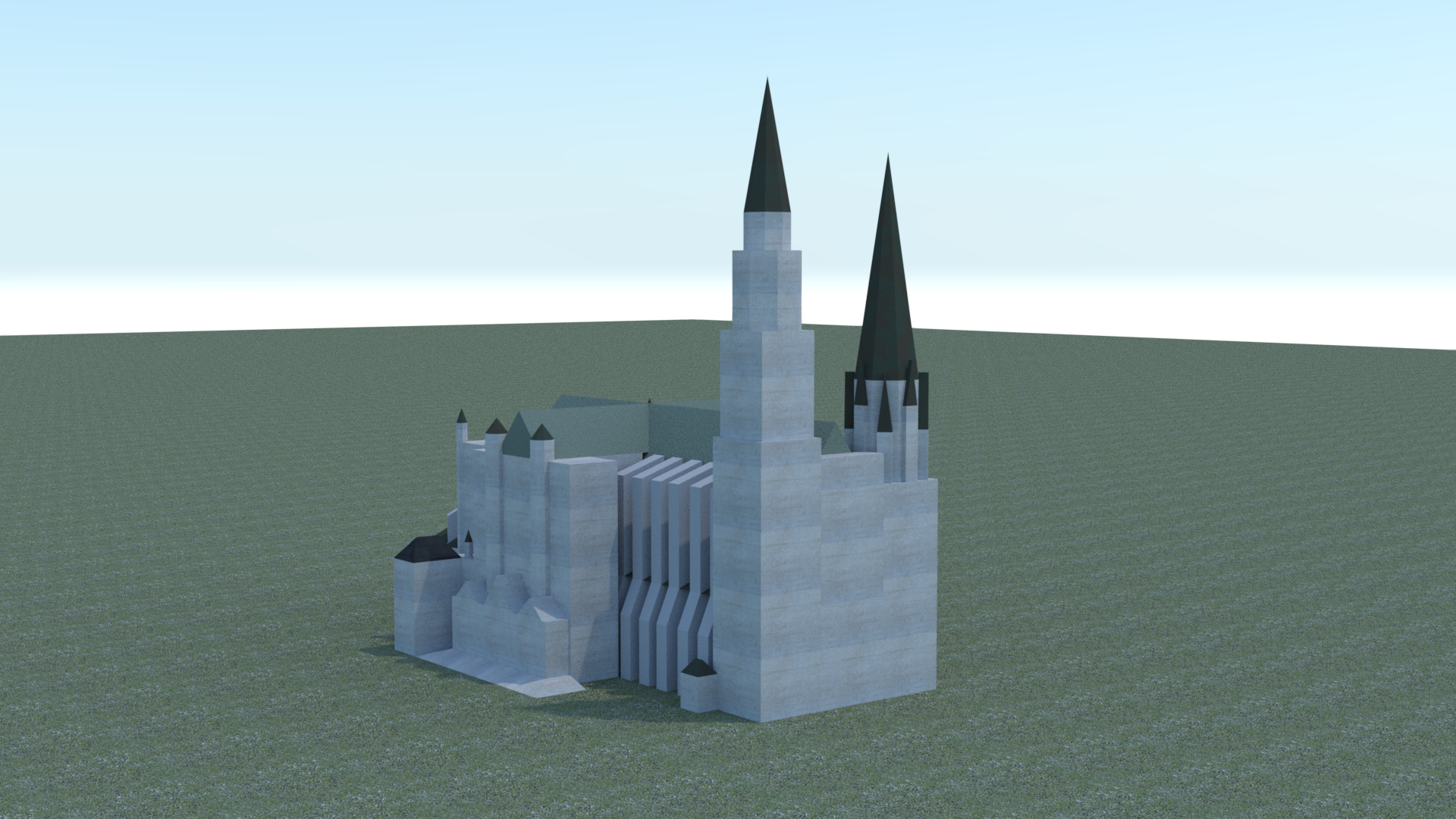

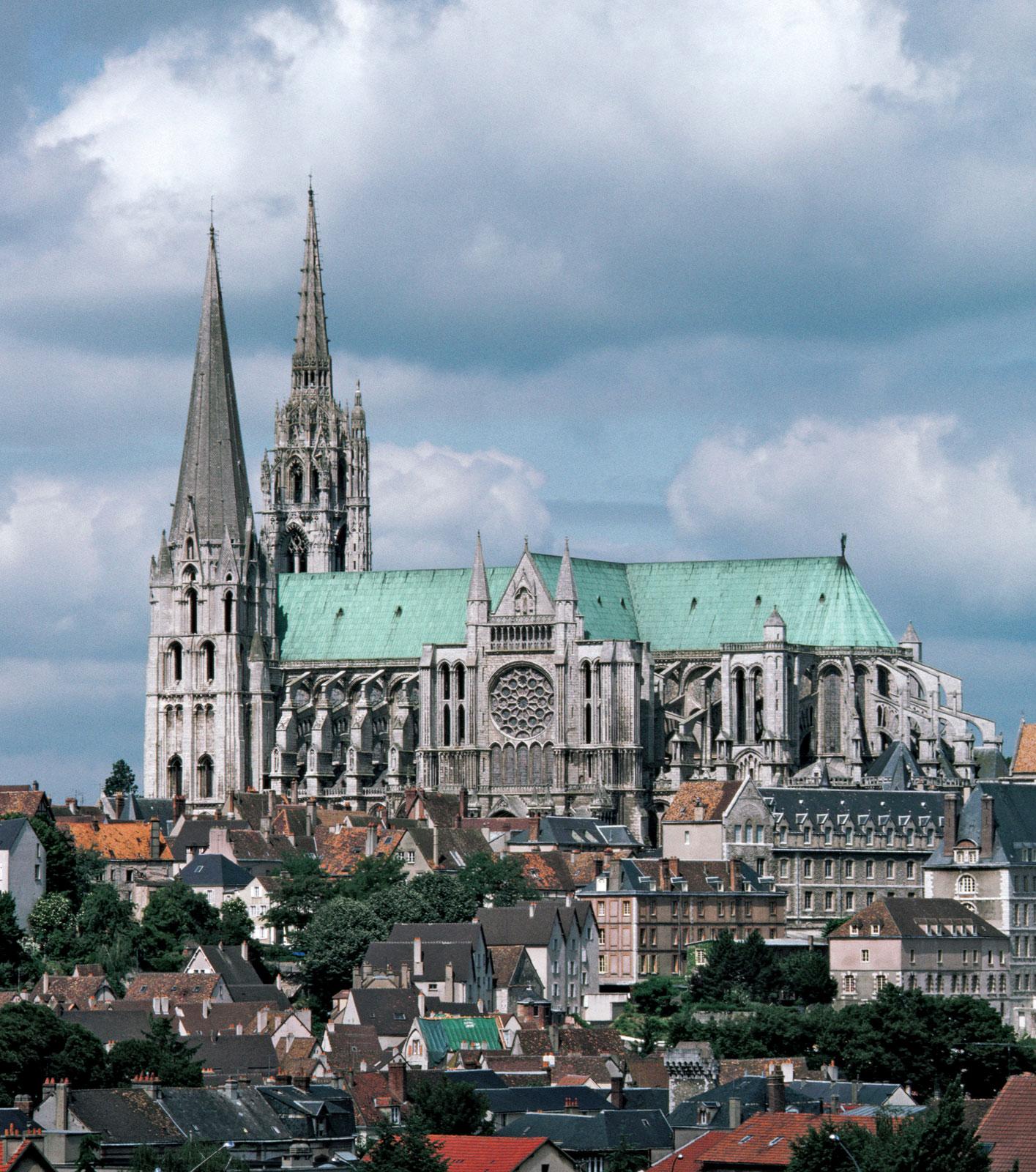

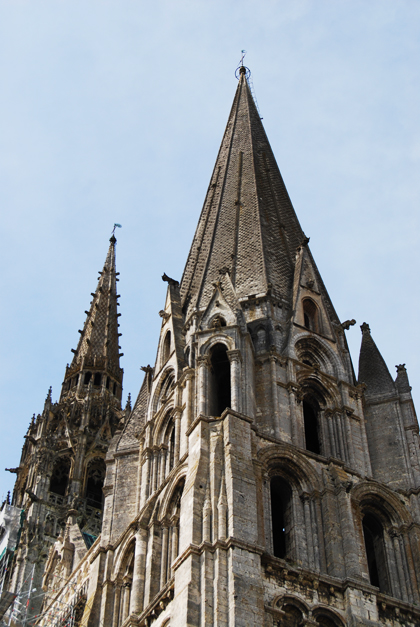

Chartres Cathedral, also known as the Cathedral of Our Lady of Chartresis a Gothic Catholic cathedral of the Latin Church located in Chartres, France, mostly constructed between 1194 and 1220. The cathedral is in an exceptional state of preservation and it is called as "the high point of French Gothic art" and a "masterpiece" by UNESCO.

Pictures



Complex Model

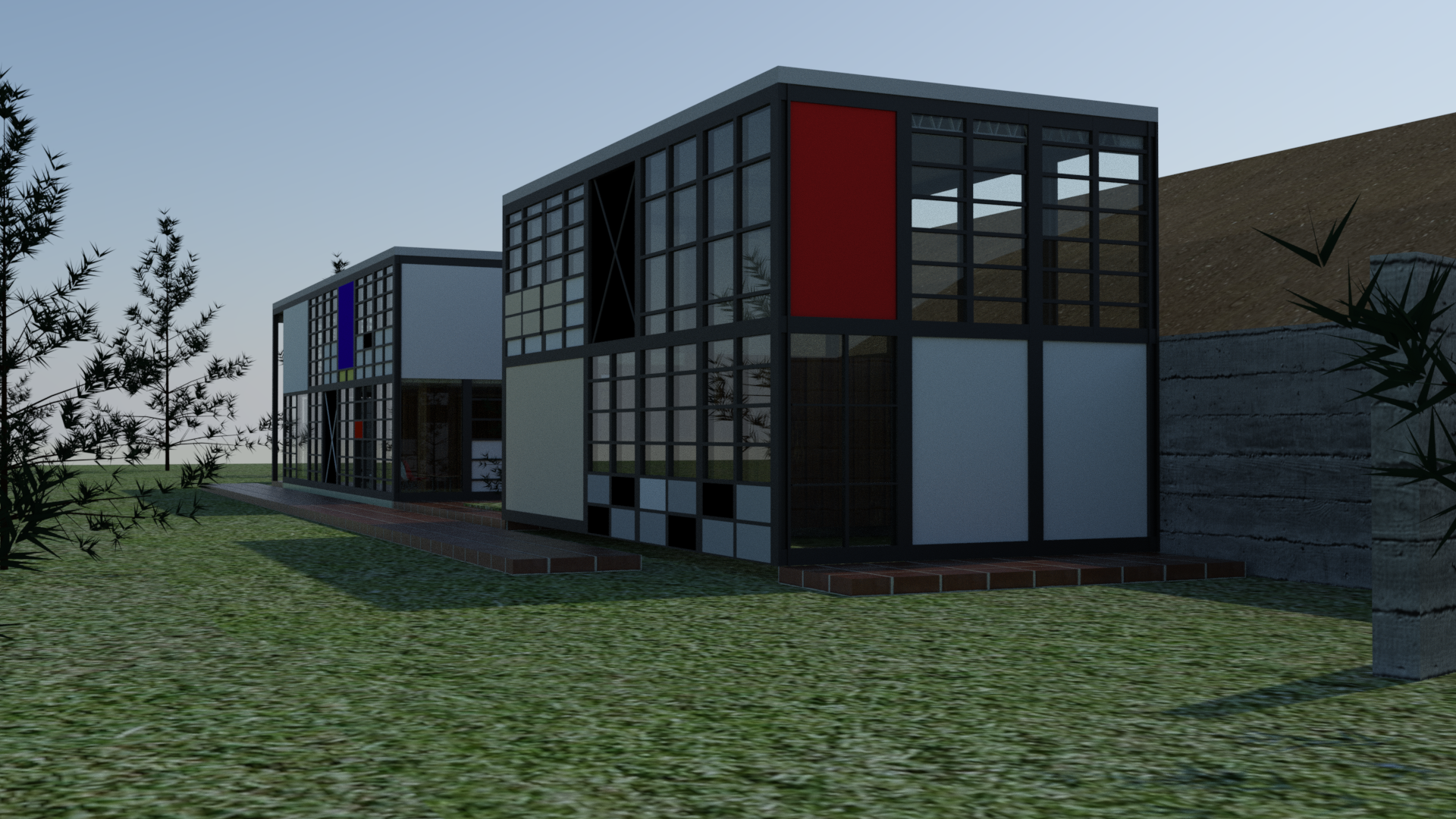

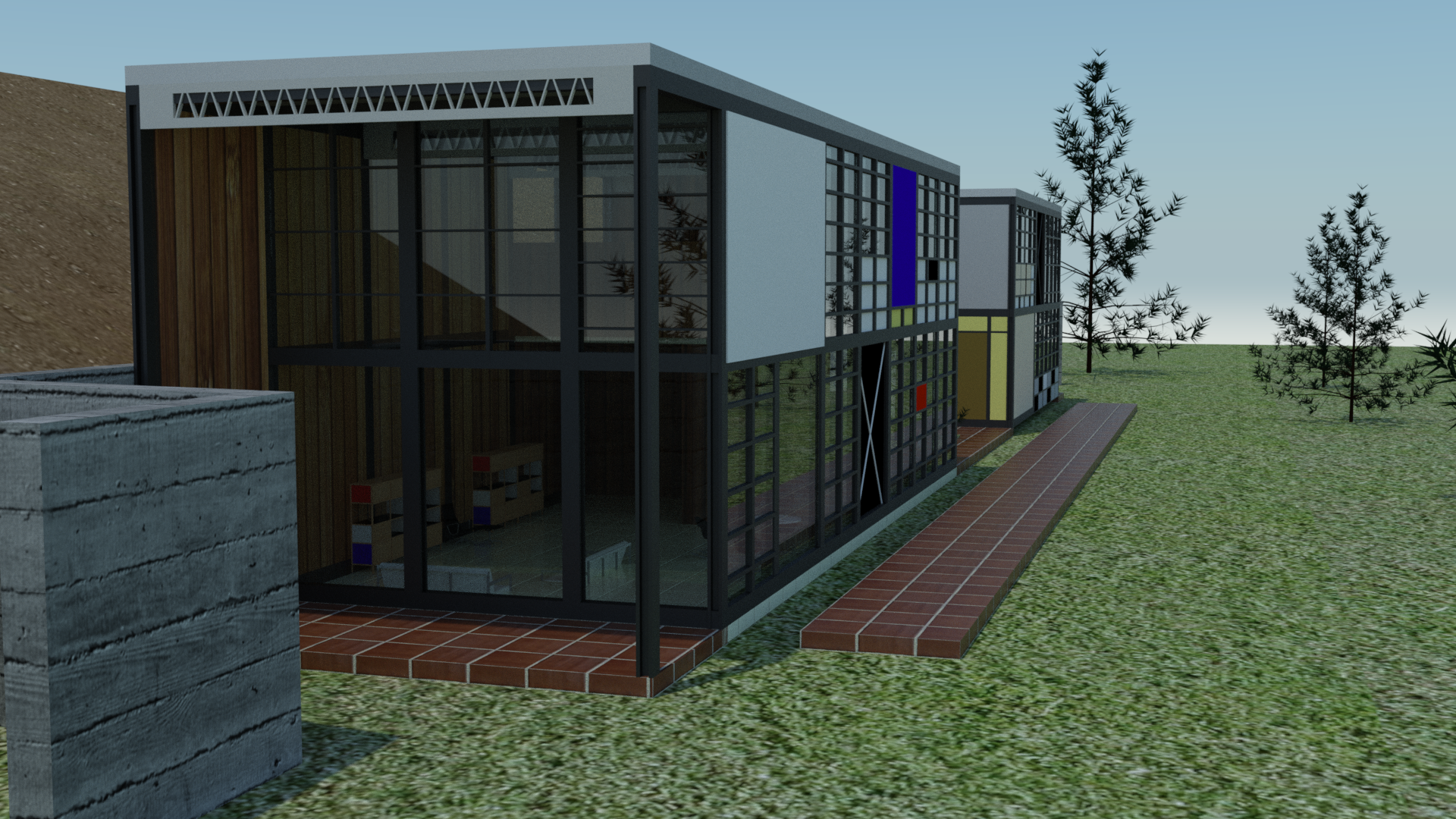

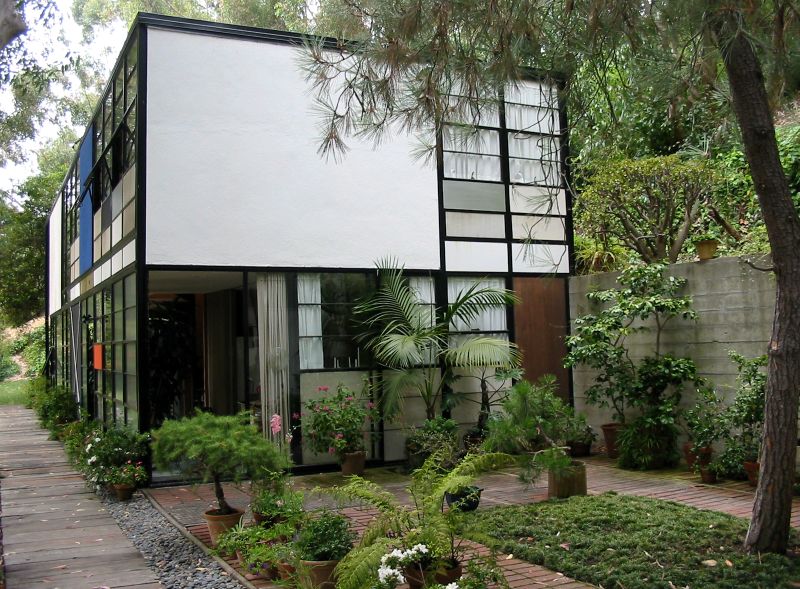

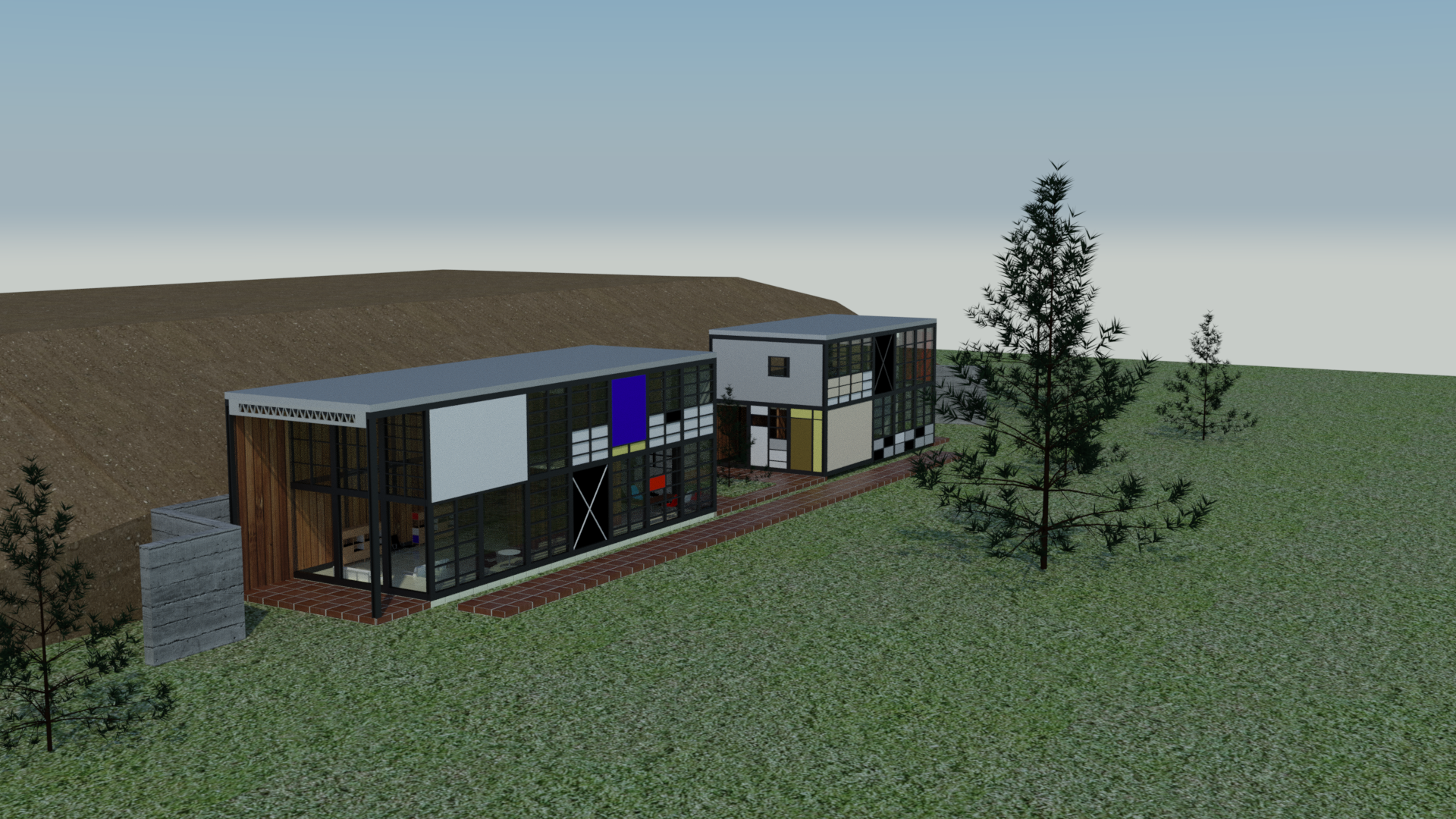

The Eames House, also known as Case Study House No. 8, is a landmark of mid-20th century modern architecture located in the Pacific Palisades neighborhood of Los Angeles. It was designed and constructed in 1949 by husband-and-wife Charles and Ray Eames to serve as their home and studio. They lived in their home until their deaths: Charles in 1978 and Ray, ten years to the day, in 1988. Design idea was to hypothesize a modern household, elaborate its functional requirements, have an esteemed architect develop a design that met those requirements using modern materials and construction processes, and then to actually build the home.

Pictures
