Simple Model

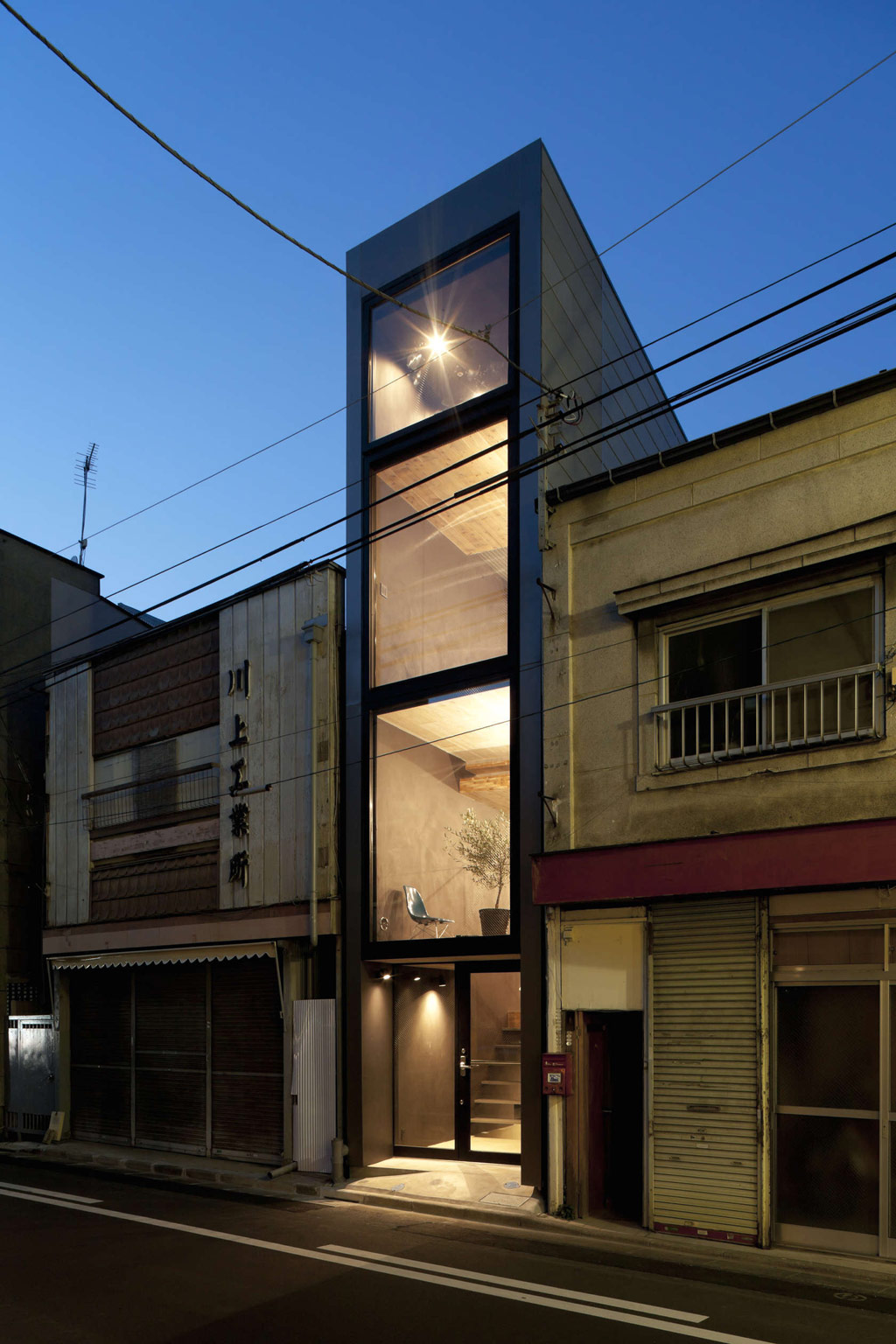

Finding an empty piece of land on which to build is basically impossible at this point, at least in large cities. But this doesn’t completely eliminate the idea of building a new house. It just means we have to find new ways of doing it and that we have to think outside the box. The solution that YUUA Architects & Associates found in Toshima, Japan is quite interesting.They managed to build a house on a lot that measures 2.5 by 11 meters. As you can imagine, the house is really narrow and long. It has four main levels that overlap each other and a glass facade that exposes it to the street and the surroundings while letting light in.


[bita-1-1]  [PICTURE]  [PICTURE]


Complex Model

The Parthenon is a temple in the middle of the Acropolis in Athens, Greece (Europe). It was a temple to honor the god Athena for nearly 900 years, and originally had a huge idol to her. The name Parthenon means the virgin's place in Greek.[1] It was built between 447 BC and 432 BC during the reign of Pericles.[1] It is considered one of ancient Greece's greatest architecture accomplishments.[1] The building was constructed using limestone foundations and 22,000 tons of marble. The building was designed by the architects Ictinus and Callicrates.[1] It has 46 Doric columns which support the roof, with 8 across the front and back, and 17 on each side.[1] In 1687 a gunpowder explosion damaged the building. Thomas Bruce, 7th Earl of Elgin took some of the sculptures, now called the Elgin Marbles, from the Parthenon in 1759. They have been on display in the British Museum since 1816..
