Constructive CAD CE • Modeling in AutoCAD

  BMEEPAG0249 • elective course • 2018-19-1

Mohammed Adnan Samman

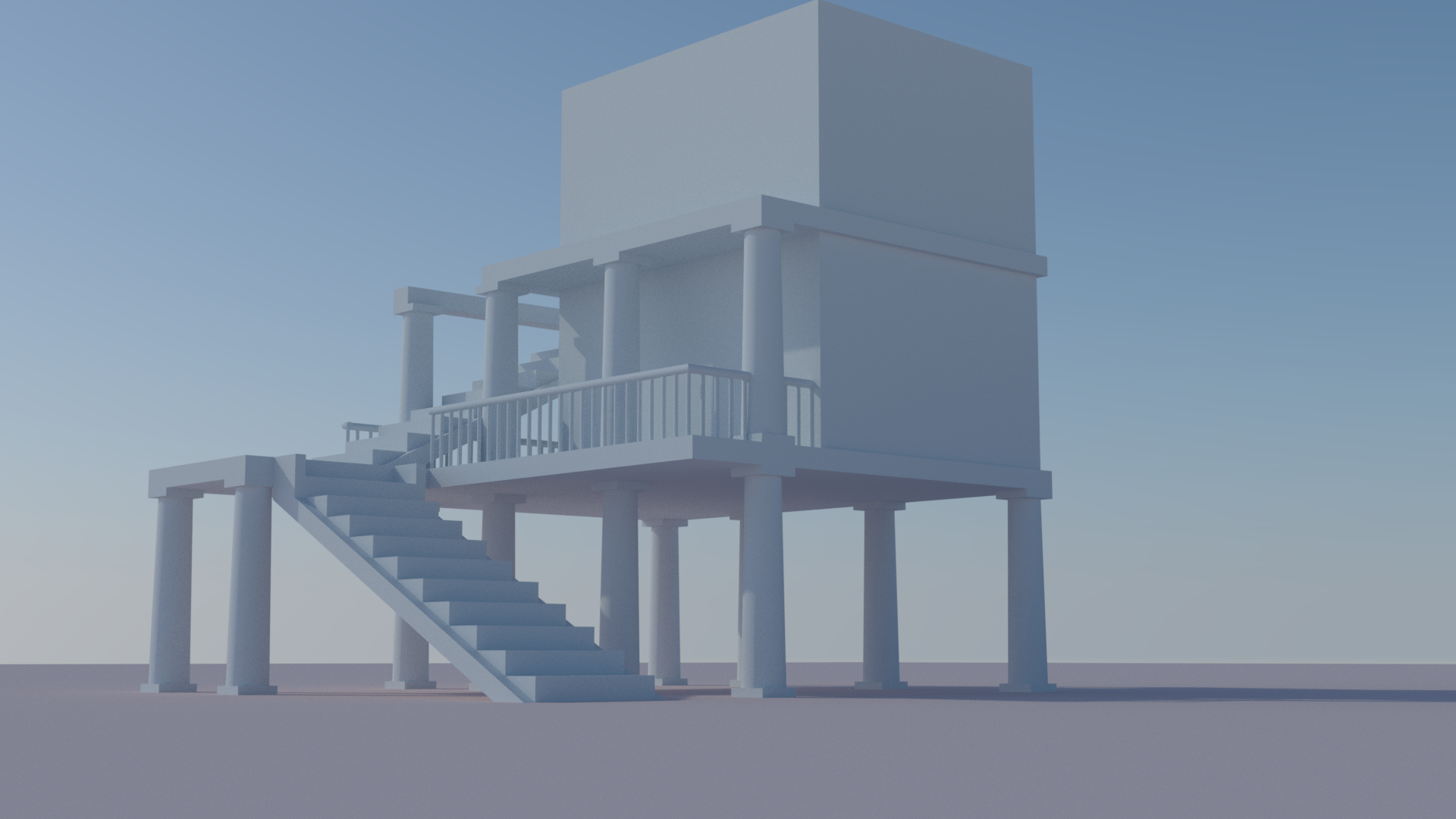

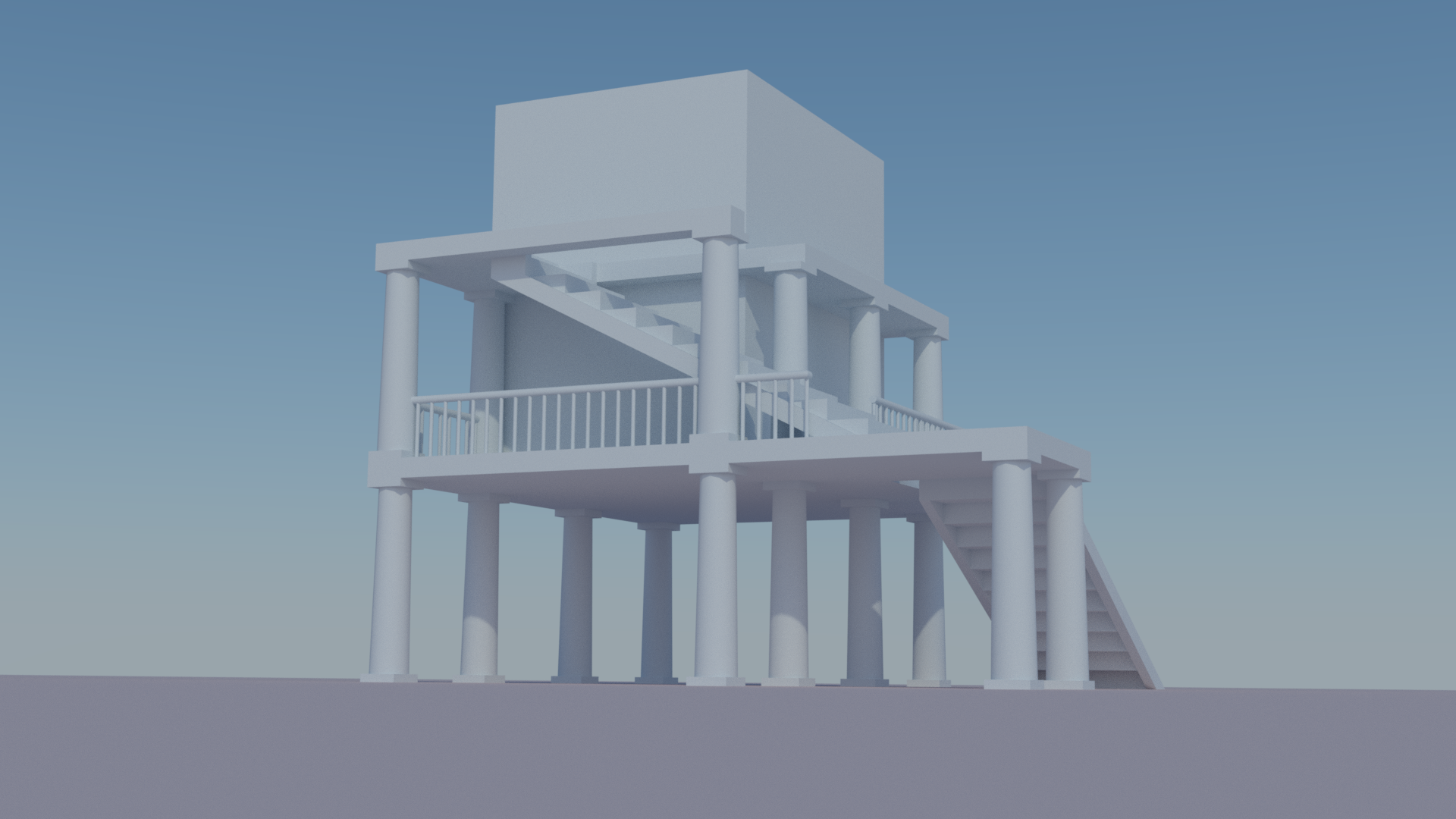

Simple Model

Its an own creation. I thought it up while I was researching for another project.

Pictures

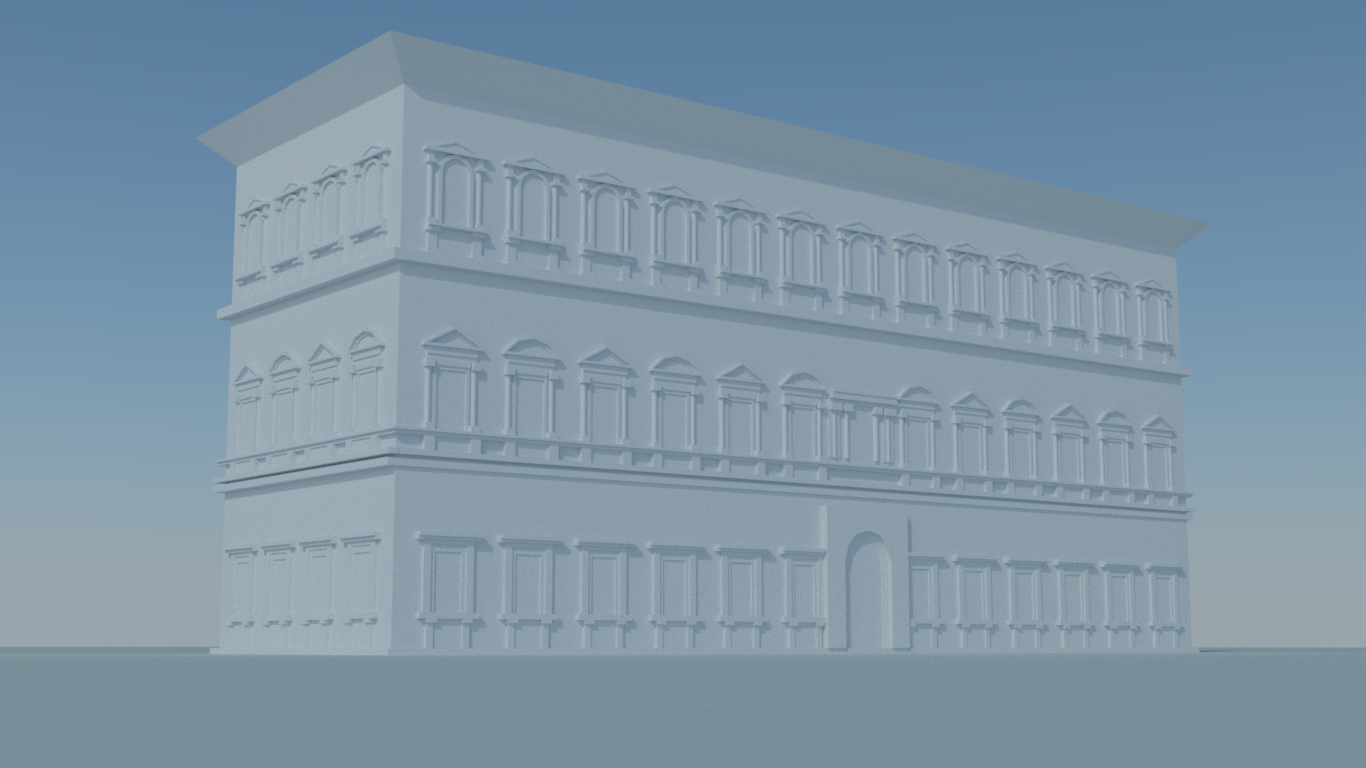

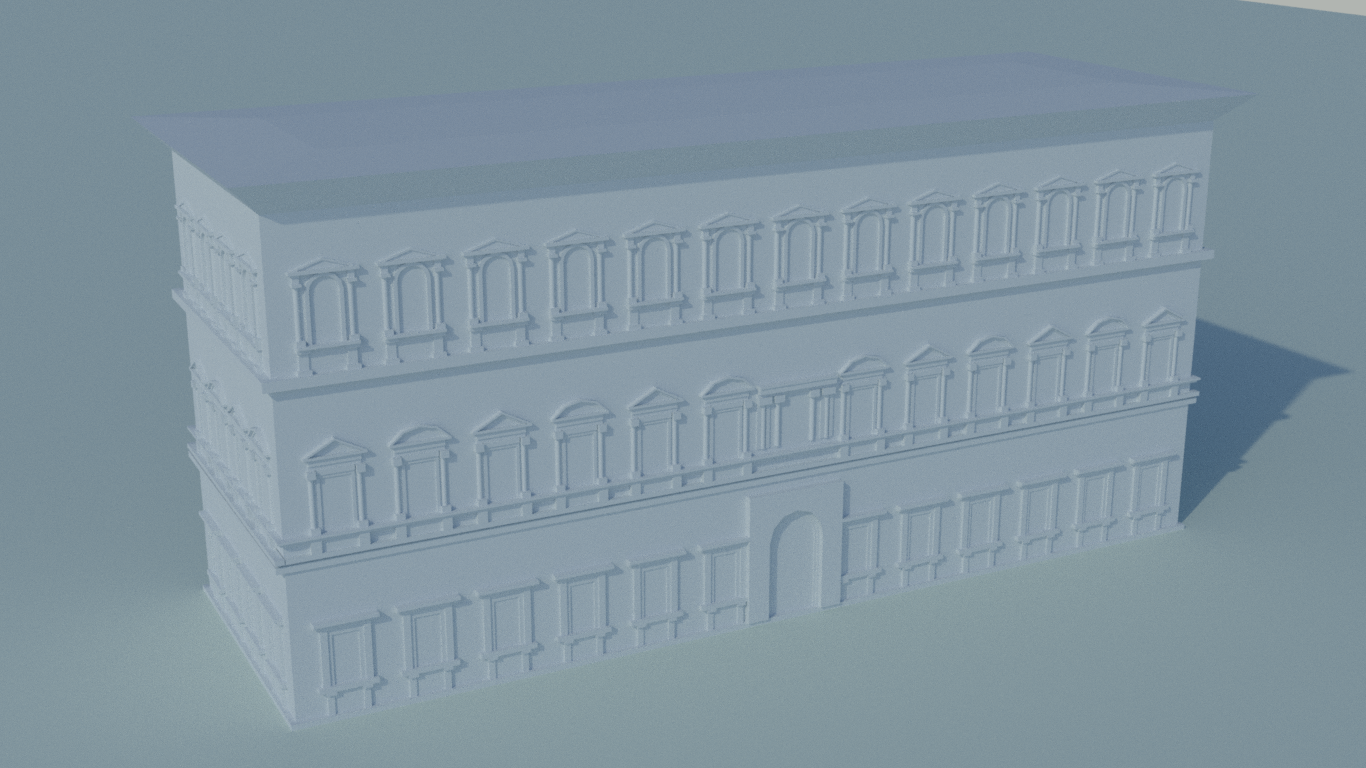

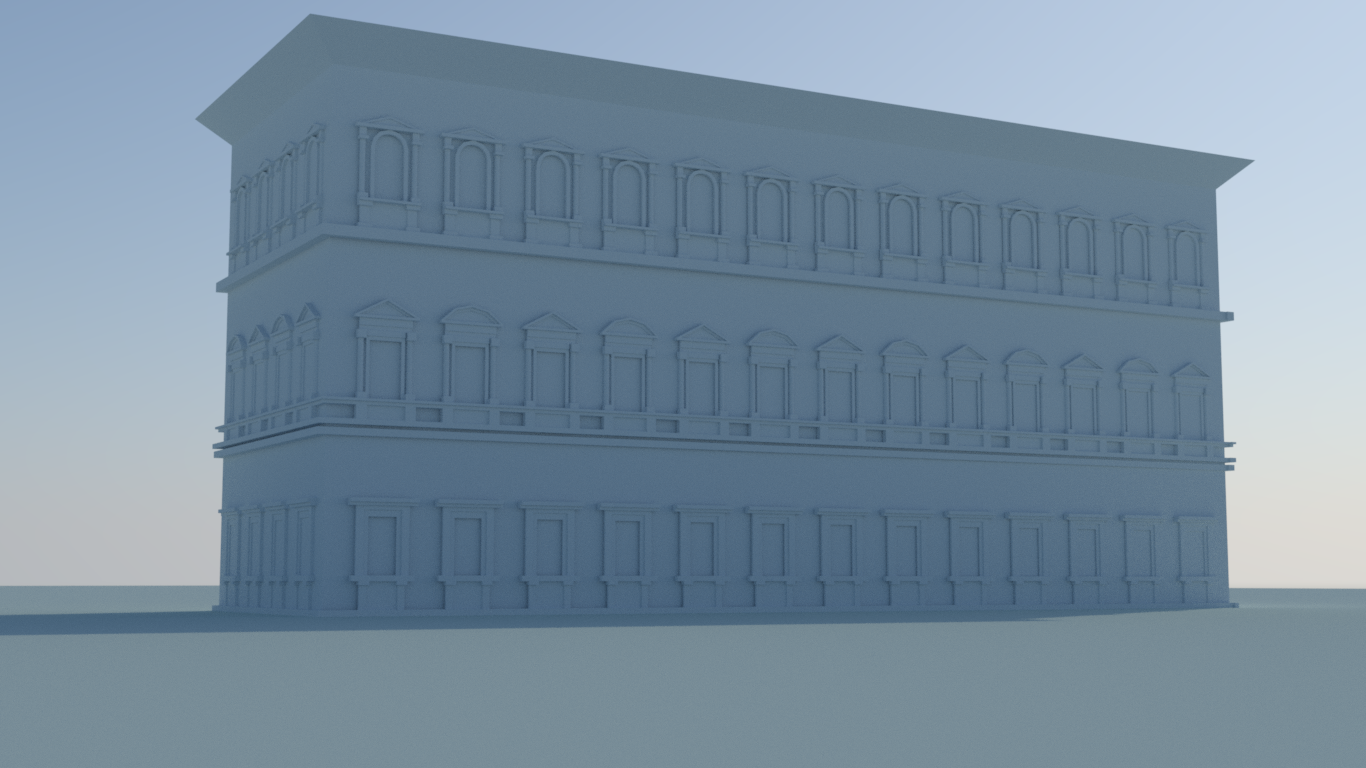

Complex Model

First designed in 1517 for the Farnese family, the building expanded in size and conception when Alessandro Farnese became Pope Paul III in 1534, to designs by Antonio da Sangallo the Younger. Its building history involved some of the most prominent Italian architects of the 16th century, including Michelangelo, Jacopo Barozzi da Vignola and Giacomo della Porta.

Pictures
