Constructive CAD CE • Modeling in AutoCAD

  BMEEPAG0249 • elective course • 2019-20-2

Tergel Myagmar

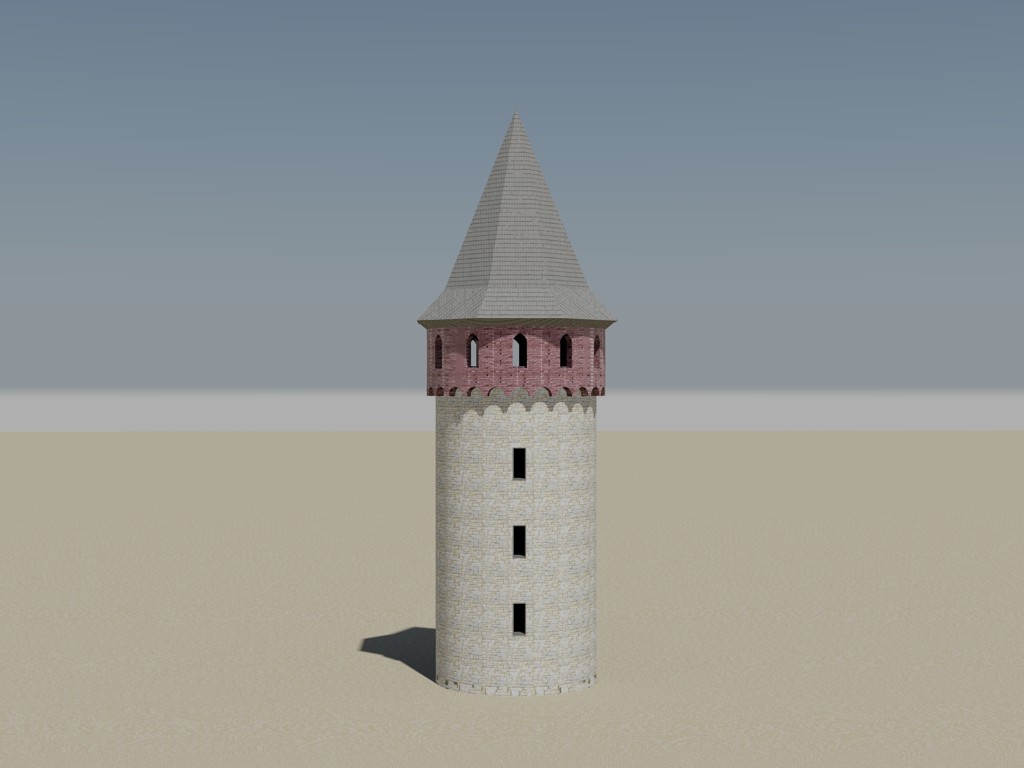

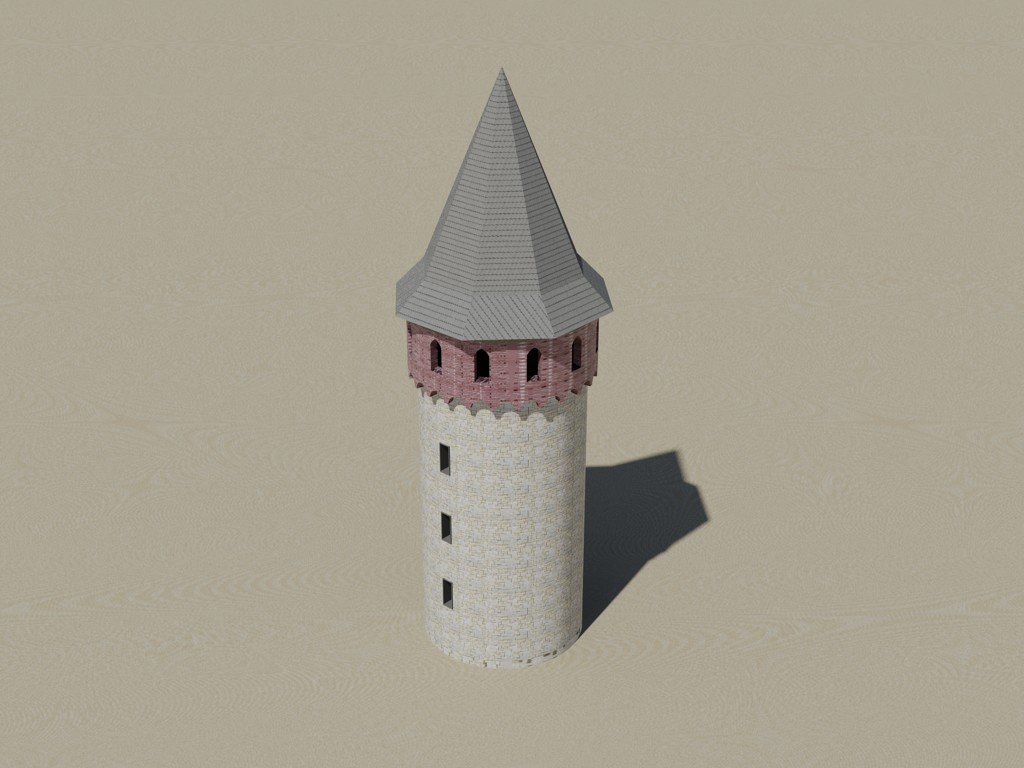

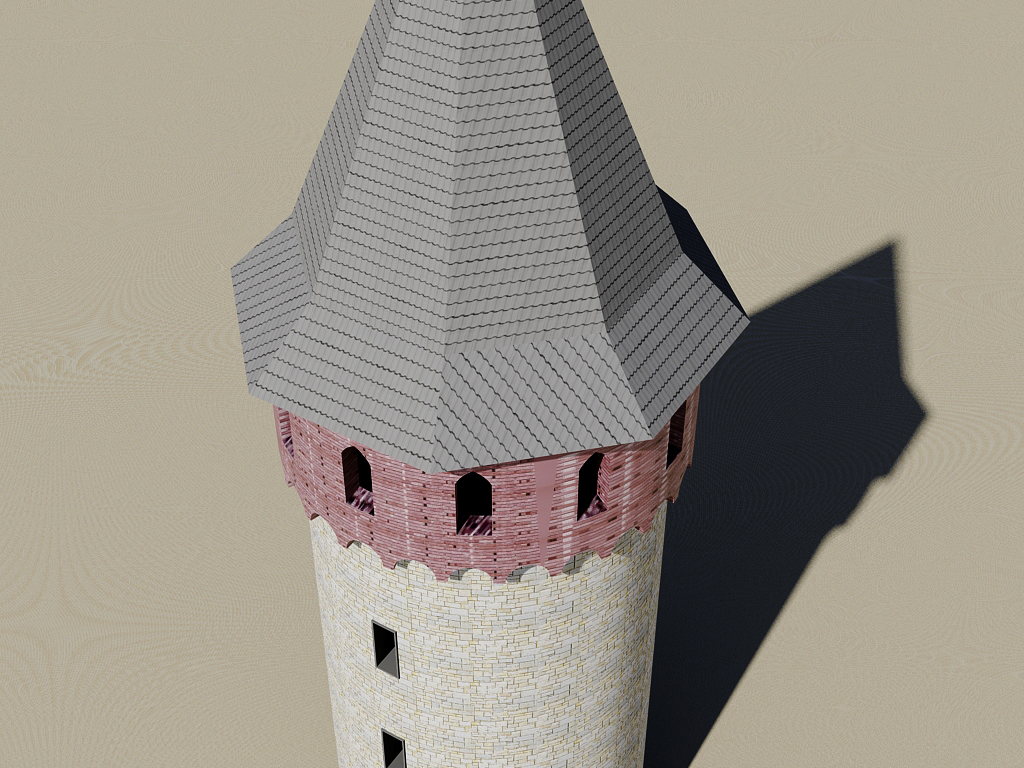

Simple Model - Kamianets-Podilskyi Castle

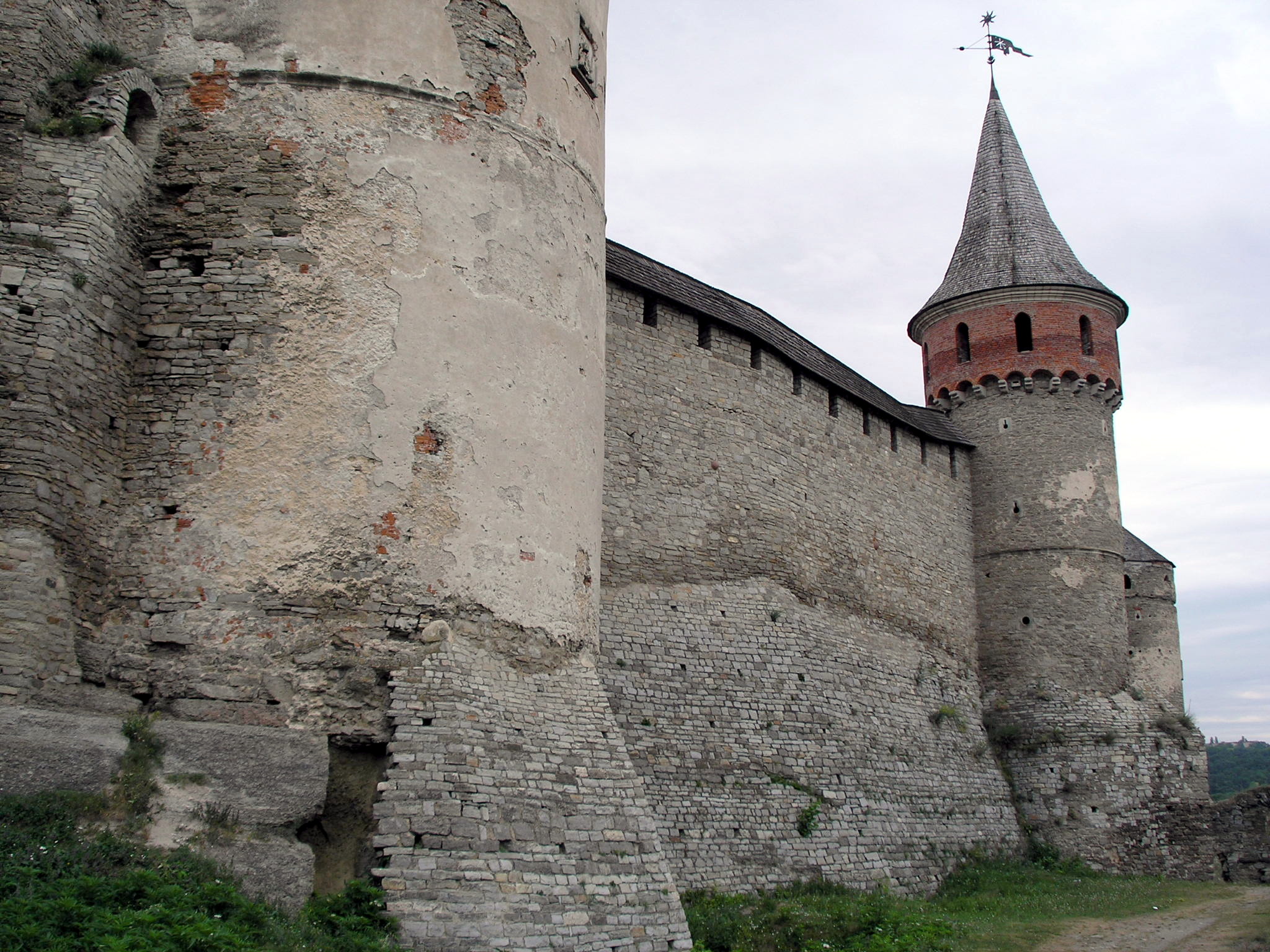

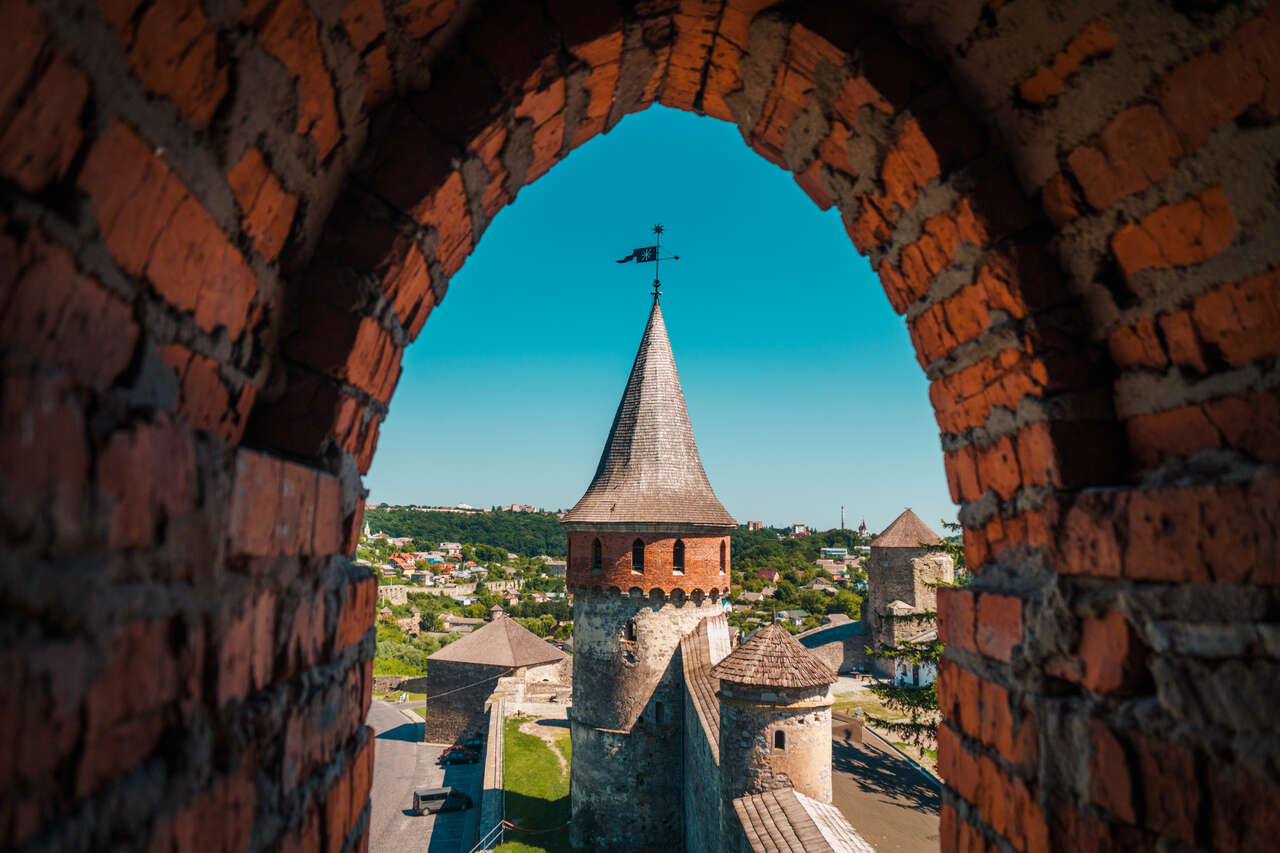

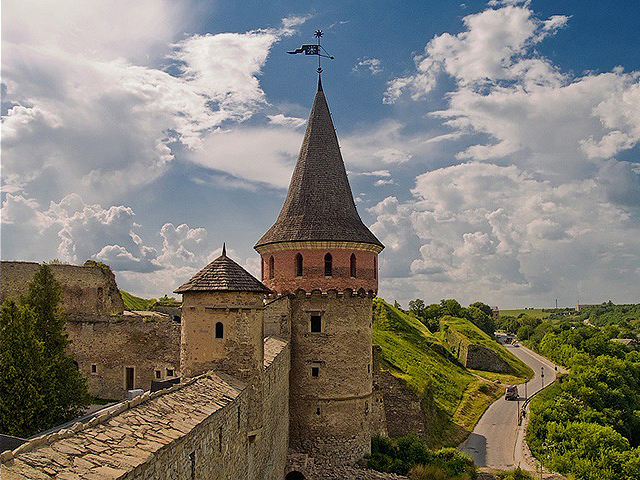

Short explanation - Kamianets-Podilskyi Castle is a former Ruthenian-Lithuanian castle and located in Kamianets-Podilskyi, Ukraine. Kamianets-Podilskyi Castle rests on a limestone formation surrounded by the Smotrych River canyon. Consequently, its foundations were built using limestone, as well as local and imported brick and stone. Indeed, the castle's name is attributed to the root kamin', from the Slavic word for stone. The two main parts of the castle, the Old Castle and the New Castle, were built during different periods.

Pictures



Complex Model - Dome of the rock

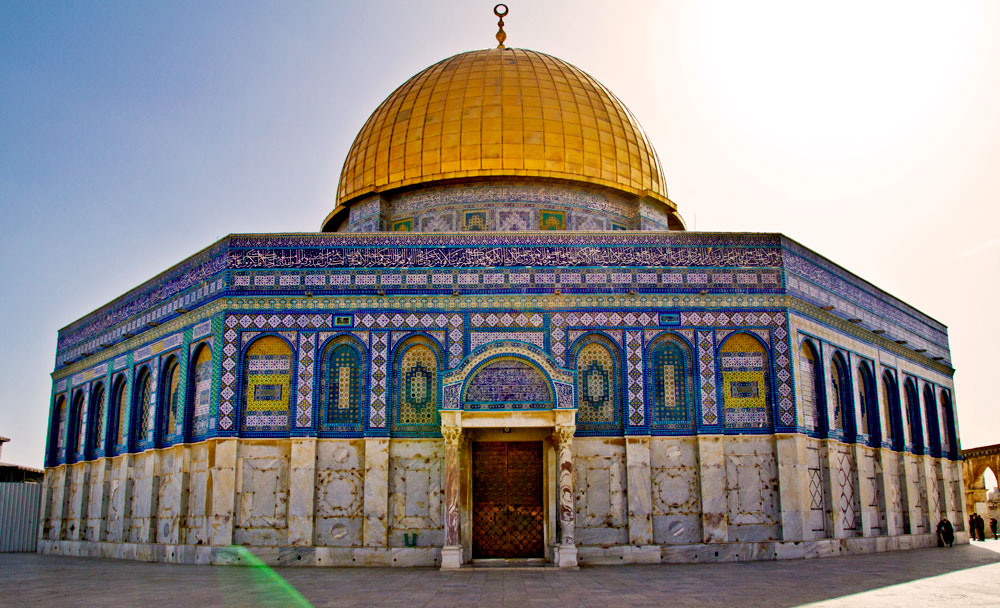

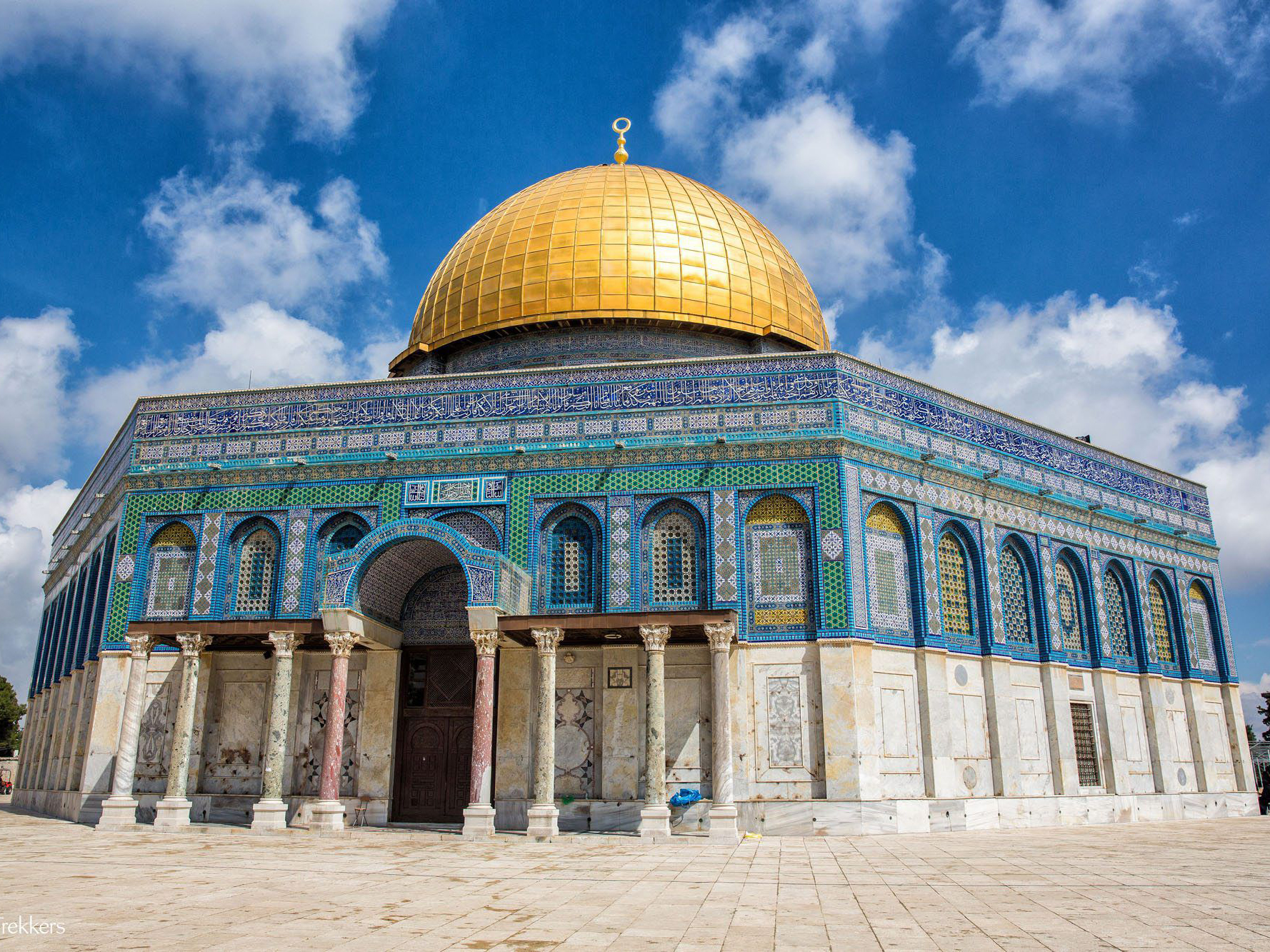

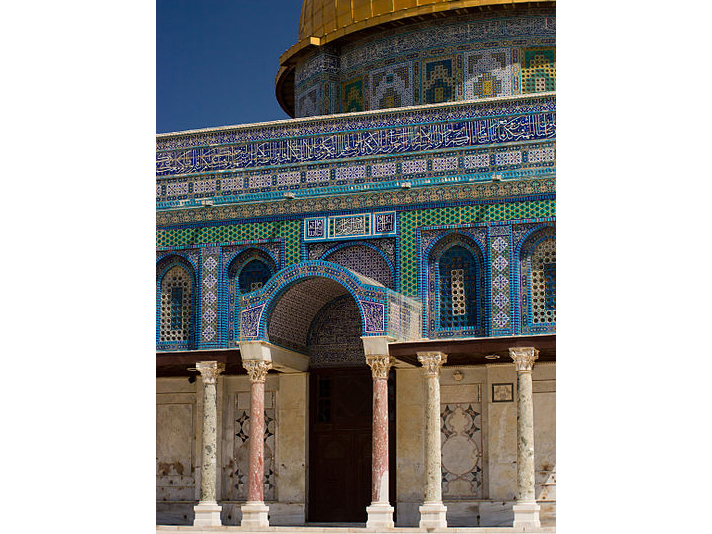

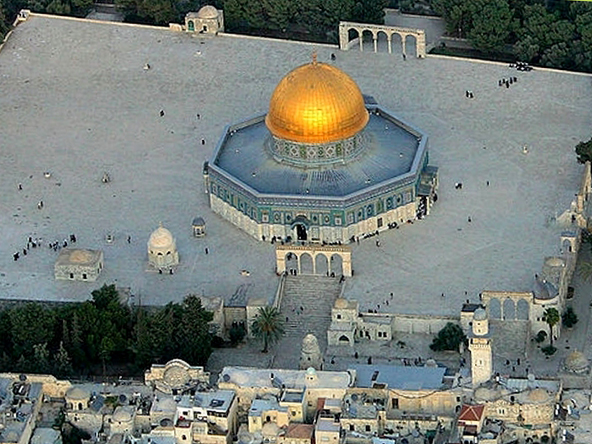

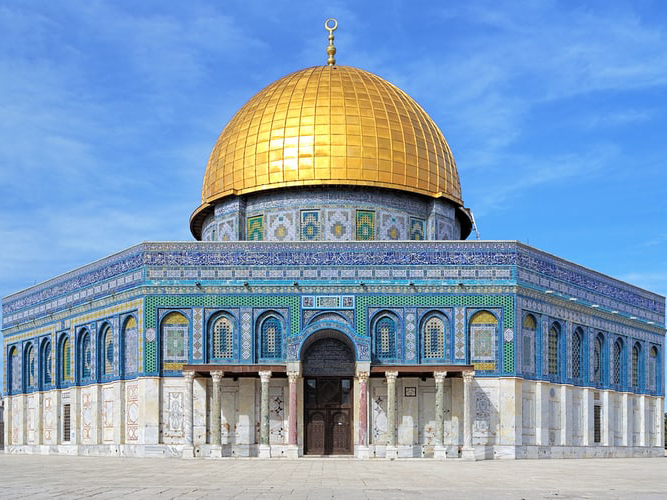

Short explanation - The Dome of the Rock is an Islamic shrine located on the Temple Mount in the Old City of Jerusalem. It was initially completed in 691–92 CE at the order of Umayyad Caliph Abd al-Malik during the Second Fitna on the site of the Second Jewish Temple, destroyed during the Roman Siege of Jerusalem in 70 CE. The original dome collapsed in 1015 and was rebuilt in 1022–23. The Dome of the Rock is in its core one of the oldest extant works of Islamic architecture. The structure, positioned near the centre of a wide raised platform, comprises an octagonal base topped by a gilded wooden central dome. The dome, which is approximately 65 feet (20 metres) in diameter and is mounted on an elevated drum, rises above a circle of 16 piers and columns. Surrounding this circle is an octagonal arcade of 24 piers and columns. Below the dome a portion of the sacred rock is exposed and protected by a railing. A stairway leads to a natural cave beneath the surface of the rock. The outer walls also form an octagon, with each of the eight sides being approximately 60 feet (18 metres) wide and 36 feet (11 metres) high.

Pictures
