Constructive CAD CE • Modeling in AutoCAD

  BMEEPAG0249 • elective course • 2021-22-1

Tzavida Maria

Simple Model

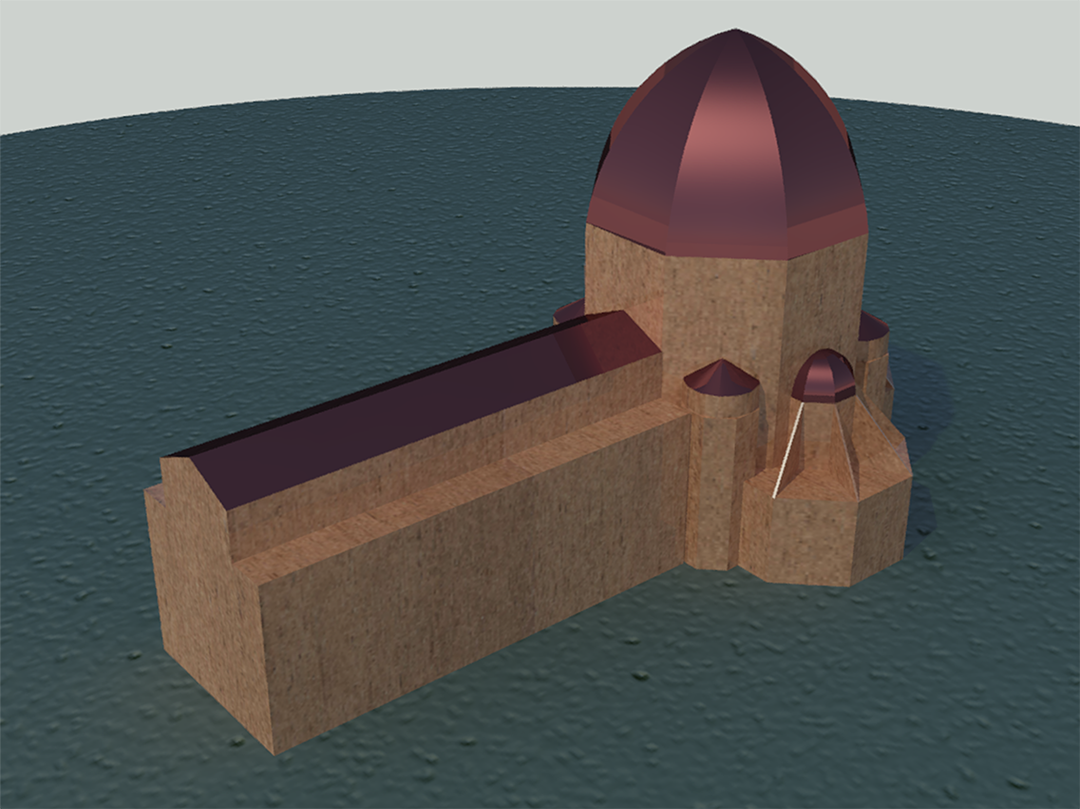

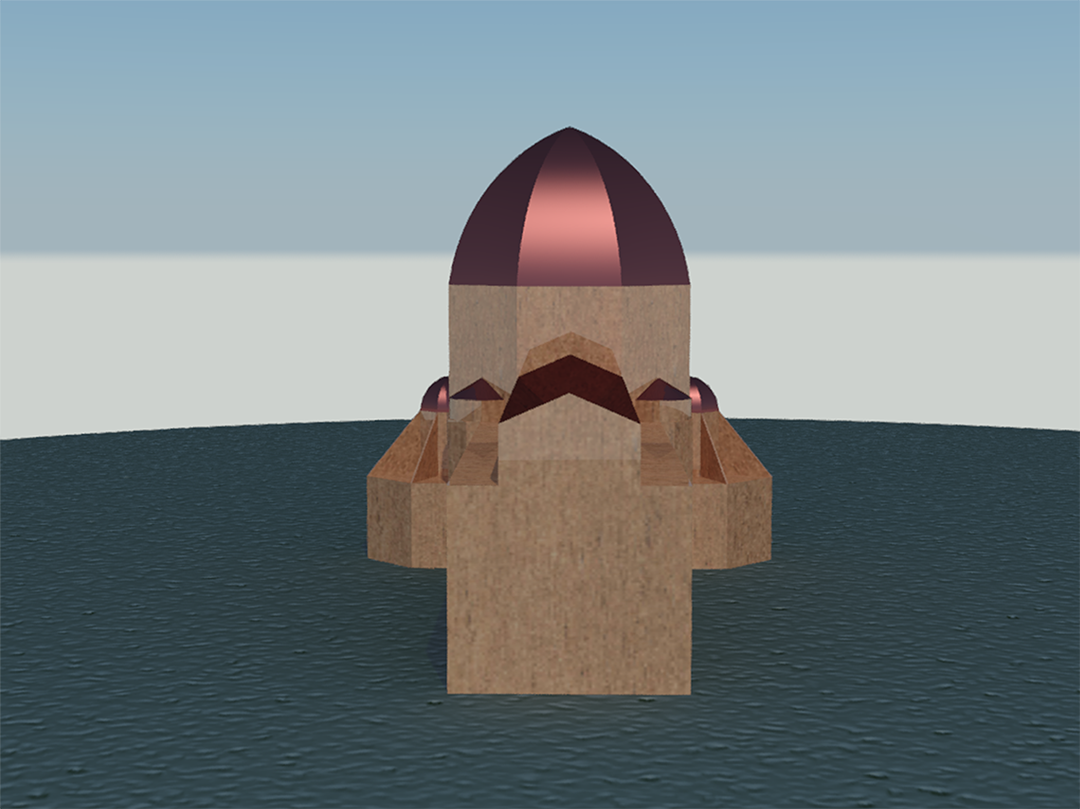

The model that I chose is Duomo di Firenze, formally the Cattedrale di Santa Maria del Fiore in Florence, Italy in the Gothic style to a design of Arnolfo di Cambio. I chose this model because it stands out from its surroundings and is a simple shape but with many details. The materials that I used are wood and copper so that it resembles more of a miniature model of the real church.

Pictures



Complex Model

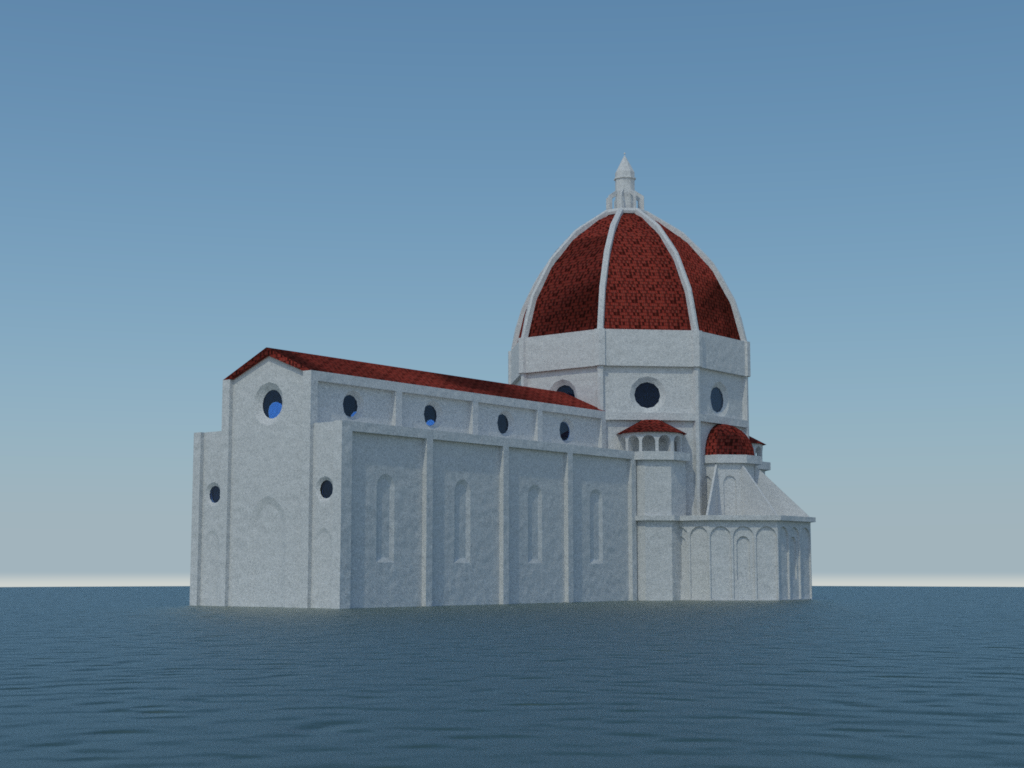

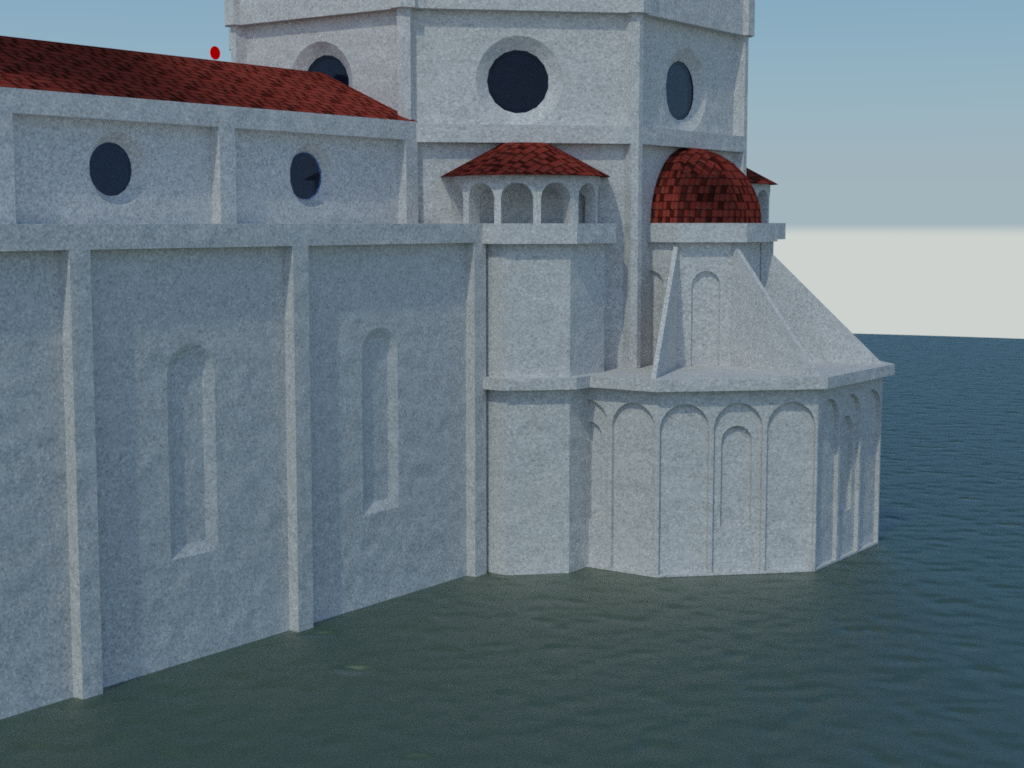

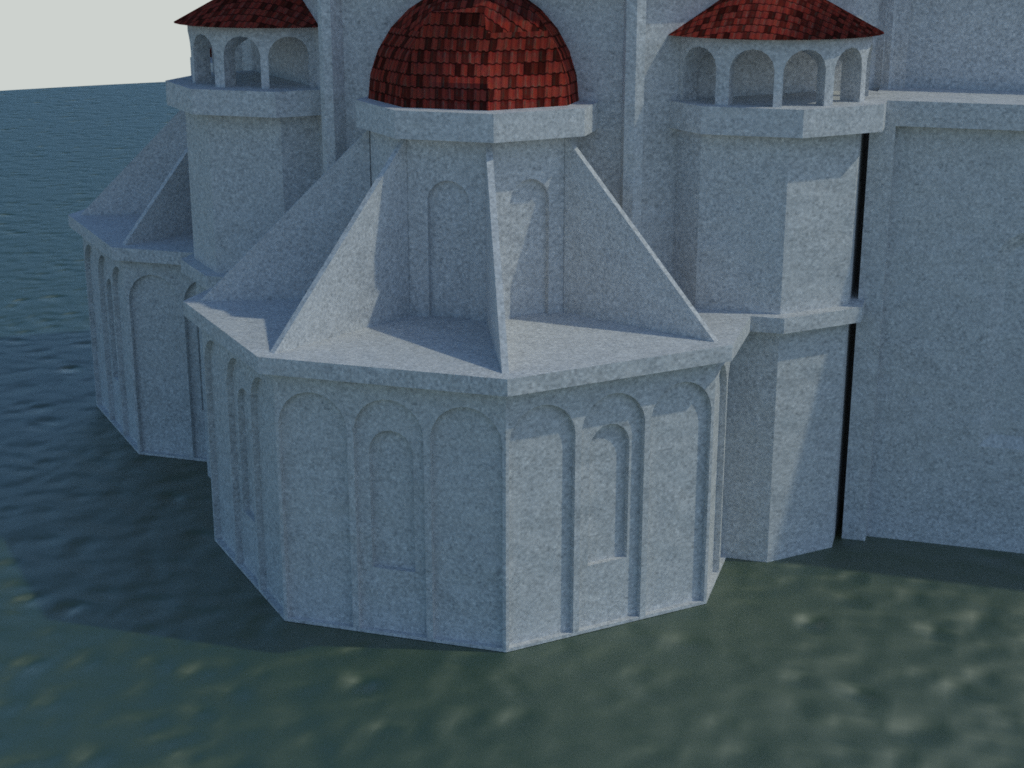

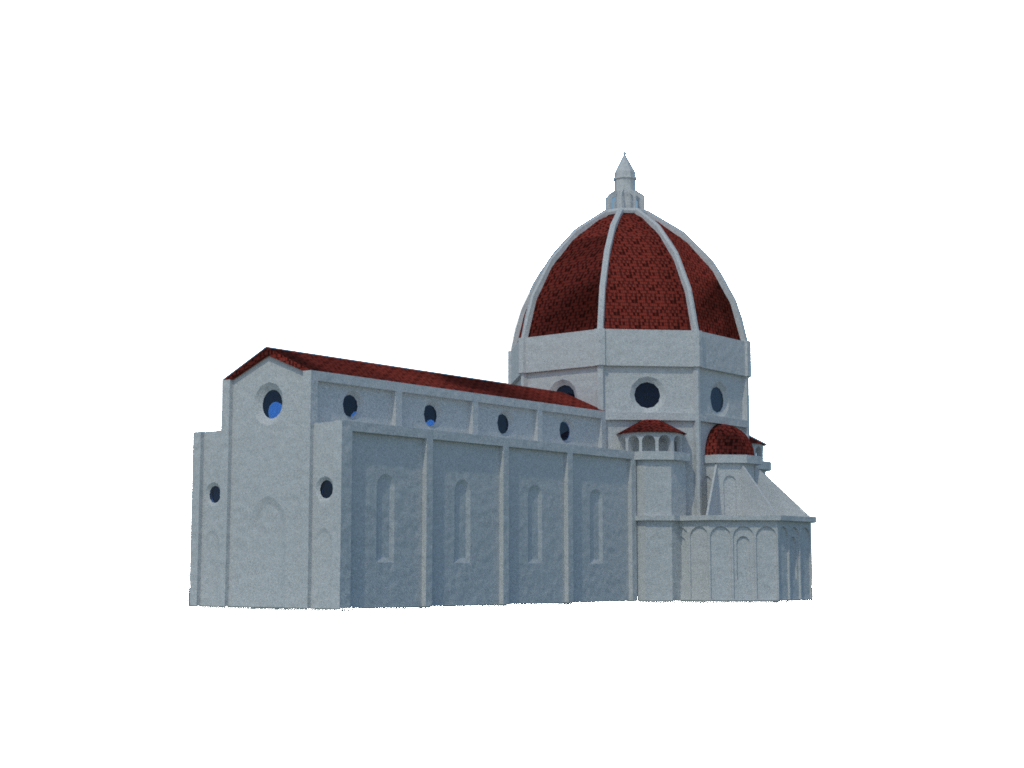

For the complex model I tried recreating the recesses of the church and the emblematic circular windows of its facades. For the materials I used an off-white stone material so that it can have a similar appearance to the original and red tiles for the roofs.

Pictures
