Constructive CAD CE • Modeling in AutoCAD

  BMEEPAG0249 • elective course • 2021-22-2

Olivier Vandeportaele

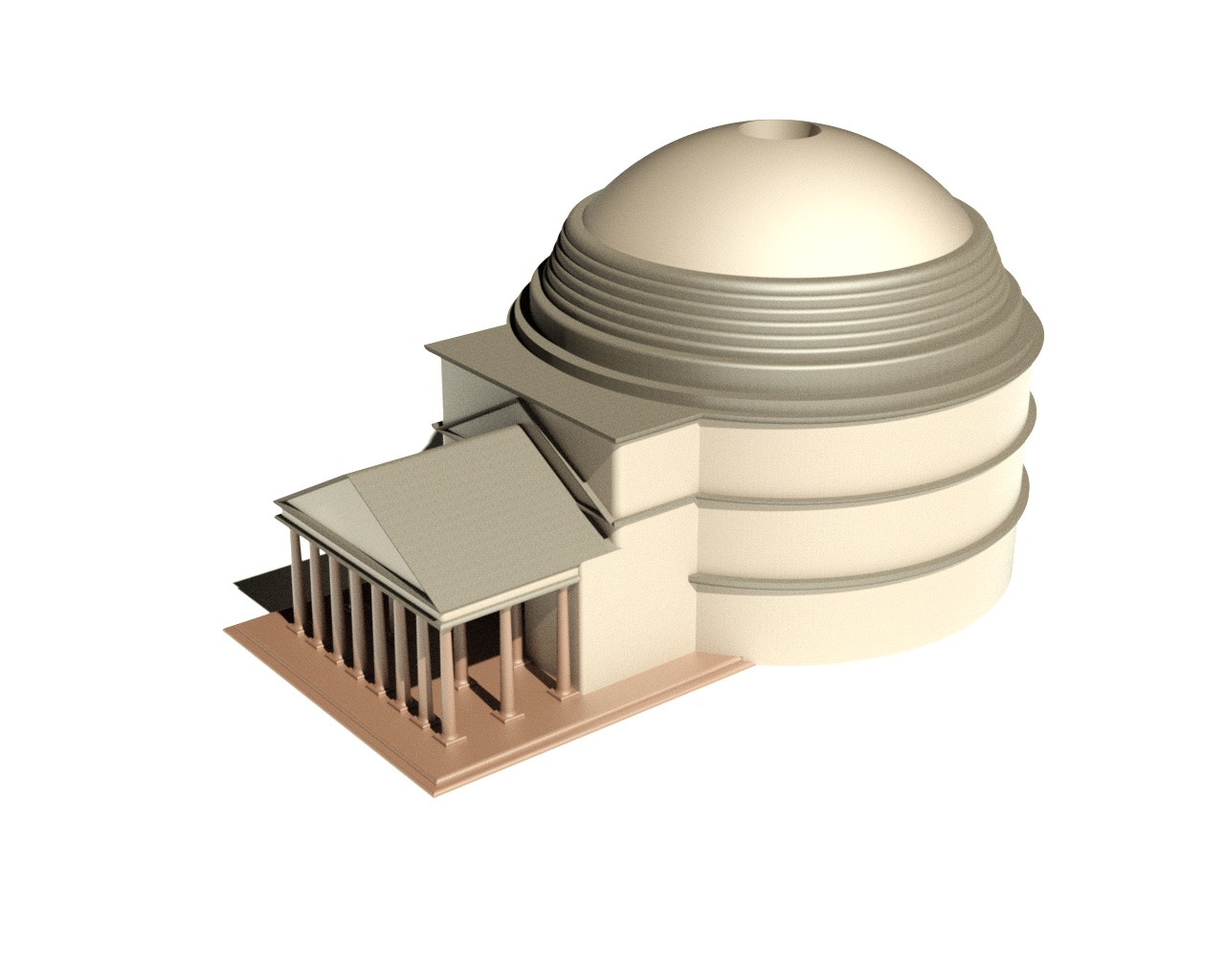

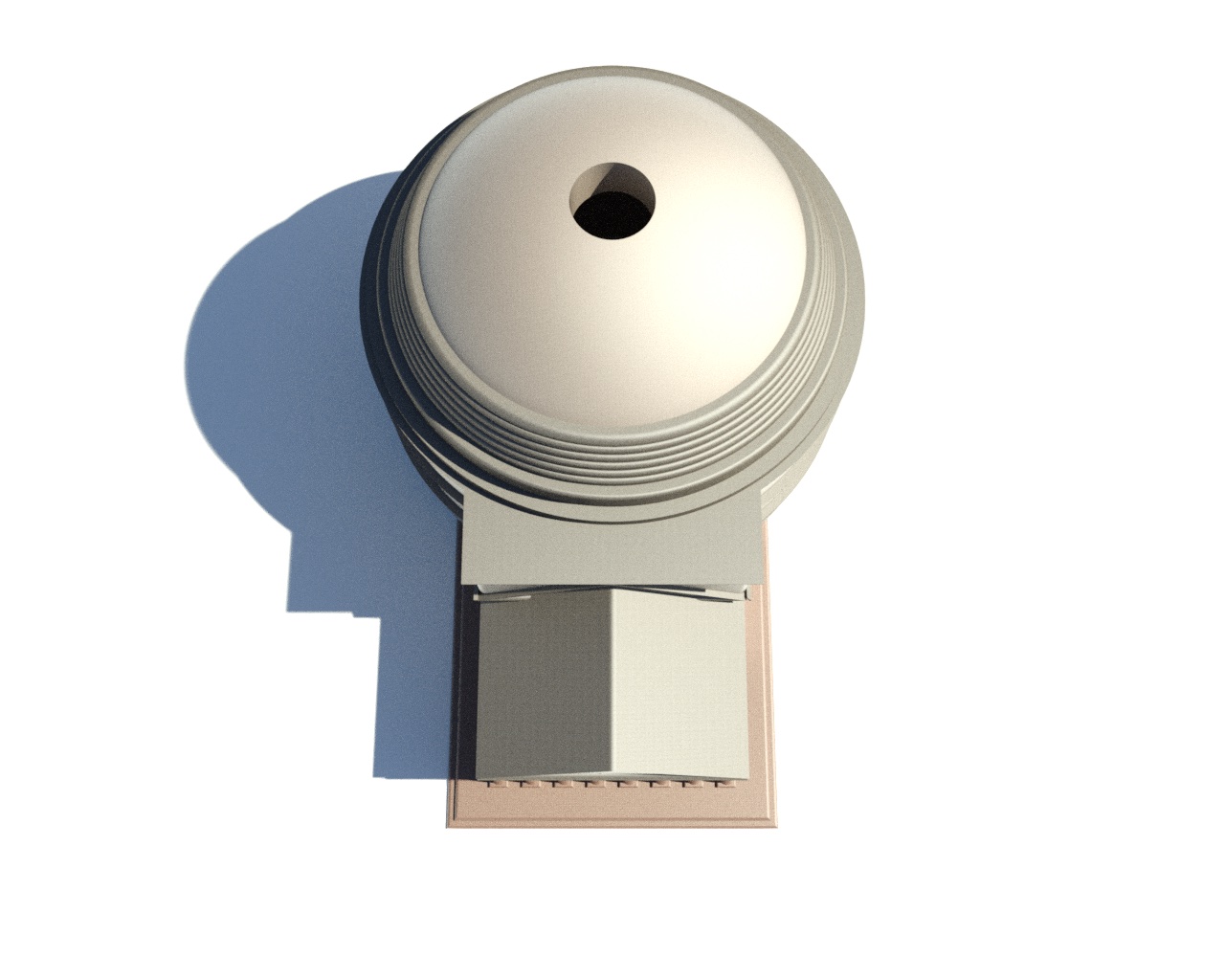

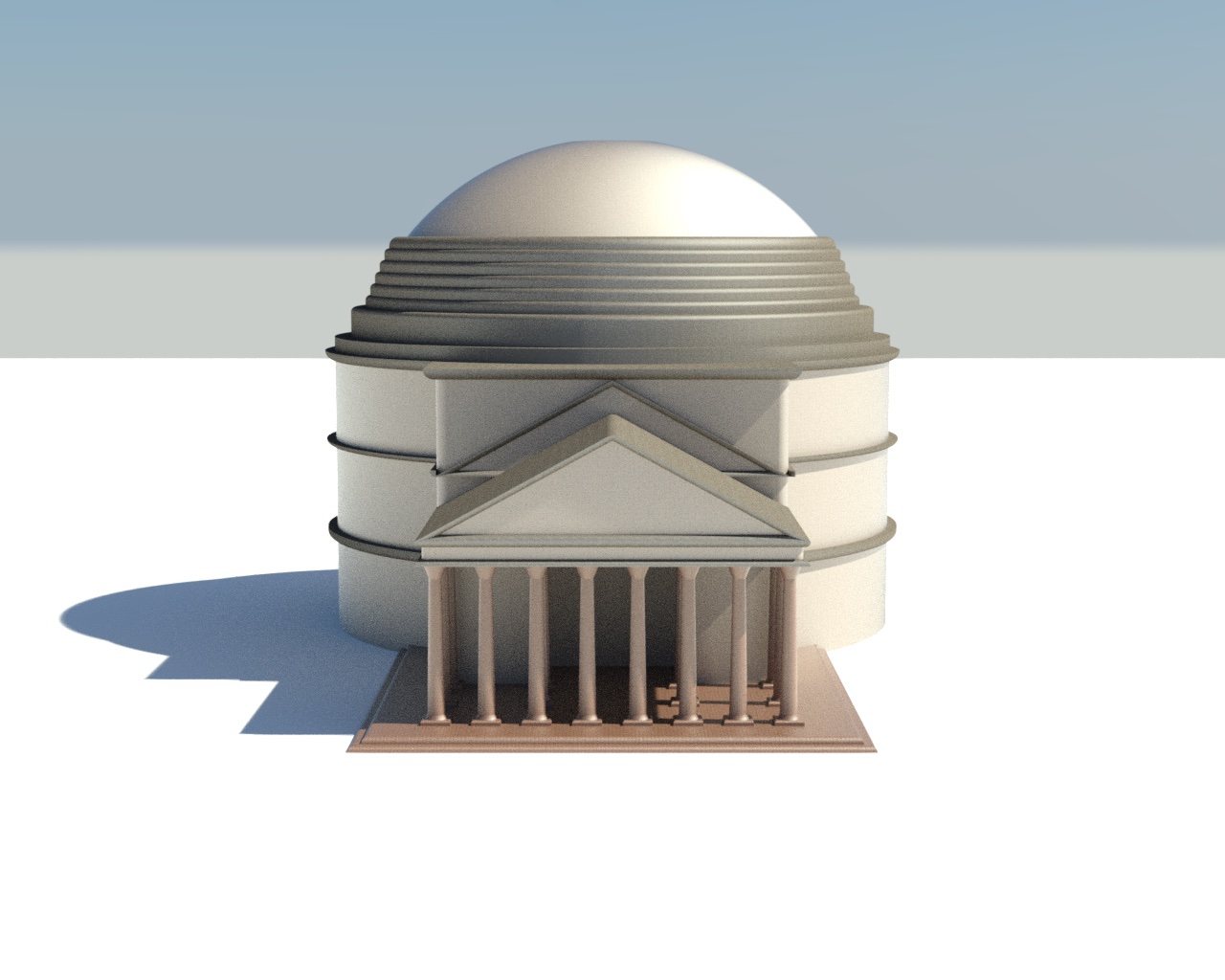

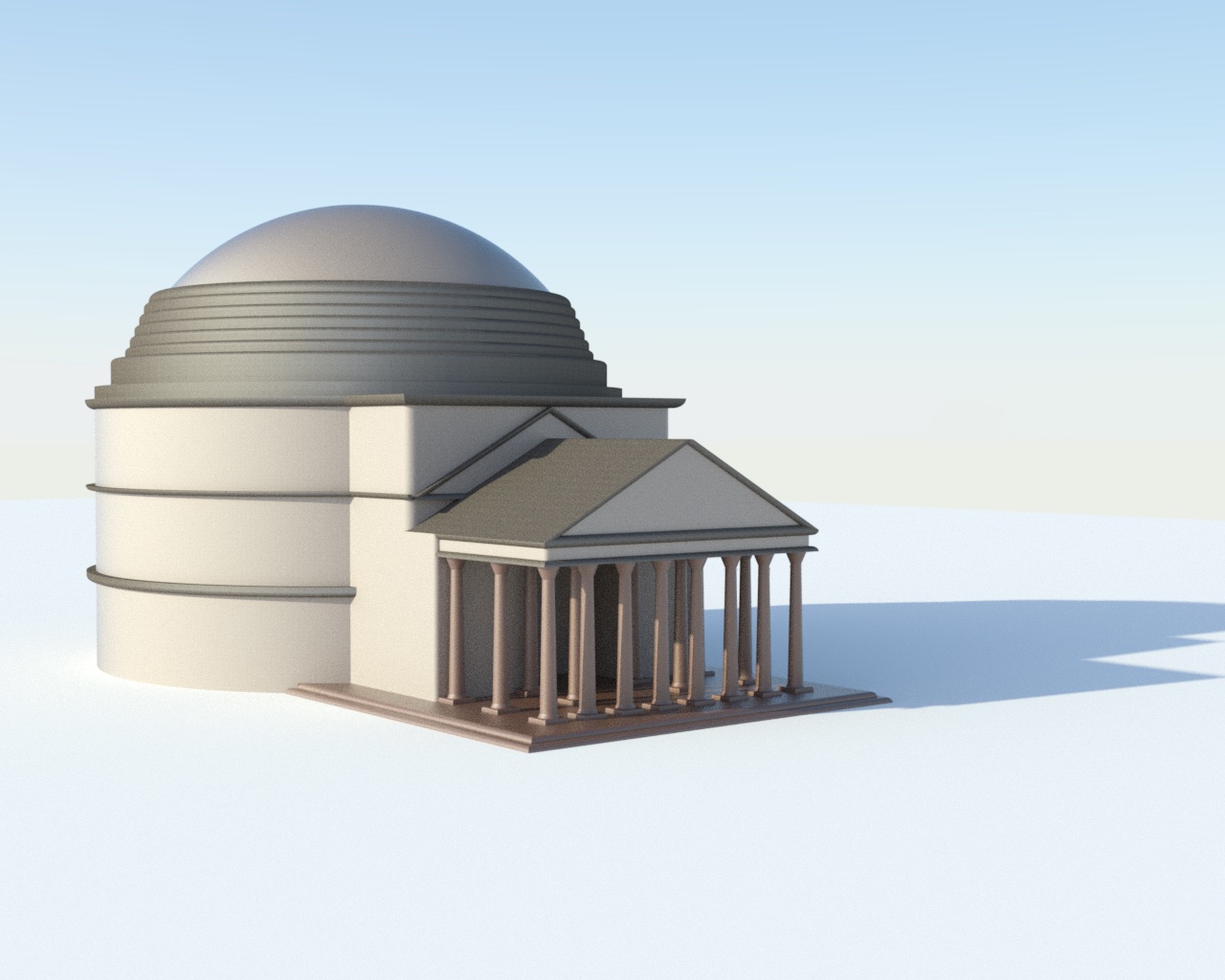

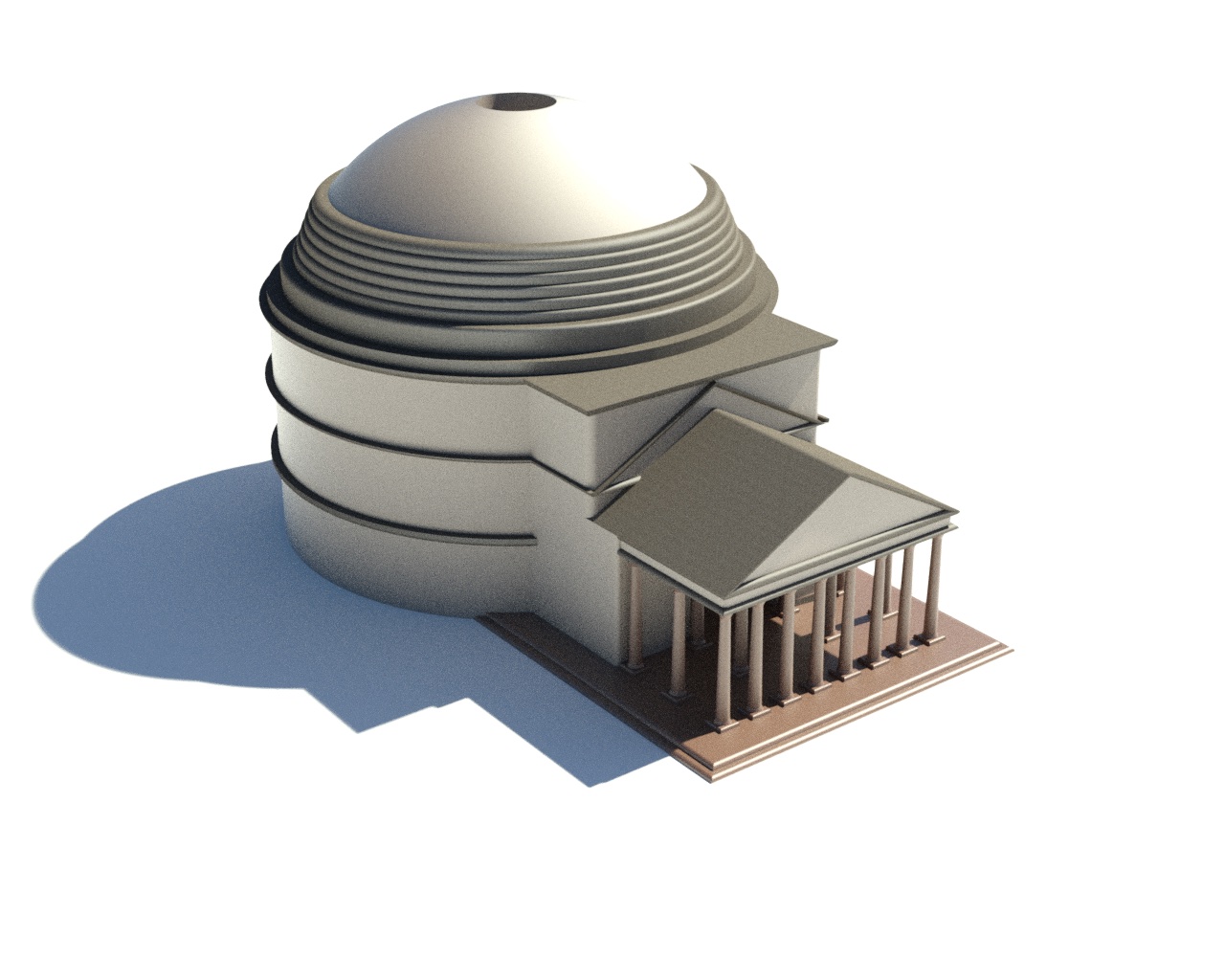

Simple Model

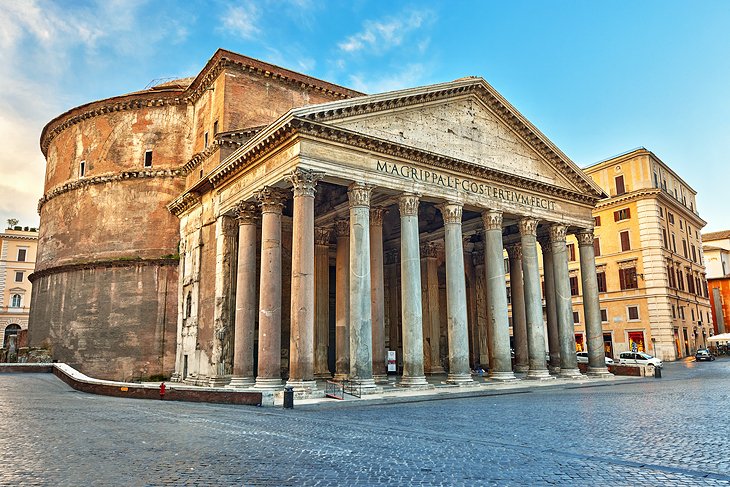

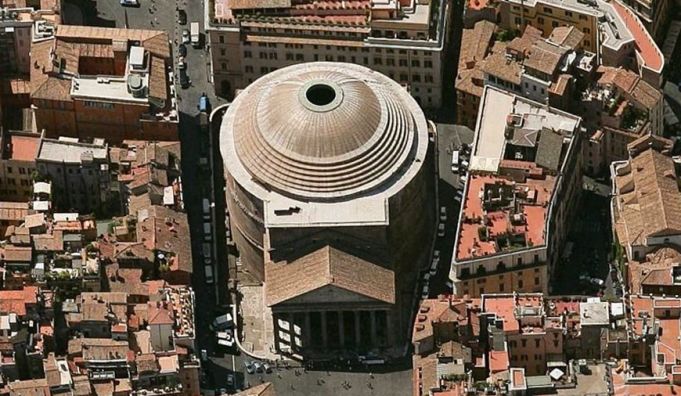

The Pantheon is a former Roman temple and now a catholic church in Rome, Italy. It’s known for the spherical shape of the dome with an oculus that is fully open. The building is cylindrical with a portico of large granite Corinthian columns (eight in the first rank and two groups of four behind) under a pediment. A rectangular vestibule links the porch to the rotunda, which is under a coffered concrete dome, with a central opening (oculus) to the sky. Almost two thousand years after it was built, the Pantheon's dome is still the world's largest unreinforced concrete dome. The height to the oculus and the diameter of the interior circle are the same, 43 metres.

Pictures



Complex Model

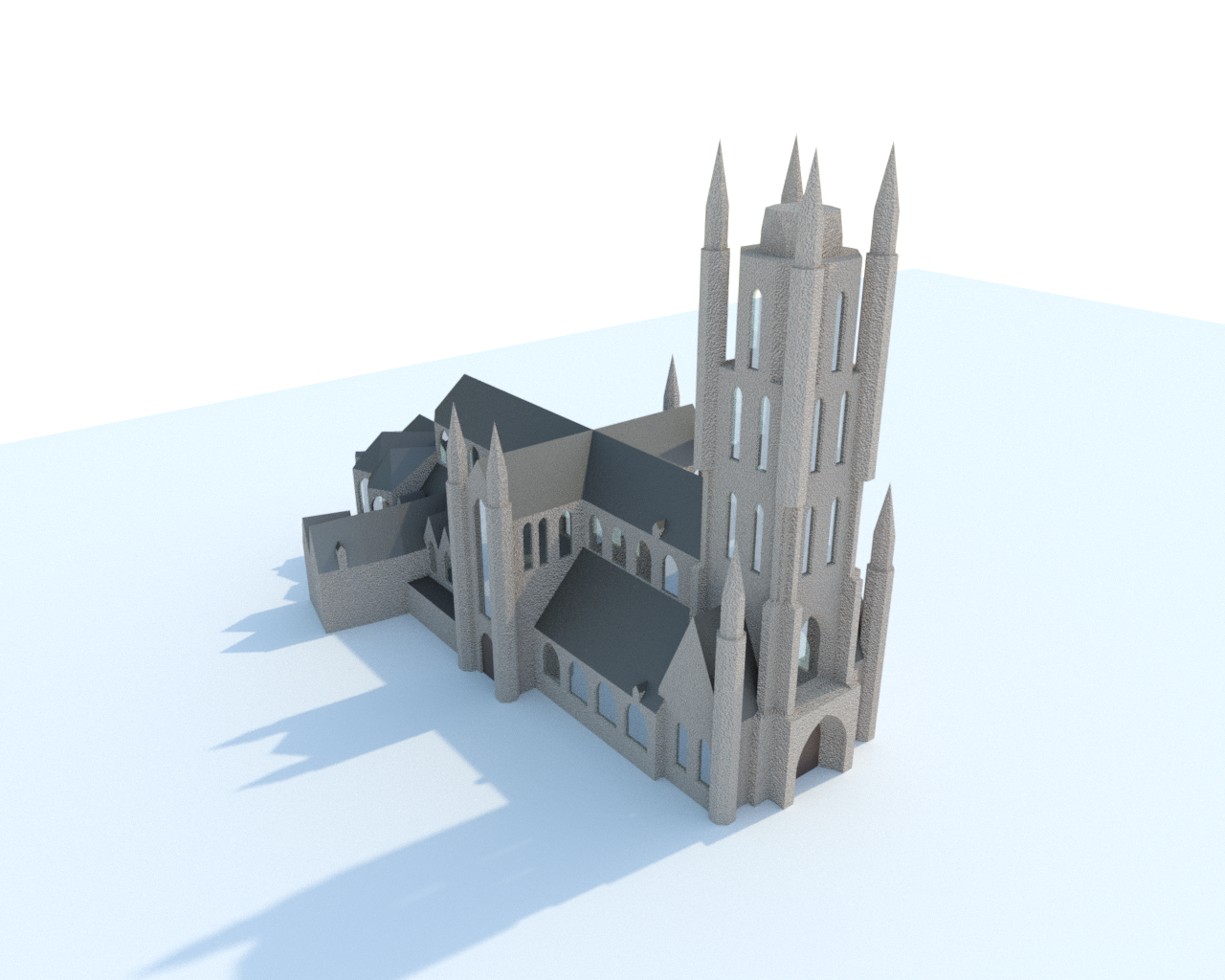

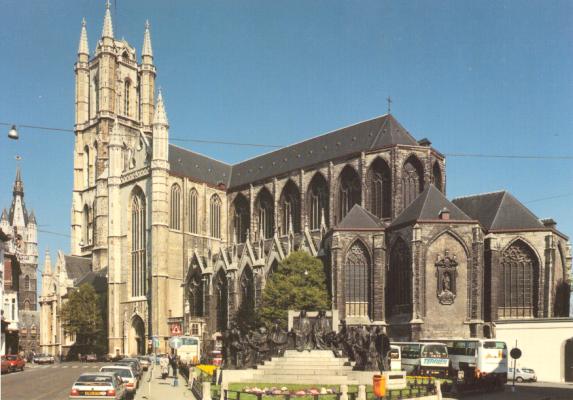

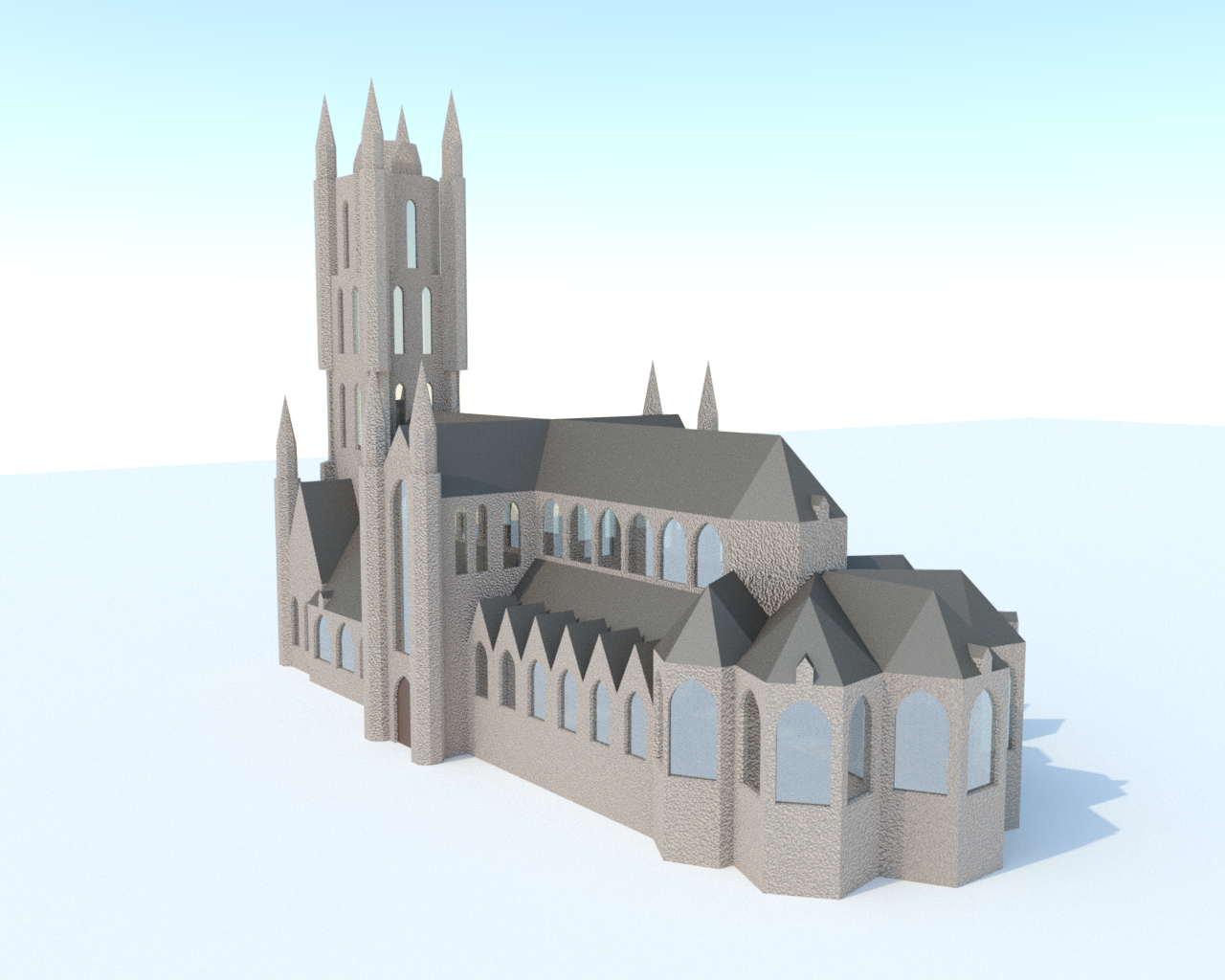

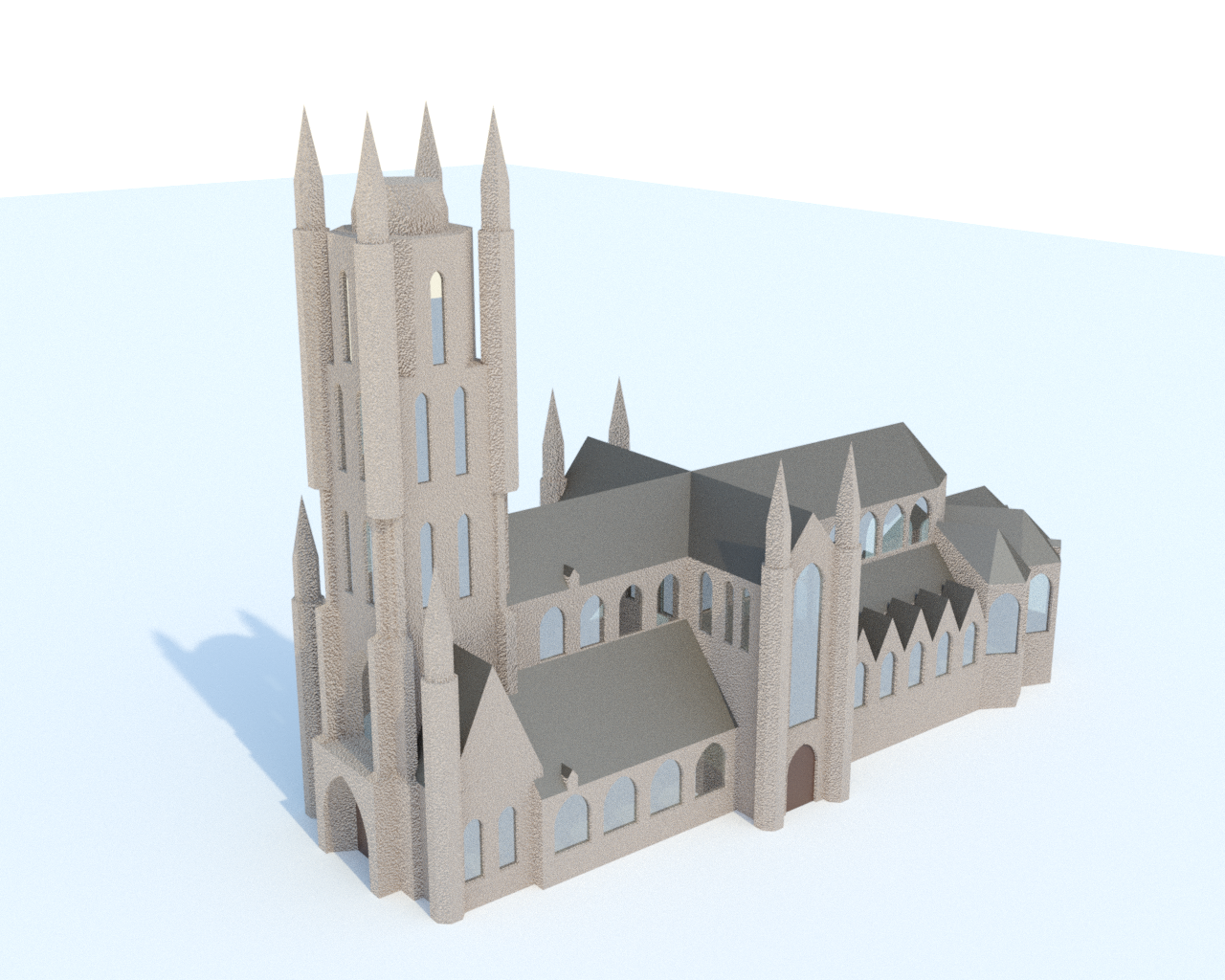

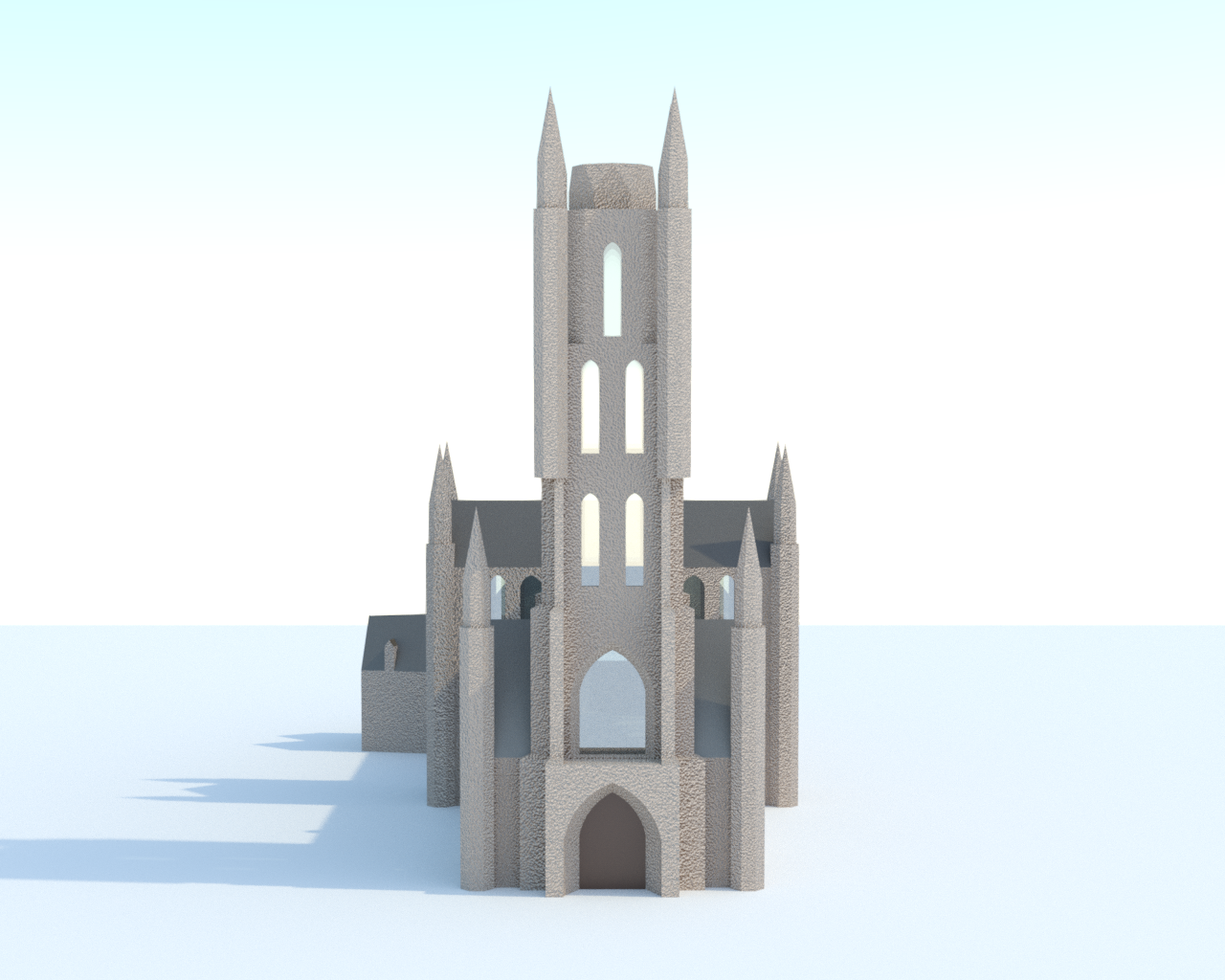

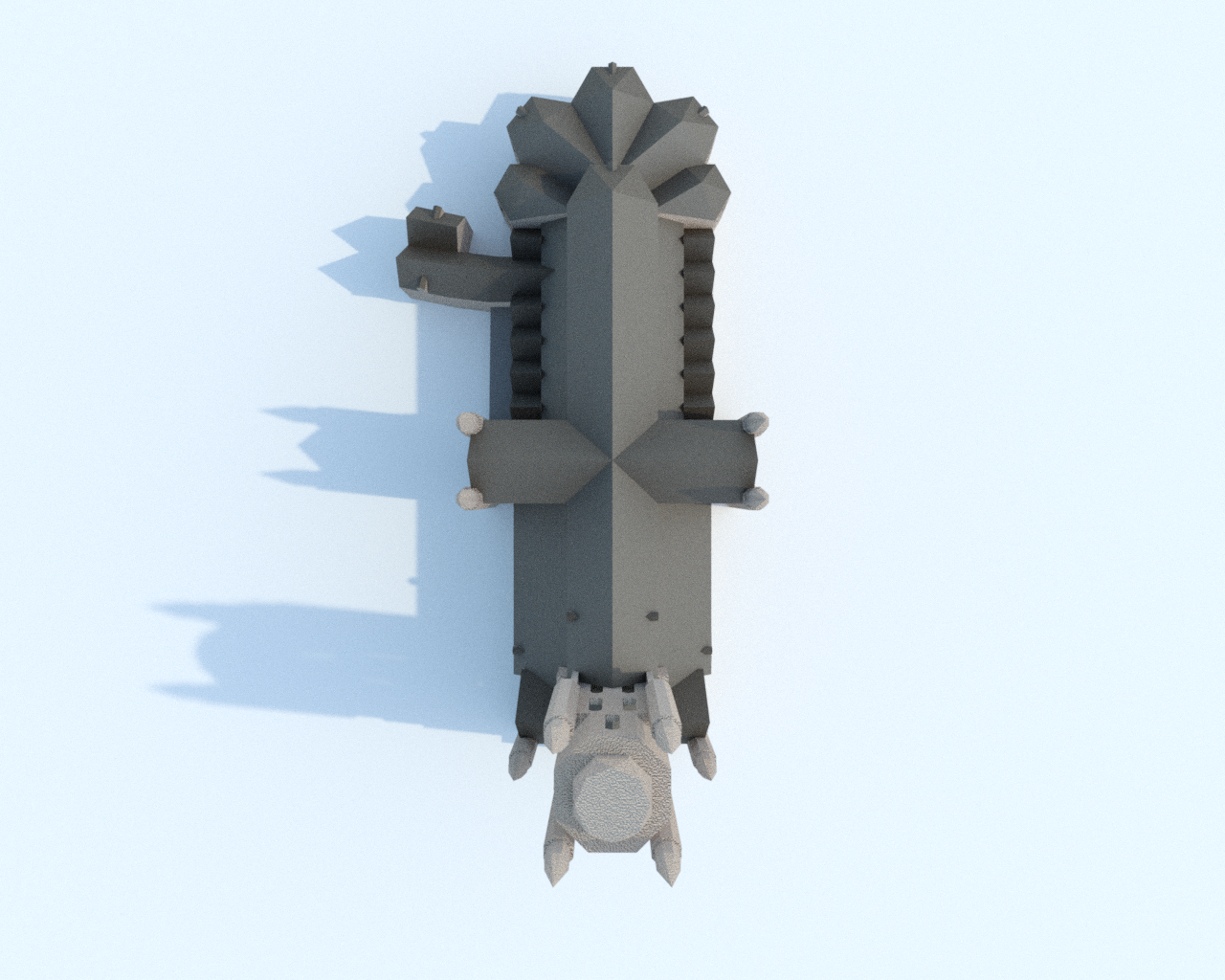

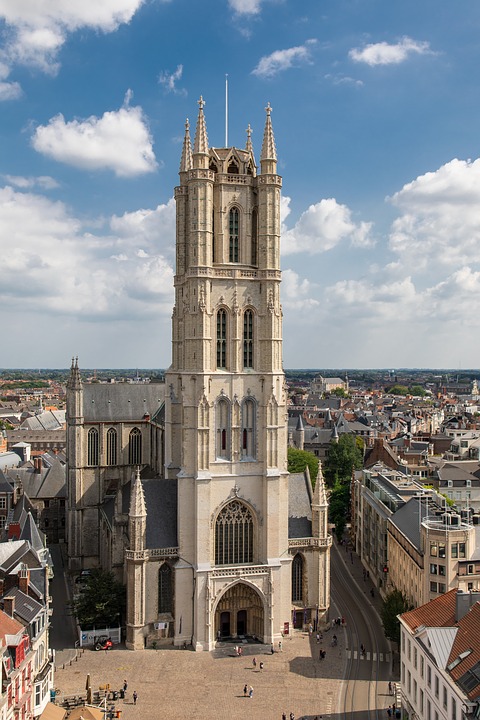

Saint Bavo’s Cathedral, also known as Sint-Baafs Cathedral, is a cathedral of the Catholic Church in Ghent, Belgium. The 89-meter-tall Gothic building is the seat of the Diocese of Ghent and is named for Saint Bavo of Ghent. It contains the well-known Ghent Altarpiece.

Pictures
