Constructive CAD₠

  Modeling in AutoCAD • BMEEPAG0249 • 2024-25-2
Kun Domán

Simple Model

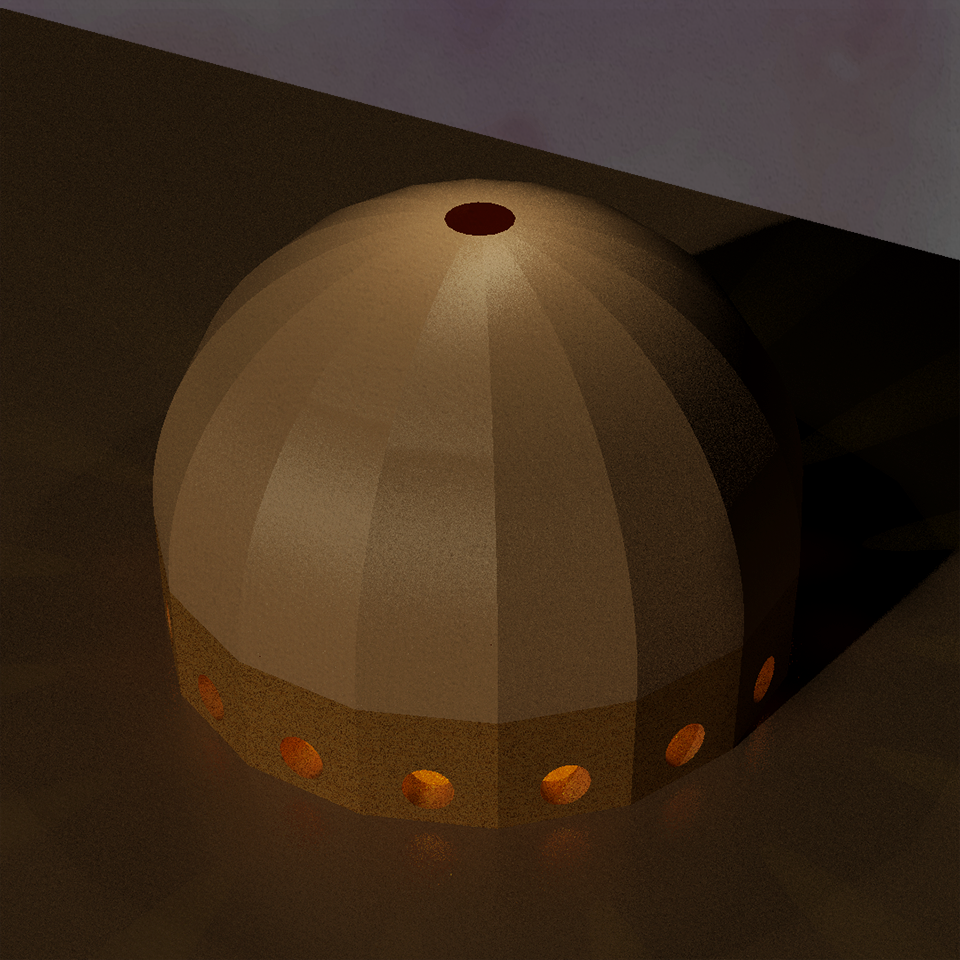

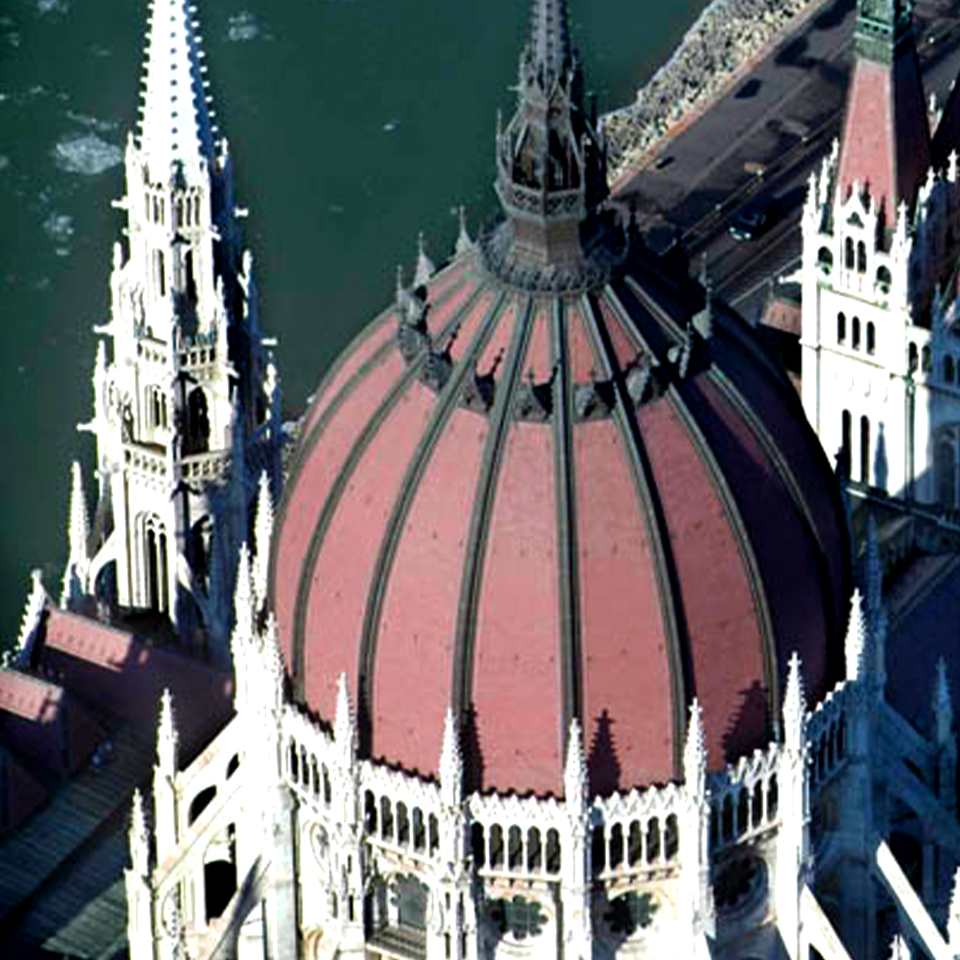

Simple dome model of the Parlament. Intersection of cylinders on a sixteen-sided polygon base.

[ORIGINAL1] [RENDER1-A]

Complex Model

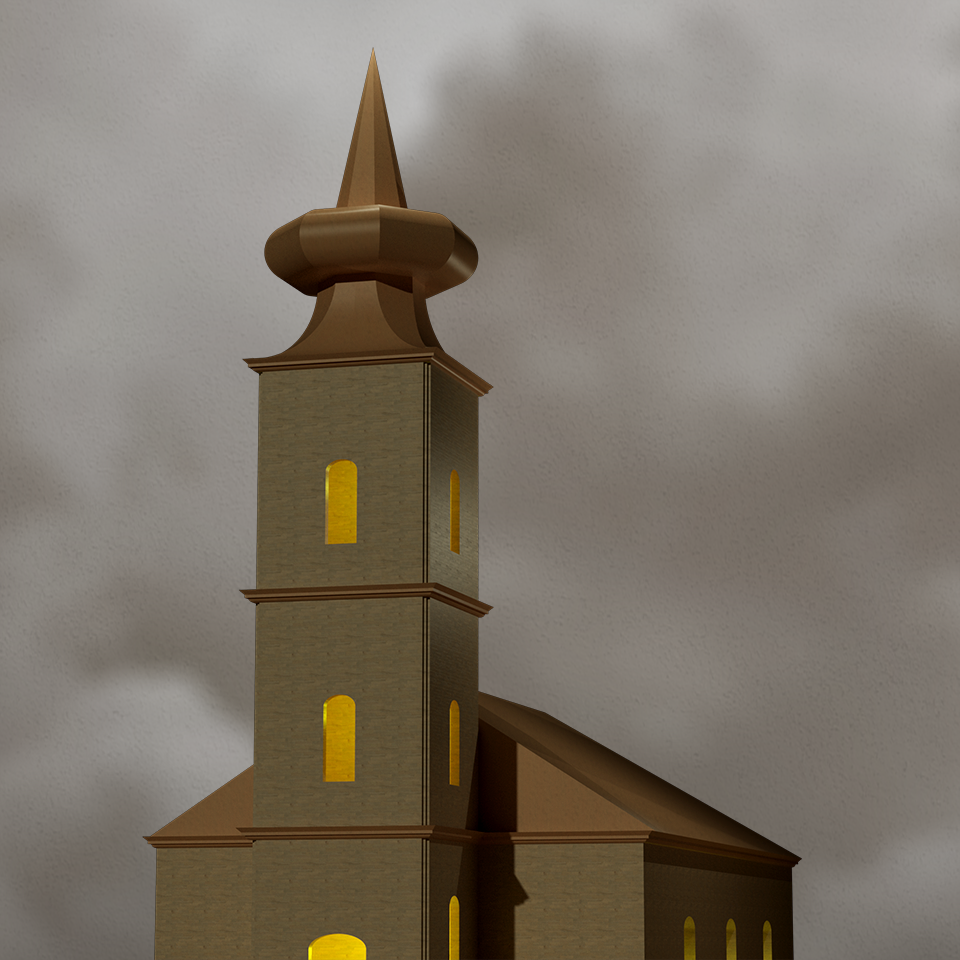

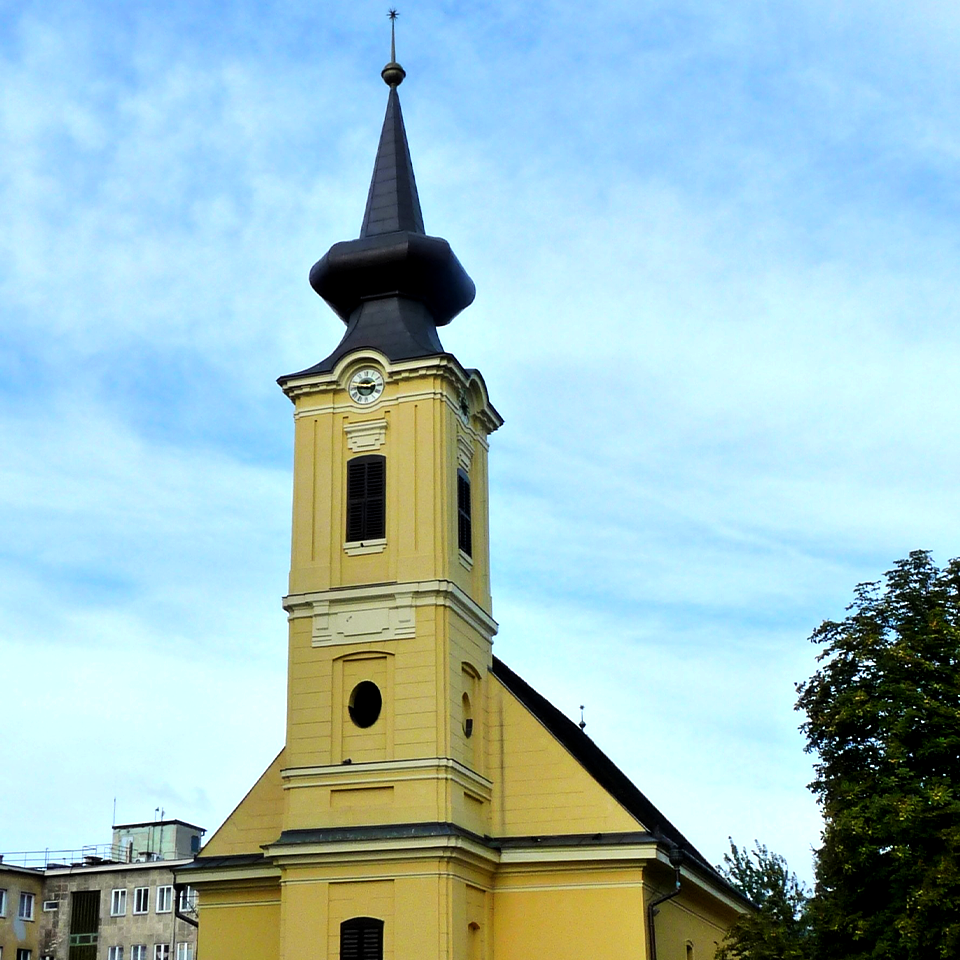

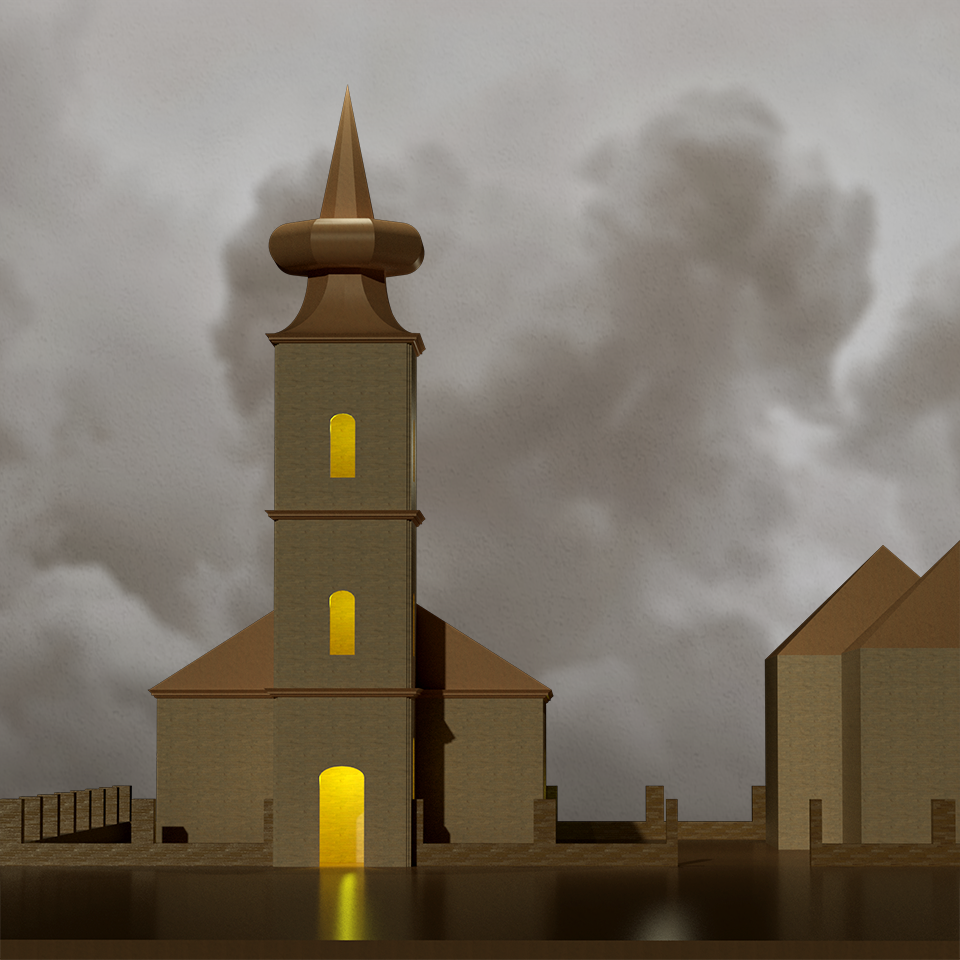

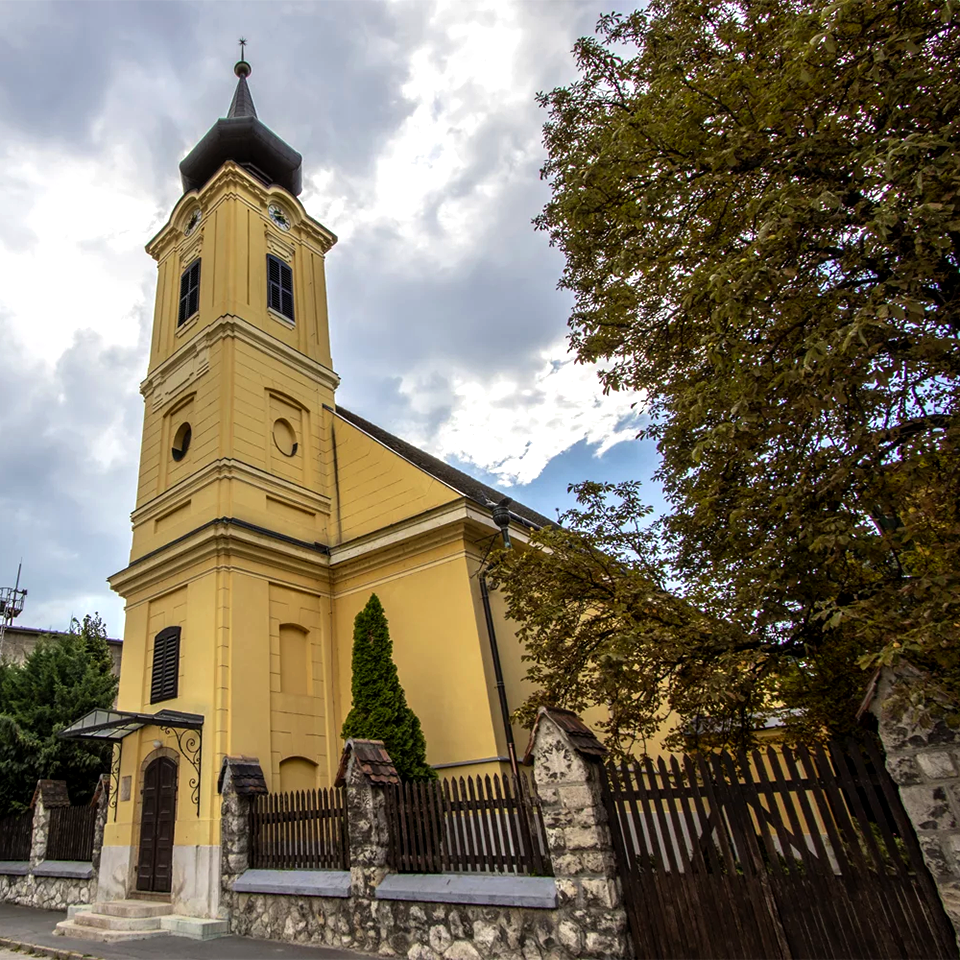

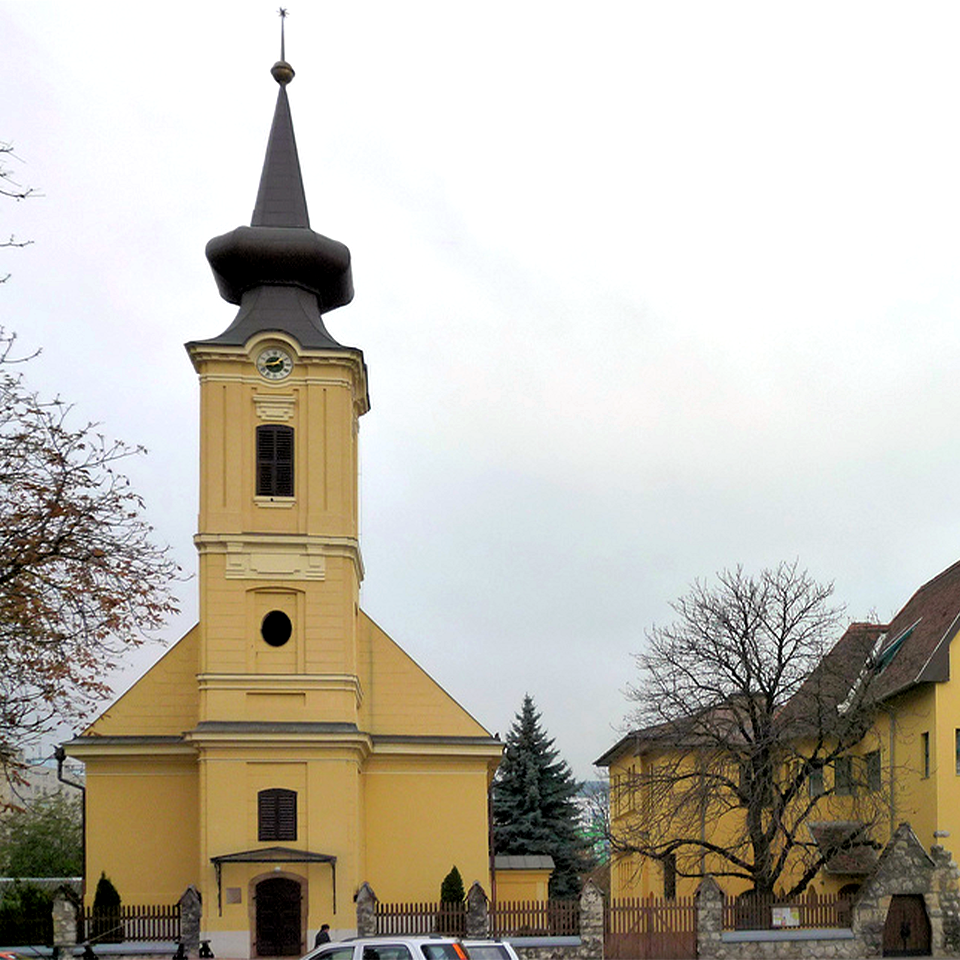

Complex model of a church located in my home town, Óbuda. The lower third of the dome consists of ellyptical surfaces, while the middle is basically a sphere sweeped along the eight sided polygon. Although in the real world there is a slight shortening of the sides I chose to model the intersection with a regular polygon.

[ORIGINAL1] [RENDER1-A] [ORIGINAL2] [RENDER1-B] [ORIGINAL3] [RENDER1-C]
