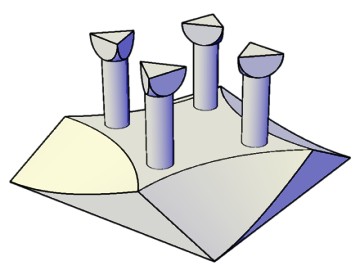

  Examples of a previous 3D test.

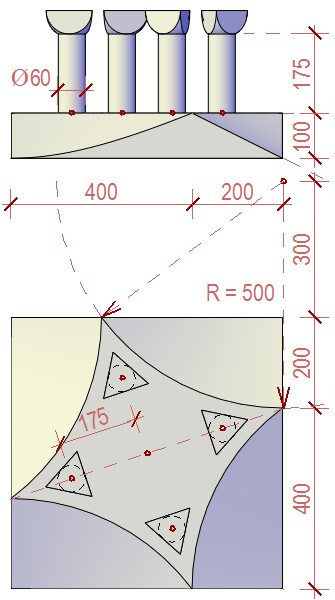

•  Create a Layout containing the plan and front views of the model in a scale of 1:100 (with dimensions), and a horizontal perspective view also!

•  The column should be defined as a block.
